Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | KTP600 Basic color PN |
| Display | TFT, 256 colors |
| Image resolution | 320 pixel × 240 pixel |
| Operation | Key/touch operation; analog-resistive touch screen |
| Function keys | 6 |
| Industrial Ethernet interfaces | 1 |
| Protocols | PROFINET; EtherNet/IP; TCP/IP; DHCP; SNMP; DCP; LLDP |

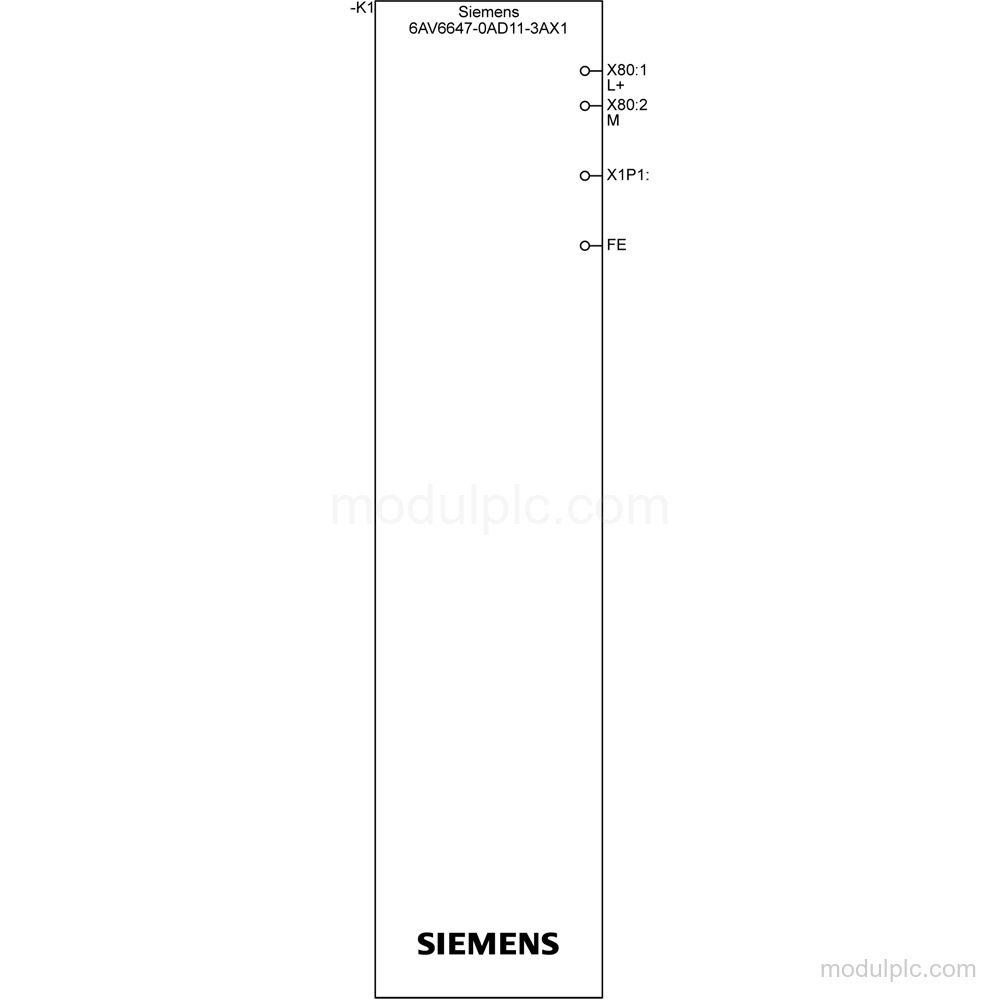

| Supply | 24 V DC; permissible range 19.2 V to 28.8 V |
| Power input, typ. | 9 W |

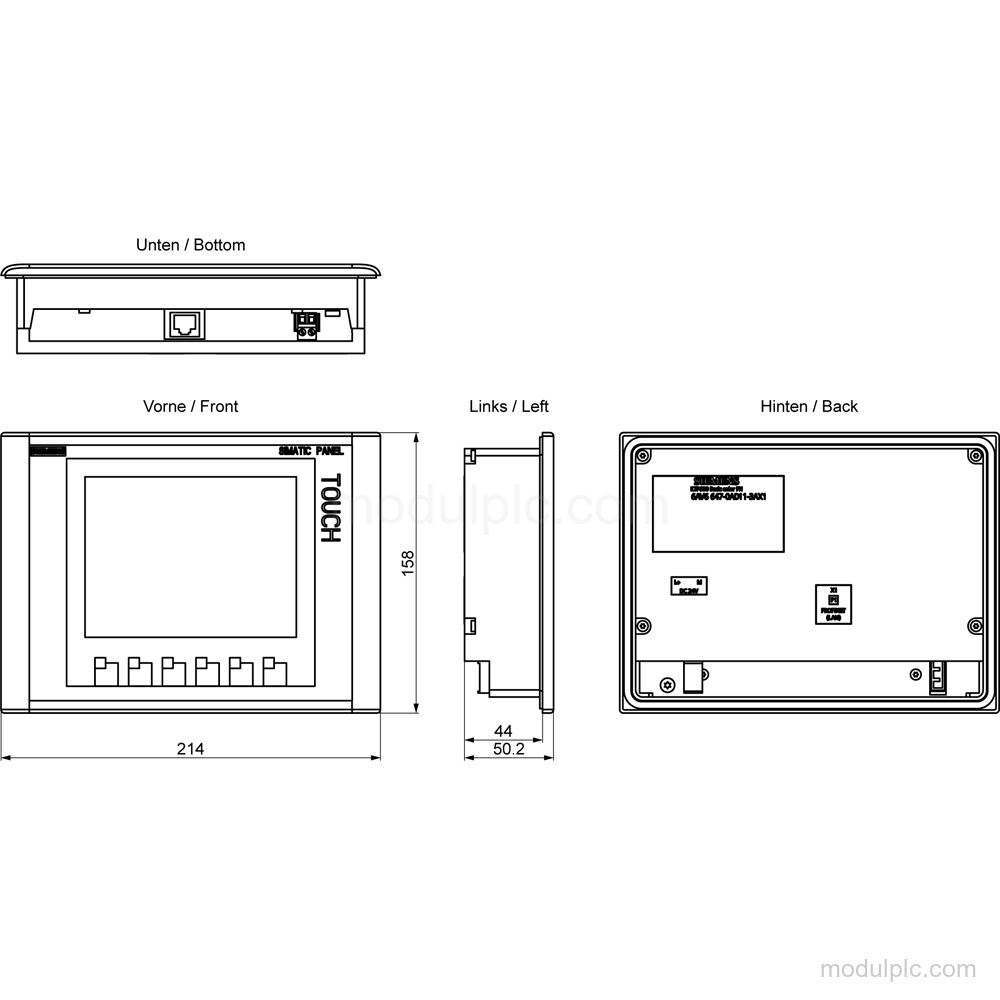

| Mounting | Vertical; portrait or landscape format possible |
| Protection | IP65 at the front; IP20 at the rear |
Applications
- Operator key and touch input: The panel provides key/touch operation through 6 function keys and numeric and alphanumeric onscreen keyboards.
- HMI display operation: The TFT display presents 320 pixel × 240 pixel images in 256 colors.
Key Features
- Key/touch operation: The panel has key/touch operation, 6 function keys, a numeric onscreen keyboard, and an alphanumeric onscreen keyboard.
- TFT display: The TFT display has 256 colors and 320 pixel horizontal by 240 pixel vertical image resolution.
- Analog-resistive touch screen: The touch screen is analog-resistive and supports portrait or landscape mounting.
- PROFINET interface: The panel has 1 industrial Ethernet interface and supports PROFINET, EtherNet/IP, TCP/IP, DHCP, SNMP, DCP, and LLDP.
- 24 V DC supply: The rated DC supply is 24 V, with a permissible range from 19.2 V to 28.8 V. Typical active power input is 9 W.
- Front protection: Protection is IP65 at the front, IP20 at the rear, with Enclosure Type 4 and Enclosure Type 4x at the front.
Frequently Asked Questions
1. What operation does the Siemens 6AV6647-0AD11-3AX1 support?
It supports key/touch operation, with 6 function keys and numeric and alphanumeric onscreen keyboards.
2. What display does the KTP600 Basic Color PN have?
It has a TFT display with 256 colors and 320 pixel × 240 pixel image resolution.
3. Which interfaces and protocols are supported?
It has 1 industrial Ethernet interface and supports PROFINET, EtherNet/IP, TCP/IP, DHCP, SNMP, DCP, and LLDP.
4. What supply does this panel require?
The rated supply is 24 V DC, with a permissible range from 19.2 V to 28.8 V.
5. What is the front protection configuration?
The front has IP65 protection and Enclosure Type 4 and Enclosure Type 4x; the rear has IP20 protection.
