Product Overview
Technical Summary
| Parameter | Value |
|---|---|

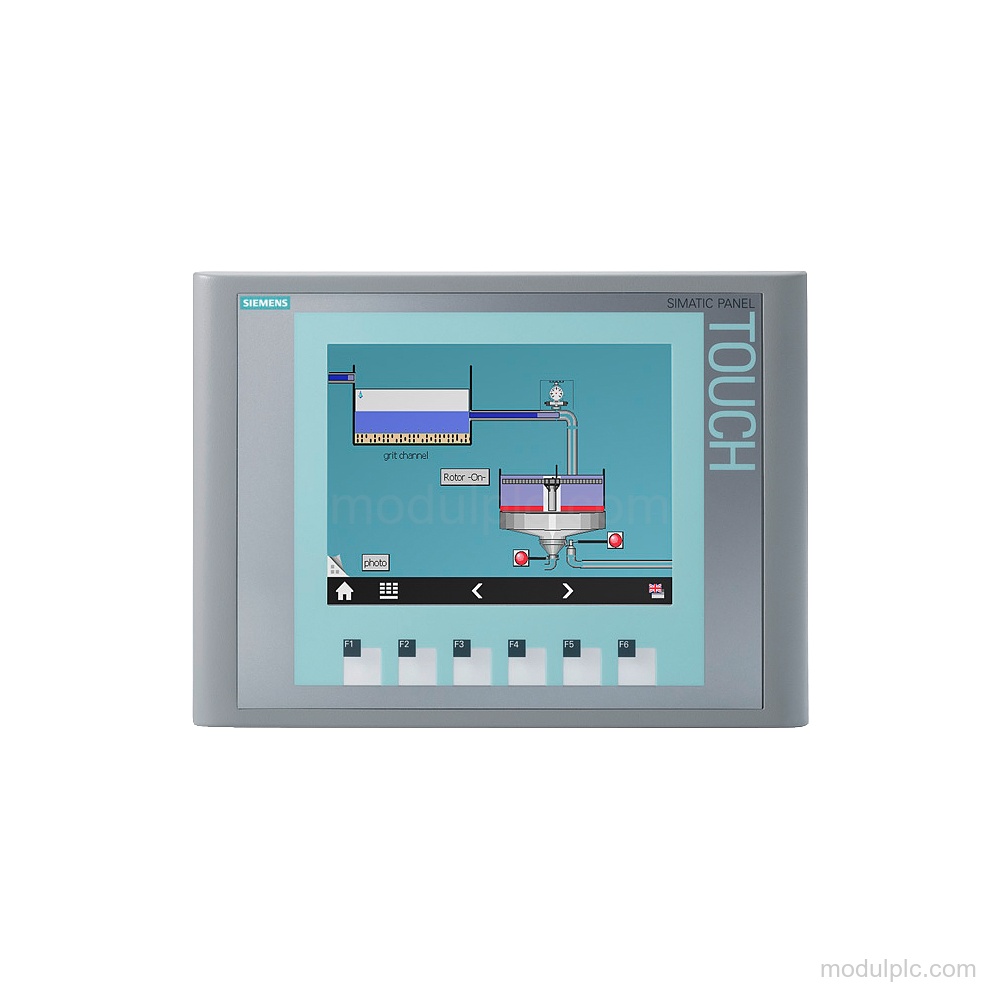

| Product type | KTP600 Basic color DP |
| Display | TFT, 256 colors |
| Resolution | 320 pixel x 240 pixel |
| Operation | 6 function keys; analog-resistive touch; onscreen numeric and alphanumeric keyboards |
| Interfaces | 1 RS 485; 1 RS 422 |
| Protocols | MPI; PROFIBUS; MODBUS RTU |

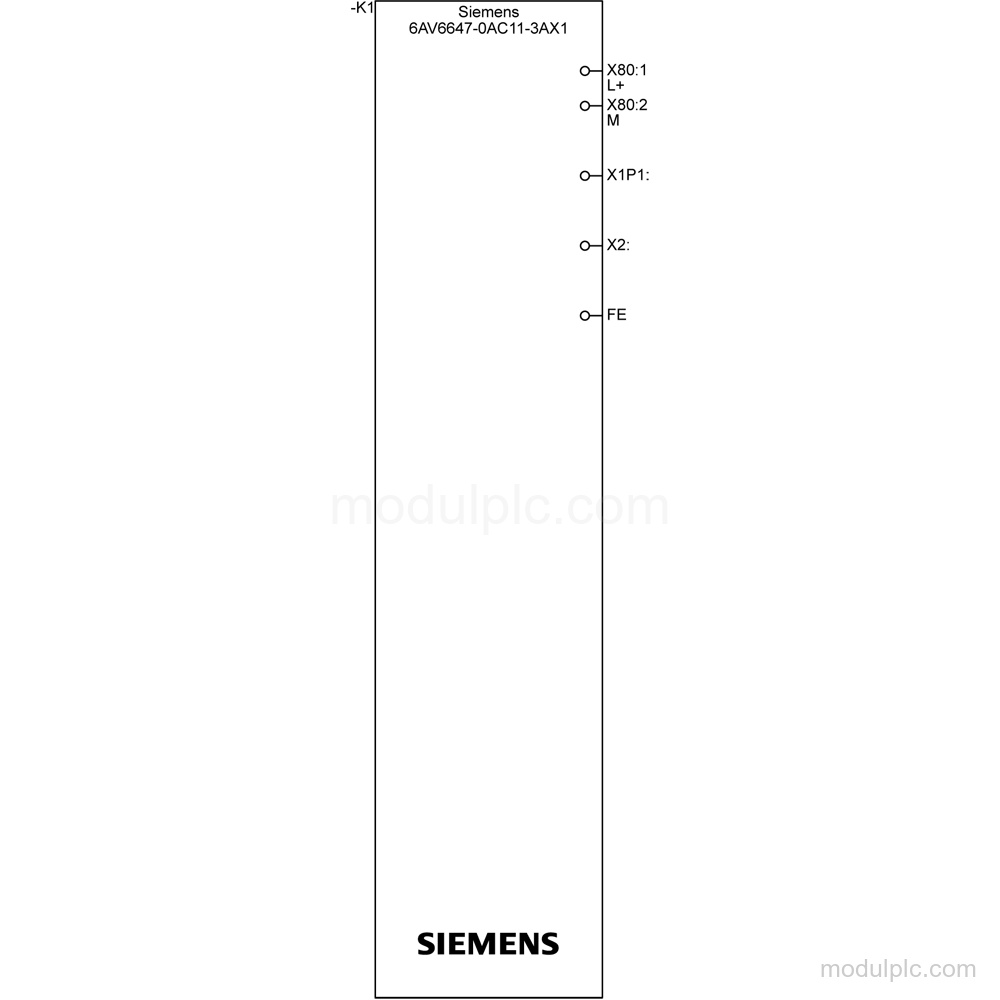

| Supply | 24 V DC; permissible range 19.2 V to 28.8 V |
| Current consumption | 0.35 A, rated value |
| Active power input | 9 W, typ. |

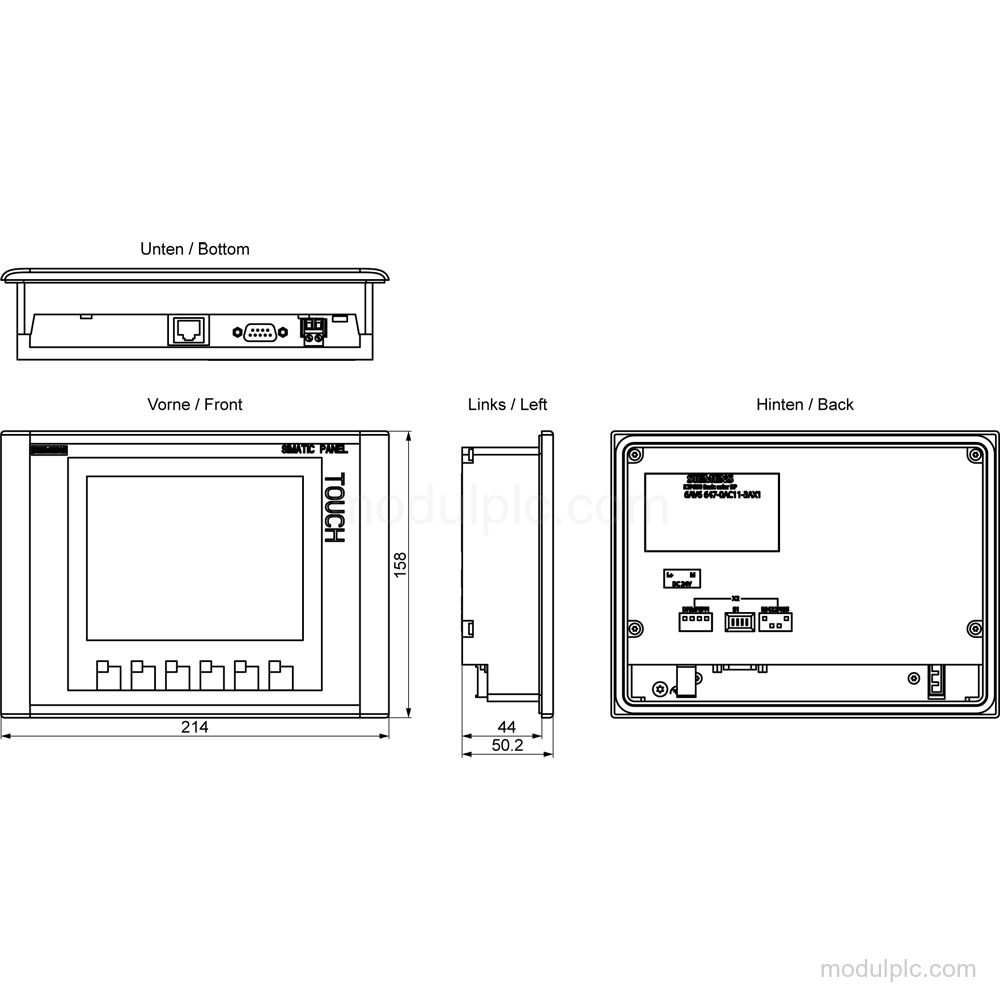

| Mounting | Vertical; portrait or landscape possible |
| Protection | IP65 at the front; IP20 at the rear |
| Product lifecycle | Product cancellation |
Applications
- Operator display and input: The panel provides operator display and input through its TFT display, function keys, numeric and alphanumeric onscreen keyboards, and analog-resistive touch screen.
Key Features
- Display and operation: TFT display with 256 colors, 320 pixel horizontal resolution, 240 pixel vertical resolution, 6 function keys, numeric and alphanumeric onscreen keyboards, and analog-resistive touch operation.
- MPI and PROFIBUS DP: The panel has 1 RS 485 interface and 1 RS 422 interface. MPI and PROFIBUS are supported; PROFINET, TCP/IP, and EtherNet/IP are not supported.
- 24 V DC supply: Rated supply voltage: 24 V DC. Permissible range: 19.2 V to 28.8 V. Current consumption, rated value: 0.35 A; active power input, typ.: 9 W.
- Mounting options: Vertical mounting is supported. Portrait and landscape mounting are possible. The maximum permissible angle of inclination without external ventilation is 35°.
- Front and rear protection: Degree of protection: IP65 at the front and IP20 at the rear. The front has Enclosure Type 4 and Enclosure Type 4x.
- Configuration software: Configurable as of WinCC flexible 2008 SP2 Compact, WinCC Basic V11, or STEP 7 Basic V11. The product contains open-source software provided free of charge; see enclosed CD.
Frequently Asked Questions
1. What display and operator controls does the KTP600 Basic Color DP have?
It has a TFT display with 256 colors and 320 pixel x 240 pixel resolution, 6 function keys, numeric and alphanumeric onscreen keyboards, and analog-resistive touch operation.
2. Which interfaces and protocols are supported?
It has 1 RS 485 interface and 1 RS 422 interface. MPI, PROFIBUS, and MODBUS RTU are supported.
3. What supply does the panel require?
The rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V.
4. How can the panel be mounted and protected?
Mounting is vertical, with portrait and landscape formats possible. Protection is IP65 at the front and IP20 at the rear.
5. What should be verified before requesting a quote?
Verify the required configuration software version, interface and protocol requirements, mounting format, and the 24 V DC supply range.
