Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | KTP600 Basic mono PN |
| Operation | Key/touch operation |
| Display | STN, 4 grayscale levels, 320 pixel × 240 pixel resolution |
| Function keys | 6 |
| Industrial Ethernet interfaces | 1 |
| Protocols | PROFINET; EtherNet/IP; TCP/IP; DHCP; SNMP; DCP; LLDP |
| Supply | 24 V DC; permissible range 19.2 V to 28.8 V |
| Current consumption | 0.24 A rated value |
| Mounting | Vertical; portrait or landscape format; maximum permissible angle of inclination 35° without external ventilation |
| Protection | IP65 at the front; IP20 at the rear |
| Lifecycle | Product cancellation |
Key Features
- Key/touch operation: Has 6 function keys, numeric and alphanumeric onscreen keyboards, and an analog-resistive touch screen.
- STN display: Has a 4-level grayscale STN display with 320 pixel horizontal and 240 pixel vertical image resolution.

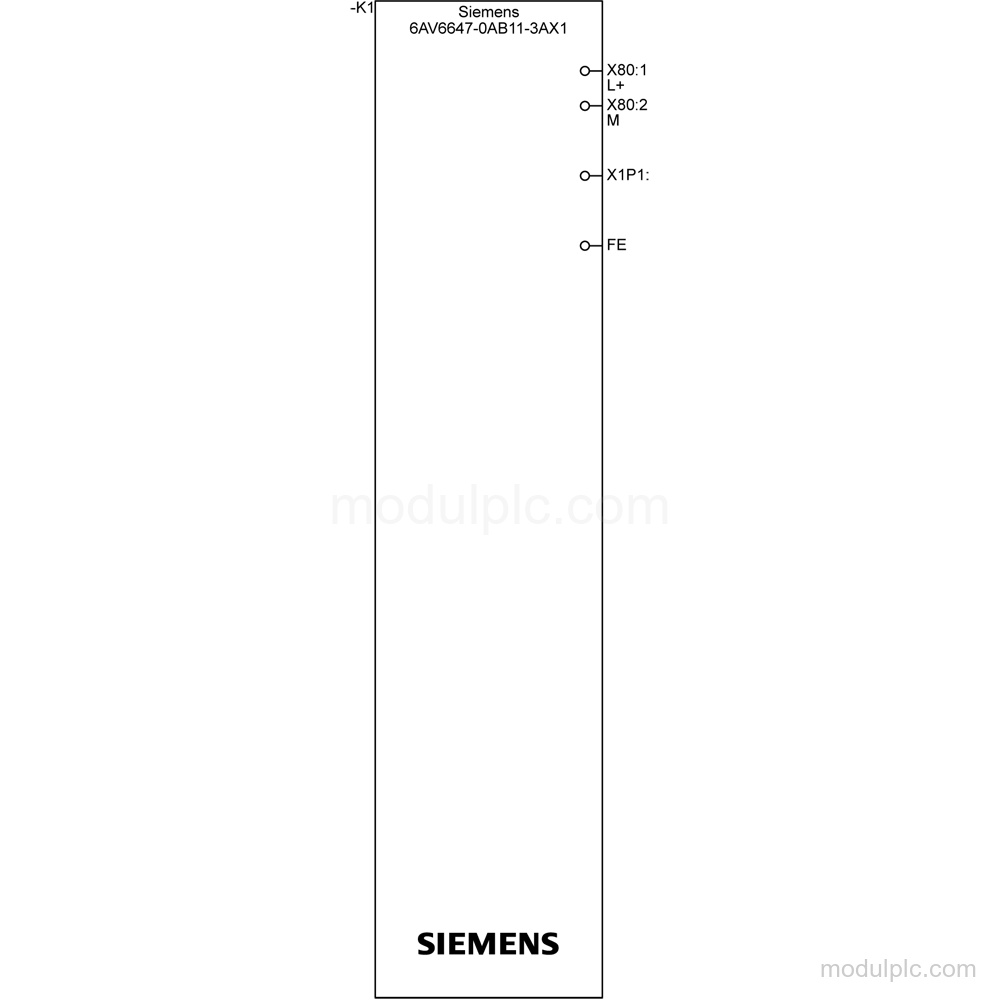

- PROFINET interface: Has 1 industrial Ethernet interface and supports PROFINET, EtherNet/IP, TCP/IP, DHCP, SNMP, DCP, and LLDP.
- 24 V DC supply: Rated supply is 24 V DC, with a permissible range from 19.2 V to 28.8 V.

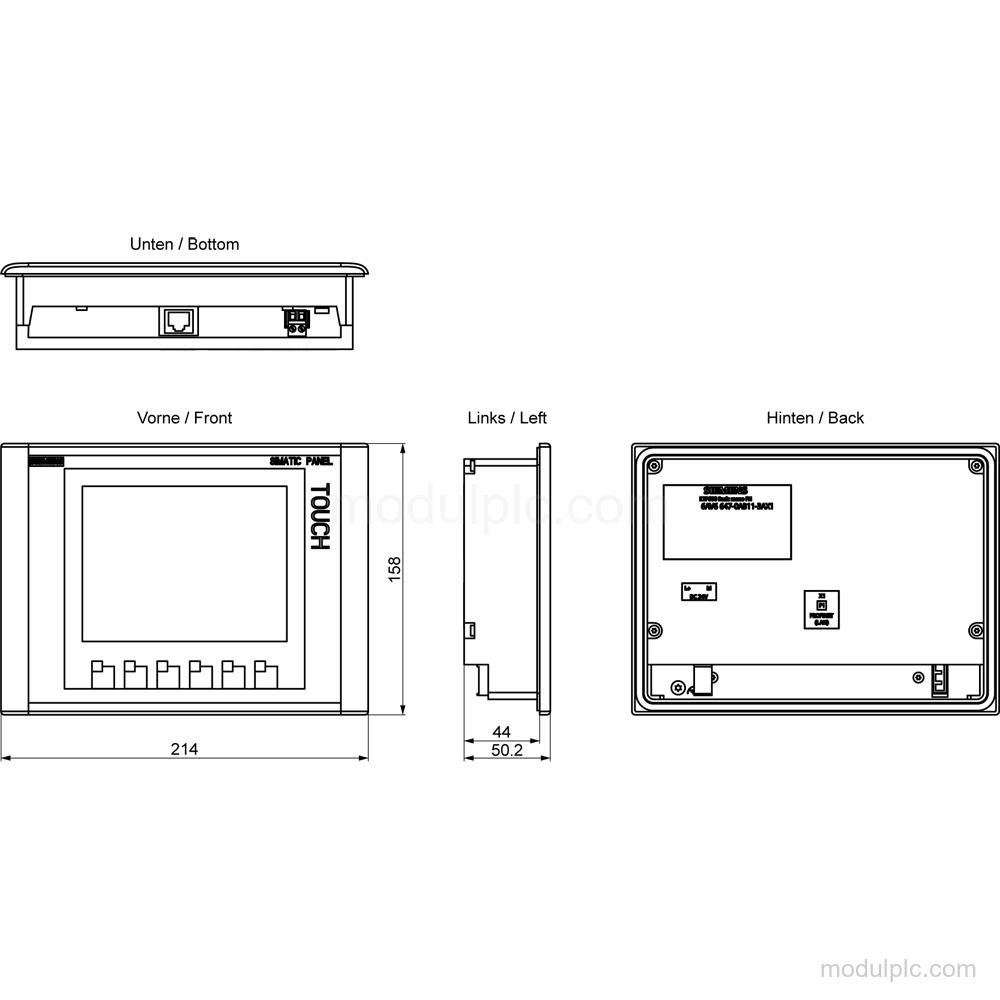

- Mounting and protection: Supports vertical installation, portrait or landscape mounting, and a maximum permissible inclination angle of 35° without external ventilation. Front protection is IP65; rear protection is IP20.
Frequently Asked Questions
1. What operation does the Siemens 6AV6647-0AB11-3AX1 support?
It supports key/touch operation with 6 function keys, a numeric onscreen keyboard, an alphanumeric onscreen keyboard, and an analog-resistive touch screen.
2. What communication interfaces and protocols does it have?
It has 1 industrial Ethernet interface and supports PROFINET, EtherNet/IP, TCP/IP, DHCP, SNMP, DCP, and LLDP.
3. What supply voltage does this HMI panel require?
The rated supply is 24 V DC, with a permissible range from 19.2 V to 28.8 V.
4. How can the panel be mounted?
It supports vertical installation and mounting in portrait or landscape format. The maximum permissible inclination angle is 35° without external ventilation.
