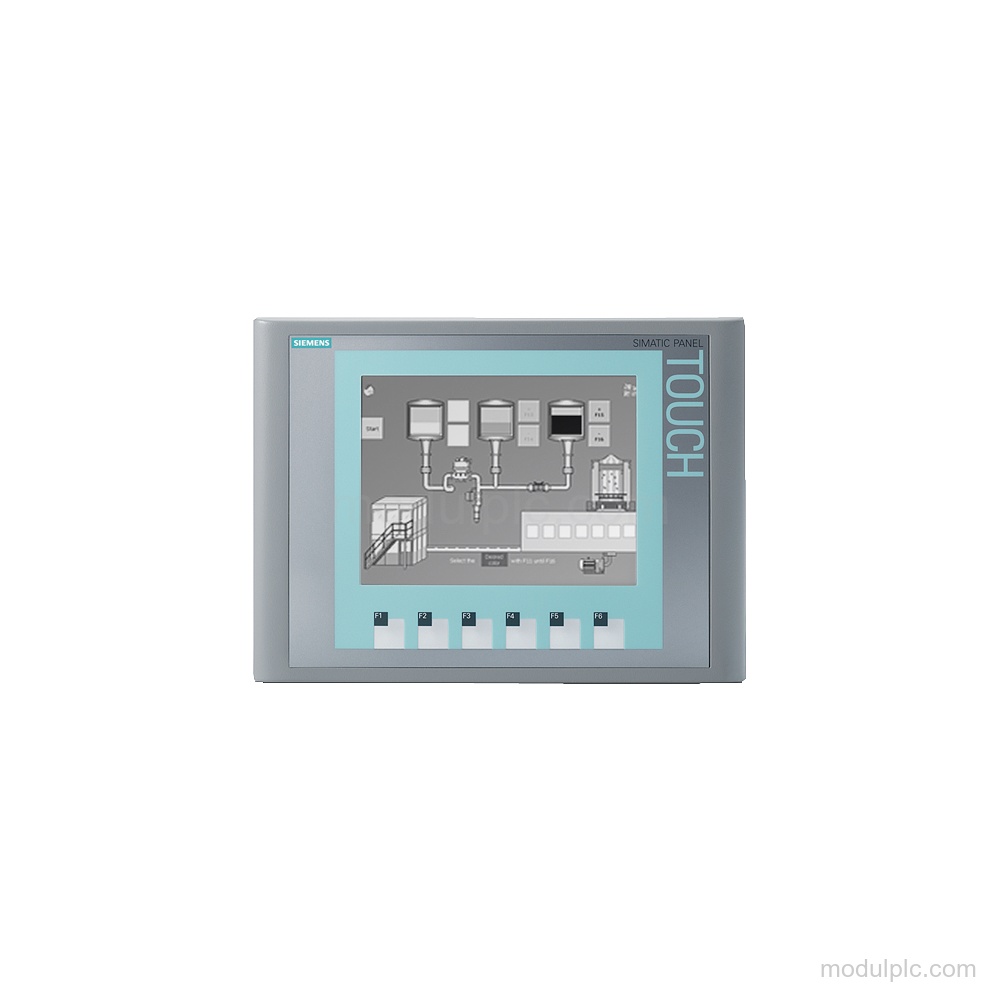

Product Overview
Technical Summary

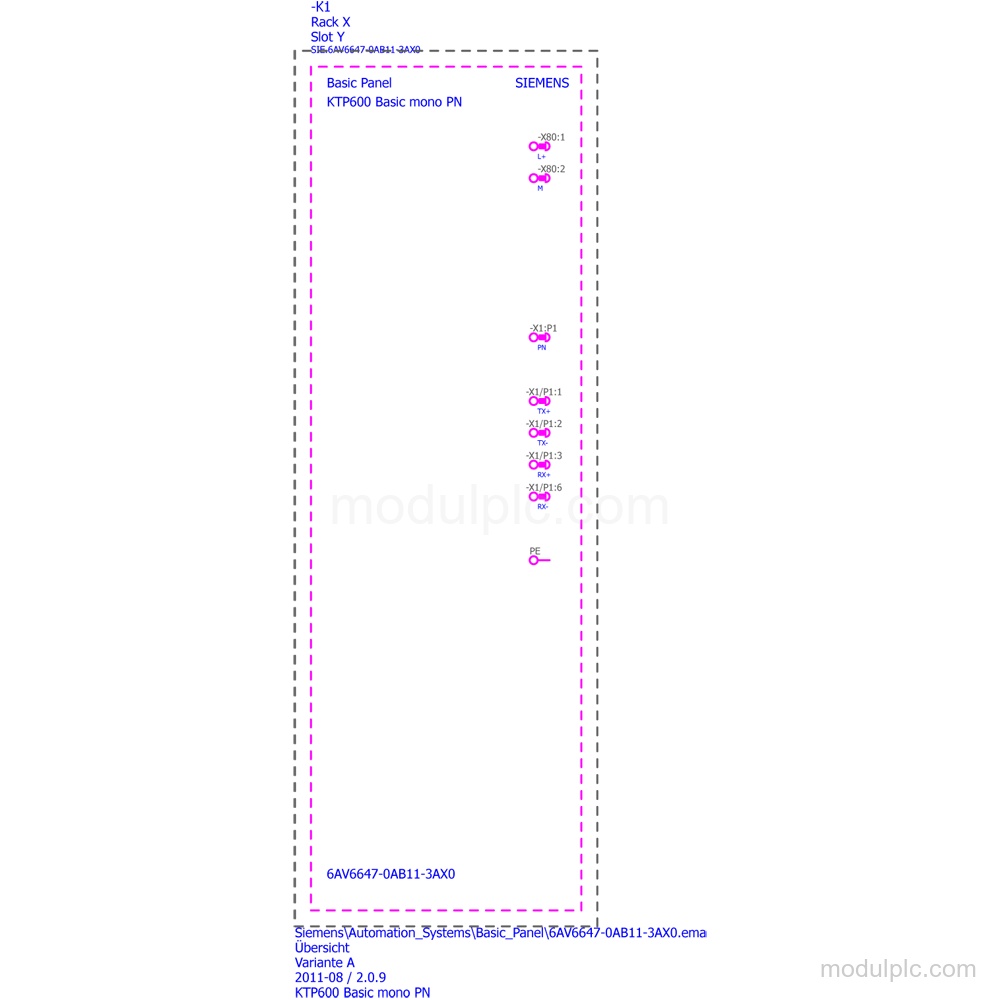

| Parameter | Value |
|---|---|
| Product type | KTP600 Basic mono PN |
| Display | 5.7 in STN, 4 grayscales |
| Image resolution | 320 pixel × 240 pixel |
| Operator input | 6 function keys and analog-resistive touch screen |
| Industrial Ethernet interfaces | 1 |
| Protocols | PROFINET, EtherNet/IP, TCP/IP, DHCP, SNMP, DCP, LLDP |
| Supply | 24 V DC; 19.2 V to 28.8 V permissible range |
| Current consumption | 0.24 A rated value |
| Active power input | 6 W typ. |
| Mounting | Vertical; portrait and landscape formats possible |
| Protection | IP65 front; IP20 rear |
Applications
- Operator input: The panel supports operator input through function keys, numeric and alphanumeric onscreen keyboards, and analog-resistive touch operation.
Key Features
- Key/touch operator interface: The panel has 6 function keys and an analog-resistive touch screen, with numeric and alphanumeric onscreen keyboards.
- STN display: The 5.7 in STN display provides 320 pixel horizontal image resolution, 240 pixel vertical image resolution, and 4 grayscales.
- Industrial Ethernet communication: It has 1 industrial Ethernet interface and supports PROFINET, EtherNet/IP, TCP/IP, DHCP, SNMP, DCP, and LLDP.
- 24 V DC supply: The rated supply is 24 V DC, with a permissible range from 19.2 V to 28.8 V.
- Mounting and protection: Vertical mounting is specified; portrait and landscape mounting are possible. Protection is IP65 at the front and IP20 at the rear.
Frequently Asked Questions
1. Which display and operator controls does the KTP600 Basic mono PN have?
It has a 5.7 in STN display with 4 grayscales, 6 function keys, and an analog-resistive touch screen. Numeric and alphanumeric onscreen keyboards are available.
2. Which network interfaces and protocols are supported?
It has 1 industrial Ethernet interface and supports PROFINET, EtherNet/IP, TCP/IP, DHCP, SNMP, DCP, and LLDP.
3. What supply voltage does this HMI panel require?
The rated supply is 24 V DC. The permissible supply range is from 19.2 V to 28.8 V.
4. How is the panel mounted and protected?
Vertical mounting is specified, and portrait or landscape mounting is possible. Protection is IP65 at the front and IP20 at the rear.
