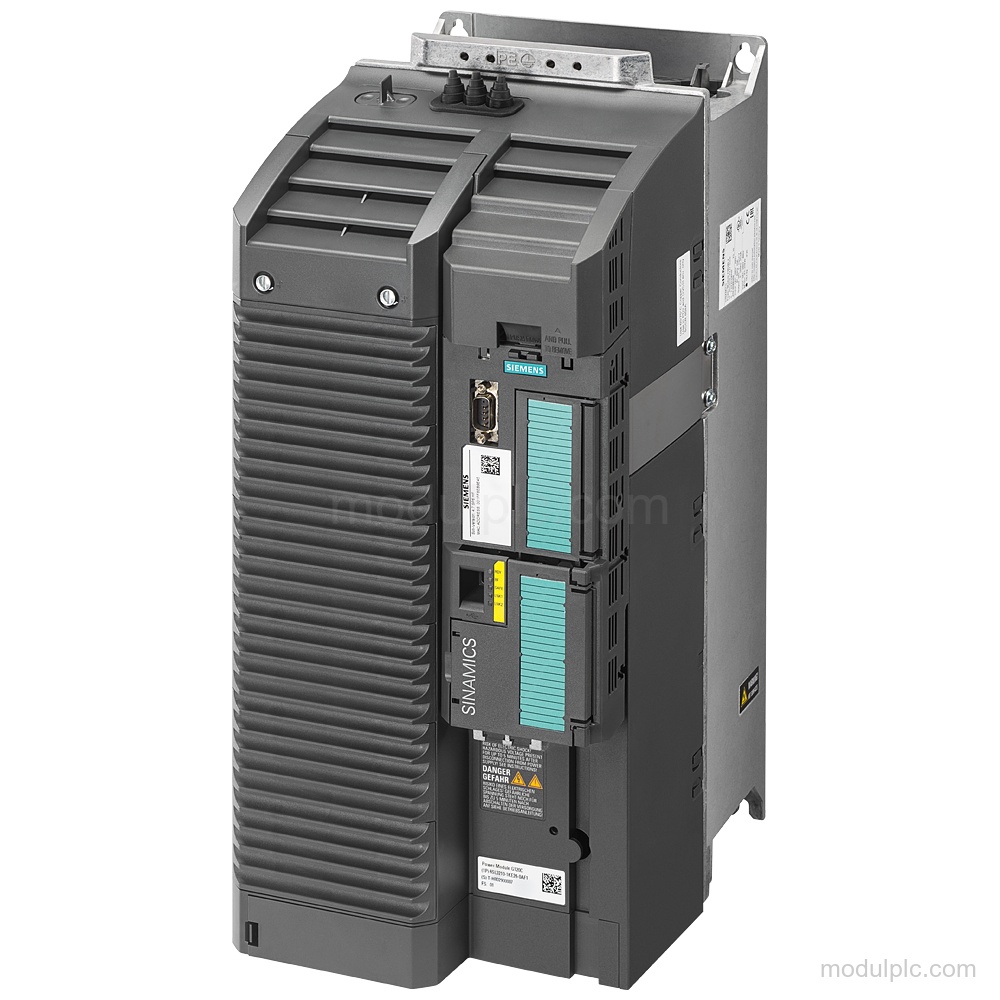

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Rated output power (LO) | 22.00 kW | 25.00 hp |
| Rated output power (HO) | 18.50 kW | 20.00 hp |
| Input | 3 AC, 380 … 480 V +10 % -20 %, 47 … 63 Hz |
| I/O | 6 DI, 2 DO, 1 AI, 1 AO |
| Communication | PROFINET, EtherNet/IP |
| Safety function | Safe Torque Off integrated |
| Maximum output current | 74.00 A |
| Output frequency for vector control | 0 … 240 Hz |
| Output frequency for V/f control | 0 … 550 Hz |
| Frame size | FSD |
| Degree of protection | IP20 / UL open type |
Key Features

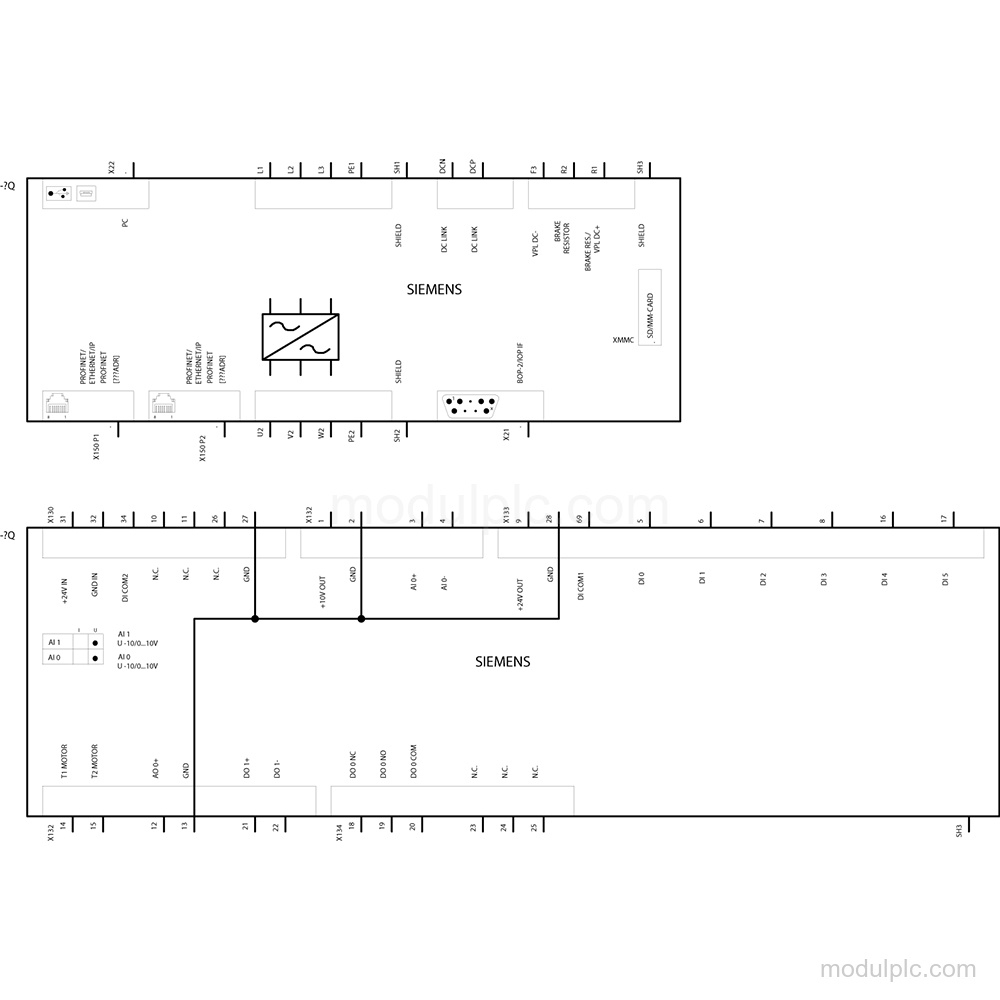

- I/O configuration: Has 6 standard digital inputs, 1 fail-safe digital input, 1 relay changeover contact, 1 transistor output, 1 differential analog input, and 1 non-isolated analog output.
- Communication: Integrated communication supports PROFINET and EtherNet/IP.
- Rated output: Rated output power is 22.00 kW (LO) or 18.50 kW (HO), with maximum output current of 74.00 A.
- Input supply: Input: 3 AC, 380 … 480 V +10 % -20 %, 47 … 63 Hz.
- Safety and protection: Integrated Safe Torque Off; degree of protection IP20 / UL open type.
- Installation and connections: Frame size FSD; dimensions are 200 mm width and 237 mm depth. Line-side, motor-end, DC-link, and PE connections use screw-type terminals.
Frequently Asked Questions
1. What I/O does the 6SL3210-1KE24-4UF1 have?
It has 6 standard digital inputs, 1 fail-safe digital input, 1 relay changeover contact, 1 transistor output, 1 differential analog input, and 1 non-isolated analog output.
2. Which communication protocols are integrated?
Integrated communication supports PROFINET and EtherNet/IP.
3. What supply does this SINAMICS G120C drive use?
The input is 3 AC, 380 … 480 V +10 % -20 %, at 47 … 63 Hz.
