Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Rated output power (LO) | 18.50 kW | 25.00 hp |
| Rated output power (HO) | 15.00 kW | 20.00 hp |
| Input supply | 3 AC, 380 … 480 V +10 % -20 %, 47 … 63 Hz |
| Communication | PROFIBUS DP |
| Standard digital inputs | 6 |
| Fail-safe digital inputs | 1 |
| Protection | IP20 / UL open type |
Key Features
- Rated output power: 18.50 kW | 25.00 hp at low overload (LO); 15.00 kW | 20.00 hp at high overload (HO).
- Input supply: 3 AC input, 380 … 480 V with +10 % -20 % tolerance, at 47 … 63 Hz.

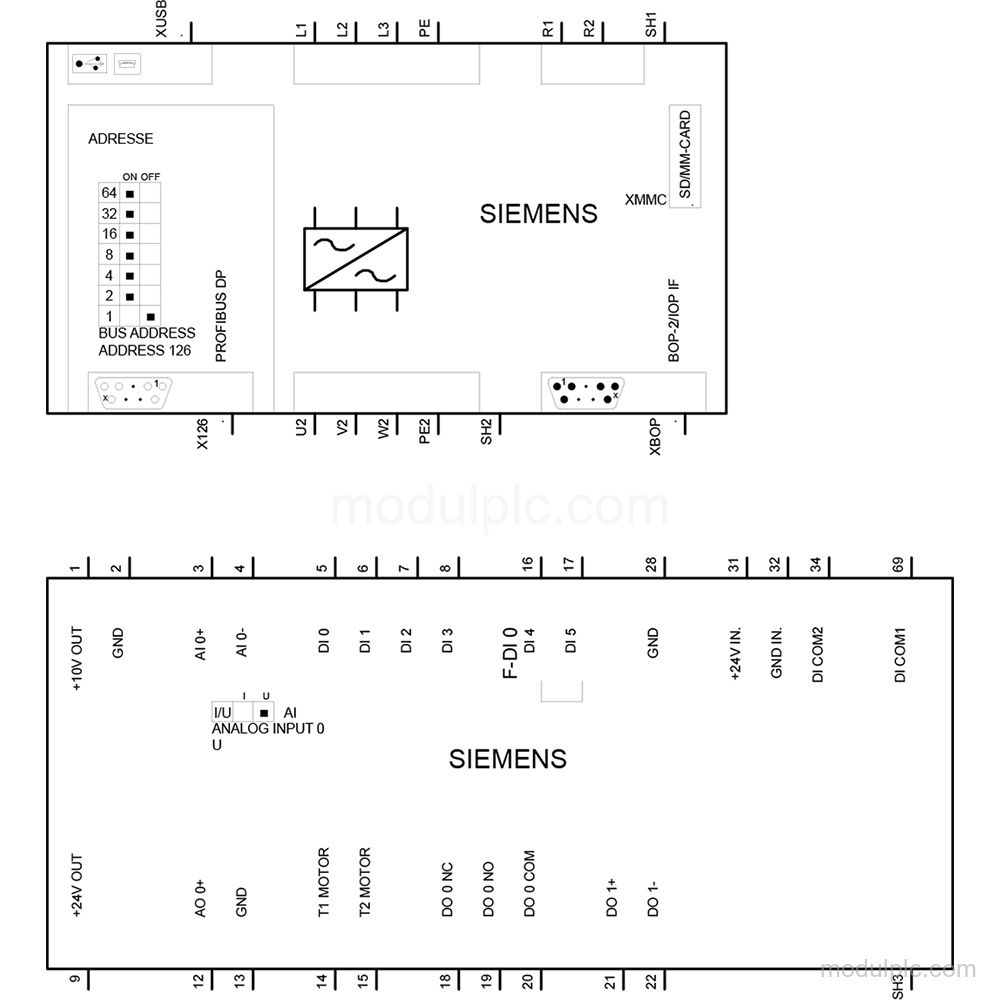

- I/O interface: 6 standard digital inputs, 1 fail-safe digital input, 1 relay changeover output, 1 transistor output, 1 differential analog input, and 1 non-isolated analog output.
- Communication: PROFIBUS DP communication.
- Control techniques: Supports V/f linear / square-law / parameterizable, V/f with flux current control (FCC), V/f ECO linear / square-law, and sensorless vector control.

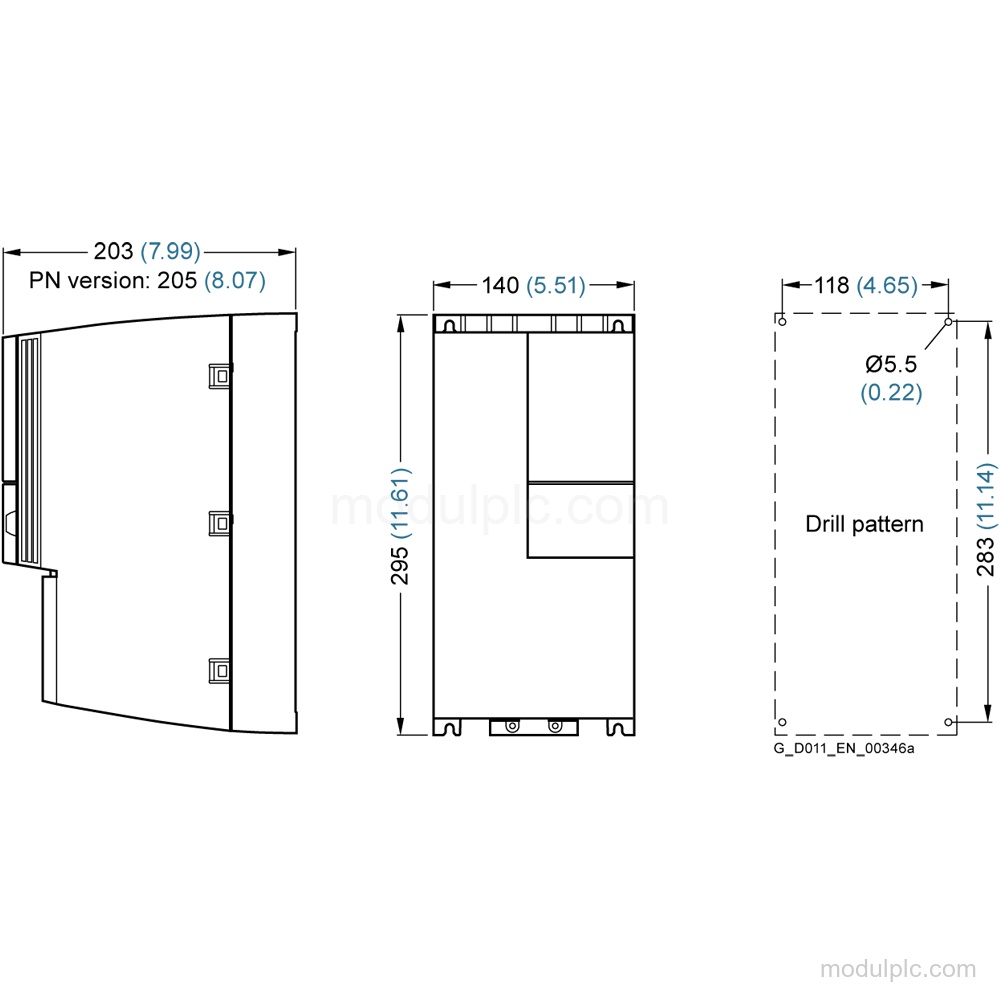

- Installation and protection: FSC frame size, IP20 / UL open type, plug-in screw terminals, 140 mm width, 203 mm depth, and 4.40 kg net weight.
Frequently Asked Questions
1. What rated output power does Siemens 6SL3210-1KE23-8UP1 provide?
It provides 18.50 kW | 25.00 hp at low overload (LO) and 15.00 kW | 20.00 hp at high overload (HO).
2. Which I/O does this SINAMICS G120C converter have?
It has 6 standard digital inputs, 1 fail-safe digital input, 1 relay changeover output, 1 transistor output, 1 differential analog input, and 1 non-isolated analog output.
3. Which communication interface is available?
Communication is PROFIBUS DP.
