Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Input channels | 6 digital inputs, including 1 fail-safe digital input |
| Analog input | 1 differential input, 10 bit |
| Digital outputs | 2: 1 relay changeover contact and 1 transistor |
| Communication | USS/MODBUS RTU |
| Input supply | 3 AC, 380 … 480 V +10 % -20 %, 47 … 63 Hz |
| Rated output power | 11.00 kW | 15.00 hp (LO); 7.50 kW | 10.00 hp (HO) |
| Output frequency | 0 … 240 Hz for vector control; 0 … 550 Hz for V/f control |
| Protection | IP20 / UL open type |
| Frame size | FSC |
Applications
- Motor control: Supports V/f and sensorless vector control techniques for motor control.
Key Features

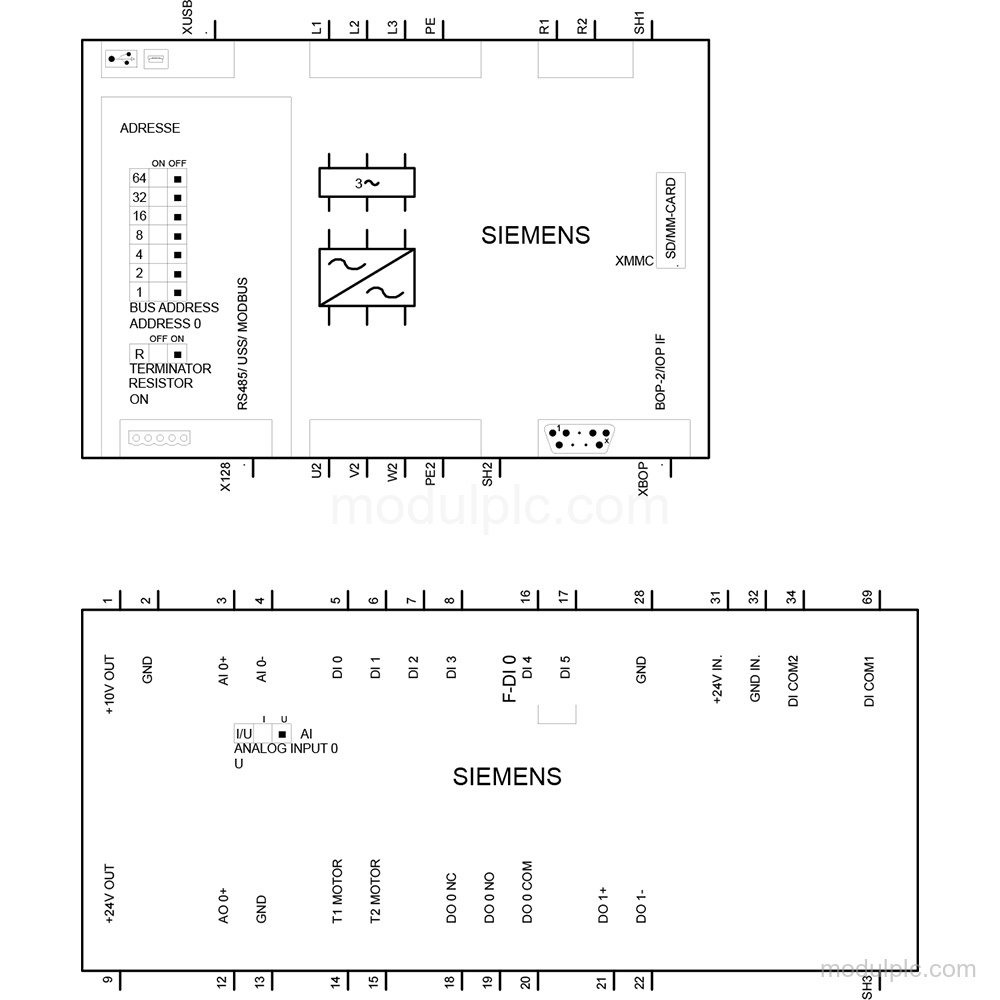

- Input and output channels: Interface: 6 digital inputs, 1 fail-safe digital input, 2 digital outputs, 1 differential analog input, and 1 non-isolated analog output.
- Rated input: Input: 3 AC, 380 … 480 V +10 % -20 %, 47 … 63 Hz.
- Rated output: Output: 3 AC, rated power 11.00 kW | 15.00 hp (LO) or 7.50 kW | 10.00 hp (HO).
- Communication: Communication: USS/MODBUS RTU.
- Control techniques: Has V/f linear / square-law / parameterizable, V/f with flux current control (FCC), V/f ECO linear / square-law, and sensorless vector control.
- Installation and protection: Protection: IP20 / UL open type. Frame size: FSC; width 140 mm, depth 203 mm.
Frequently Asked Questions
1. How many digital inputs and outputs does 6SL3210-1KE22-6AB1 have?
It has 6 standard digital inputs, 1 fail-safe digital input, 1 relay changeover contact output, and 1 transistor output.
2. Which communication protocol does the converter support?
Communication is USS/MODBUS RTU.
3. What input supply does this SINAMICS G120C converter use?
Input is 3 AC, 380 … 480 V +10 % -20 % at 47 … 63 Hz.
4. What are the mounting dimensions and protection degree?
Frame size is FSC; width is 140 mm, depth is 203 mm, and protection is IP20 / UL open type.
