Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product lifecycle | Active Product |
| Rated output power (LO) | 5.50 kW | 7.50 hp |
| Rated output power (HO) | 4.00 kW | 5.00 hp |
| Input voltage | 380 … 480 V +10 % -20 % |
| Input frequency | 47 … 63 Hz |
| Communication | PROFIBUS DP |
| Digital inputs | 6 standard digital inputs + 1 fail-safe digital input |
| Analog I/O | 1 differential analog input, 1 non-isolated analog output |
| Frame size | FSB |
| Degree of protection | IP20 / UL open type |
Key Features
- Rated power: Rated output power is 5.50 kW (LO) or 4.00 kW (HO).
- Input and output: Input and output each have 3 AC phases; input voltage is 380 … 480 V +10 % -20 % at 47 … 63 Hz.

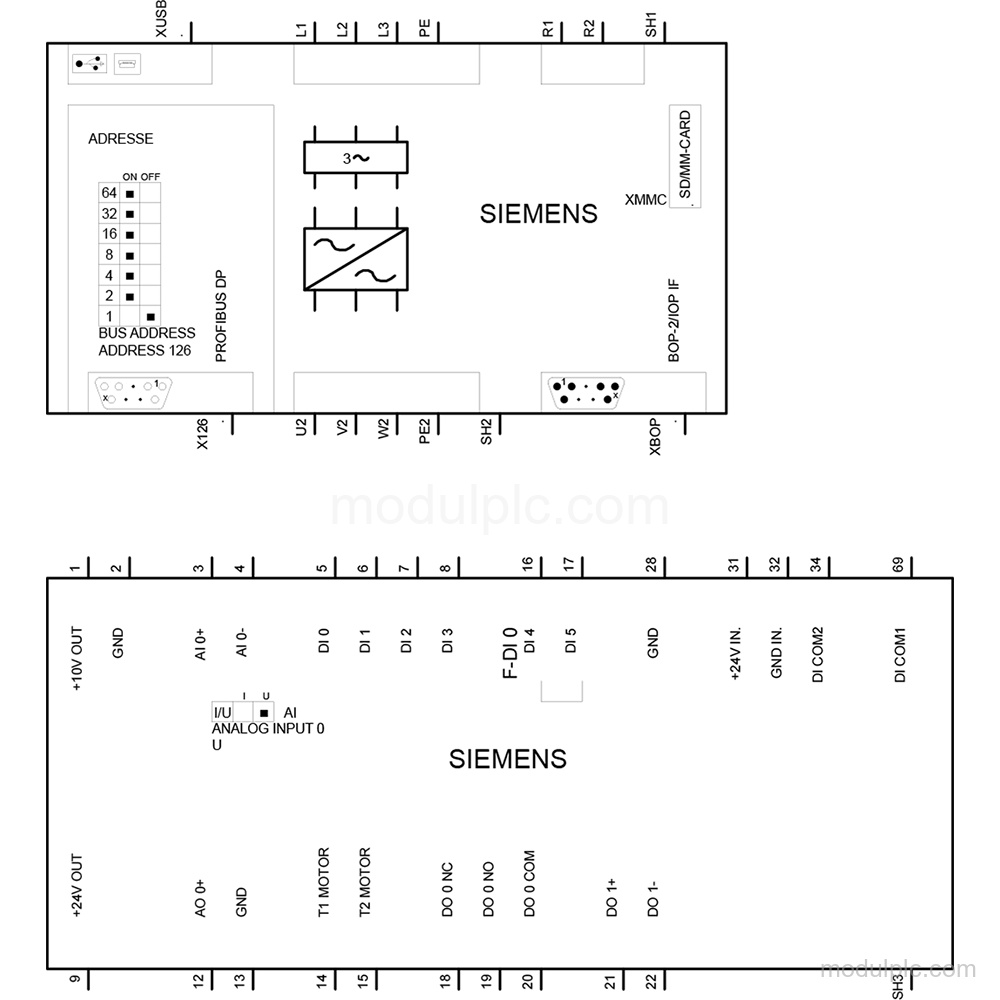

- I/O interface: The interface has 6 standard digital inputs, 2 digital outputs, 1 differential analog input, 1 non-isolated analog output, and 1 fail-safe digital input.
- Communication: Communication interface: PROFIBUS DP.
- Connections and mounting: Line-side and motor-end connections use plug-in screw terminals. Frame size is FSB; dimensions are 100 mm width and 203 mm depth.
- Protection and cooling: Degree of protection is IP20 / UL open type. Cooling uses an integrated fan.
Frequently Asked Questions
1. What is the rated output power of 6SL3210-1KE21-3AP1?
Rated output power is 5.50 kW (LO) or 4.00 kW (HO).
2. What I/O does this SINAMICS G120C drive provide?
It has 6 standard digital inputs, 2 digital outputs, 1 differential analog input, 1 non-isolated analog output, and 1 fail-safe digital input.
3. Which communication interface is included?
The drive has a PROFIBUS DP communication interface.
4. What are the connection and protection details?
Line-side and motor-end connections use plug-in screw terminals. Protection is IP20 / UL open type, and cooling uses an integrated fan.
