Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Communication | PROFINET, EtherNet/IP |
| Standard digital inputs | 6 |
| Fail-safe digital inputs | 1 |
| Rated output power (LO) | 5.50 kW | 7.50 hp |
| Rated output power (HO) | 4.00 kW | 5.00 hp |
| Input voltage | 3 AC, 380 … 480 V +10 % -20 % |
| Output frequency for vector control | 0 … 240 Hz |
| Output frequency for V/f control | 0 … 550 Hz |
| Degree of protection | IP20 / UL open type |
| Frame size | FSB |
| Line-side connection | Plug-in screw terminals |
Key Features
- PROFINET and EtherNet/IP communication: Communication: PROFINET, EtherNet/IP.

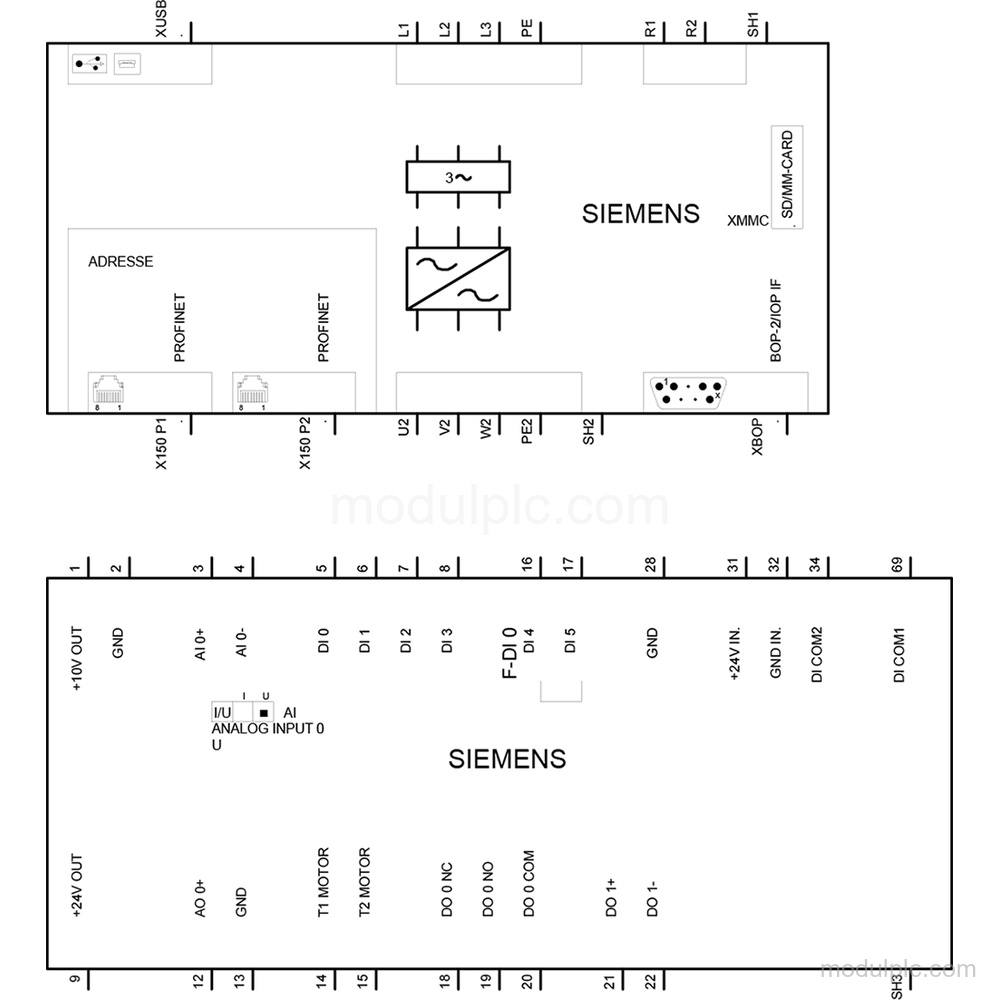

- Digital and analog I/O: The interface has 6 standard digital inputs, 1 fail-safe digital input, 1 relay changeover contact, 1 transistor output, 1 differential analog input, and 1 non-isolated analog output.
- Low- and high-overload output power: Rated output power is 5.50 kW | 7.50 hp for low overload and 4.00 kW | 5.00 hp for high overload.
- Input and output electrical data: Input: 3 AC, 380 … 480 V +10 % -20 %, 47 … 63 Hz. Output: 3 AC, 400V IEC | 480V NEC.
- Plug-in screw terminals: The line-side, motor-end, and DC link connections use plug-in screw terminals. The DC link line length is max. 15 m (49.21 ft).
- Compact IP20 housing: Degree of protection: IP20 / UL open type. Frame size: FSB. Dimensions: 100 mm width and 203 mm depth.
Frequently Asked Questions
1. What communication protocols does Siemens 6SL3210-1KE21-3AF1 support?
It supports PROFINET and EtherNet/IP.
2. How many digital inputs and outputs does the converter have?
It has 6 standard digital inputs, 1 fail-safe digital input, 1 relay changeover contact, and 1 transistor output.
3. What are the low- and high-overload output ratings?
Low overload: 5.50 kW | 7.50 hp. High overload: 4.00 kW | 5.00 hp.
4. What input voltage and frequency does it use?
Input: 3 AC, 380 … 480 V +10 % -20 % and 47 … 63 Hz.
5. What connections and protection are provided?
It has plug-in screw terminals and IP20 / UL open type protection.
