Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Low-overload rated power | 3.00 kW | 4.00 hp |
| High-overload rated power | 2.20 kW | 3.00 hp |
| Input line voltage | 380 … 480 V +10 % -20 % |
| Input line frequency | 47 … 63 Hz |
| Communication | PROFINET, EtherNet/IP |
| Standard digital inputs | 6 |
| Fail-safe digital inputs | 1 |
| Digital outputs | 1 relay changeover contact; 1 transistor |
| Analog/digital inputs | 1 (Differential input) |
| Analog outputs | 1 (Non-isolated output) |
| Output frequency for vector control | 0 … 240 Hz |
| Degree of protection | IP20 / UL open type |
Key Features
- Rated power: 3.00 kW | 4.00 hp at low overload; 2.20 kW | 3.00 hp at high overload.
- Input and output: Input: 3 AC, 380 … 480 V +10 % -20 %, 47 … 63 Hz. Output: 3 AC.
- Communication: Communication: PROFINET, EtherNet/IP.

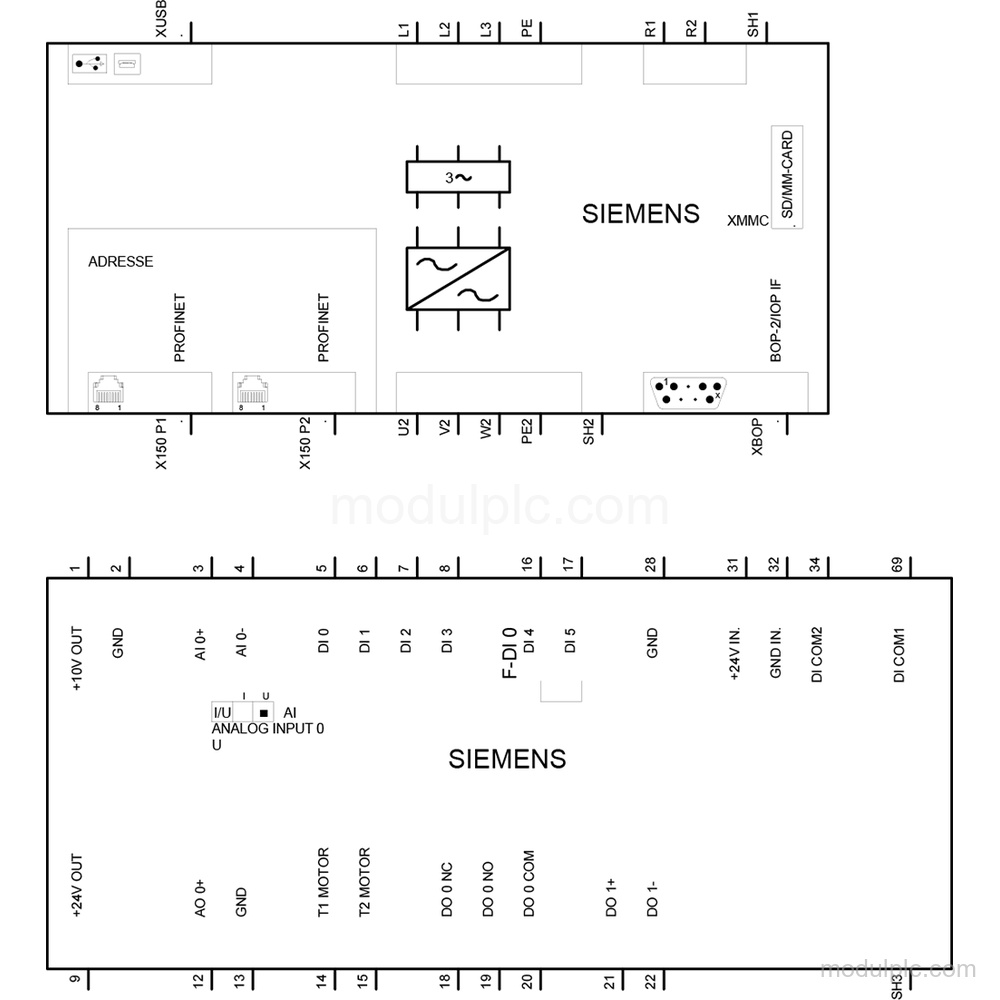

- I/O interface: 6 standard digital inputs, 1 fail-safe digital input, 1 relay changeover contact, 1 transistor output, 1 differential input and 1 non-isolated analog output.
- Control techniques: Supports V/f linear / square-law / parameterizable, V/f with flux current control (FCC), V/f ECO linear / square-law and sensorless vector control.
- Connections and protection: Plug-in screw terminals are provided on the line side, motor end and DC link for braking resistor. Degree of protection: IP20 / UL open type.
Frequently Asked Questions
1. What rated power does the 6SL3210-1KE17-5AF1 provide?
It provides 3.00 kW | 4.00 hp at low overload and 2.20 kW | 3.00 hp at high overload.
2. Which communication protocols does this converter support?
It supports PROFINET and EtherNet/IP.
3. How many I/O points are provided?
It has 6 standard digital inputs, 1 fail-safe digital input, 1 relay changeover contact, 1 transistor output, 1 differential input and 1 non-isolated analog output.
4. What connections are included?
Plug-in screw terminals are provided on the line side, motor end and DC link for braking resistor.
