Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Input phases | 3 AC |
| Line voltage | 380 … 480 V +10 % -20 % |
| Line frequency | 47 … 63 Hz |
| Rated output power, LO | 2.20 kW | 3.00 hp |
| Rated output power, HO | 1.50 kW | 2.00 hp |
| Standard digital inputs | 6 |
| Communication | USS/MODBUS RTU |
| Degree of protection | IP20 / UL open type |
| Frame size | FSAA |
| Product lifecycle | Active Product |
Applications
- Variable-speed motor control: The converter supports V/f control, V/f with flux current control (FCC), and sensorless vector control for motor operation.
- Safe torque shutdown: The integrated Safe Torque Off function provides the stated fail-safe digital input function.
Key Features
- Low- and high-overload output: Rated output power is 2.20 kW | 3.00 hp for low overload and 1.50 kW | 2.00 hp for high overload.

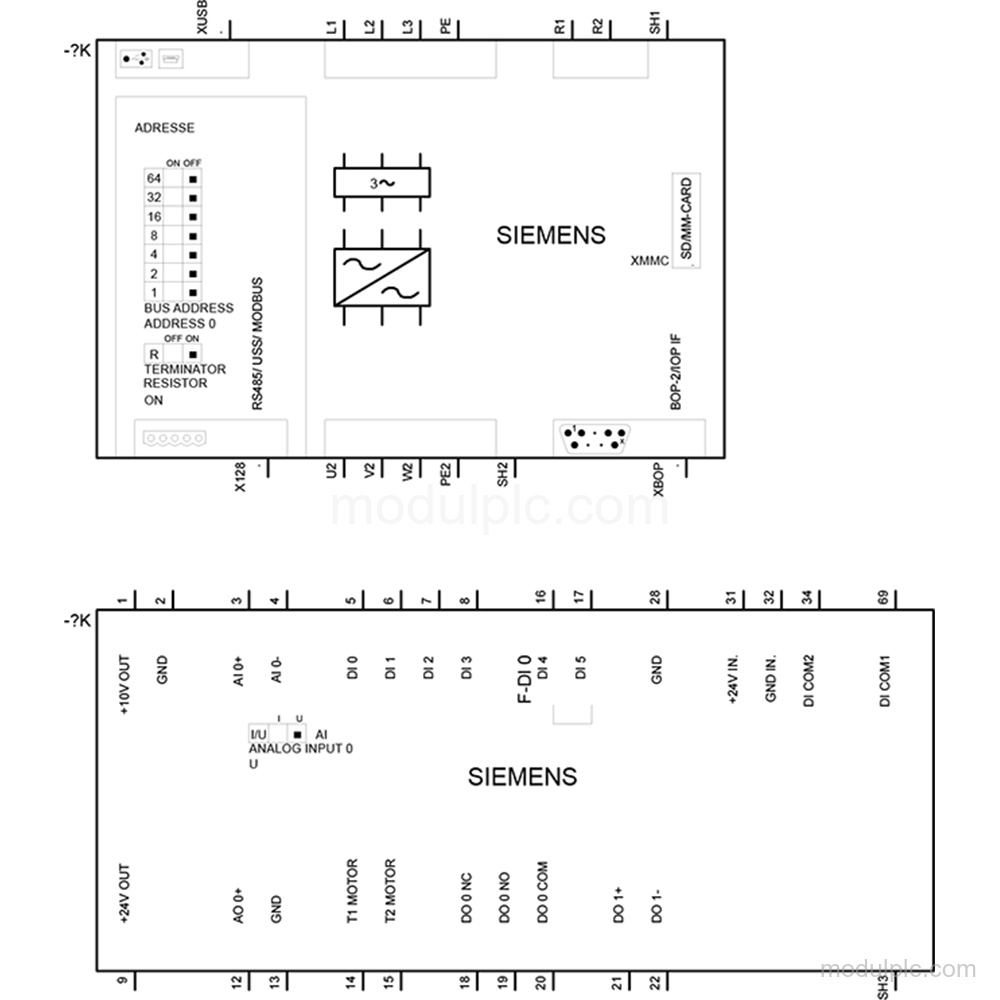

- I/O interface: The converter has 6 standard digital inputs, 1 fail-safe digital input, 1 relay changeover contact, 1 transistor output, 1 differential analog input, and 1 non-isolated analog output.
- Communication: Communication is supported through USS/MODBUS RTU.
- Control techniques: It supports V/f linear / square-law / parameterizable, V/f with flux current control (FCC), V/f ECO linear / square-law, and sensorless vector control.
- Connections and motor cable: Line-side, motor-end, and DC-link connections use plug-in screw terminals. Maximum shielded motor cable length is 50 m (164.04 ft).
- Protection and frame size: The degree of protection is IP20 / UL open type, and the frame size is FSAA.
Frequently Asked Questions
1. What is the rated output power of 6SL3210-1KE15-8AB2?
Rated output power is 2.20 kW | 3.00 hp for low overload and 1.50 kW | 2.00 hp for high overload.
2. Which I/O does this SINAMICS G120C converter provide?
It has 6 standard digital inputs, 1 fail-safe digital input, 1 relay changeover contact, 1 transistor output, 1 differential analog input, and 1 non-isolated analog output.
3. Which communication protocol is supported?
Communication is supported through USS/MODBUS RTU.
4. What connections and motor cable length are specified?
Line-side, motor-end, and DC-link connections use plug-in screw terminals. Maximum shielded motor cable length is 50 m (164.04 ft).
