Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Input phases | 3 AC |
| Line voltage | 380 … 480 V +10 % -20 % |
| Line frequency | 47 … 63 Hz |
| Rated power (LO) | 1.50 kW | 2.00 hp |
| Rated power (HO) | 1.10 kW | 1.50 hp |
| Communication | PROFINET, EtherNet/IP |
| Digital inputs | 6 |
| Digital outputs | 2 |
| Analog inputs | 1 (Differential input) |
| Analog outputs | 1 (Non-isolated output) |
| Protection | IP20 / UL open type |
| Frame size | FSAA |
Key Features
- Low-overload output: Rated power: 1.50 kW | 2.00 hp; rated current: 4.10 A; overload: 150% for 3s, 110% for 57s, 100% for 240s.
- High-overload output: Rated power: 1.10 kW | 1.50 hp; rated current: 3.10 A; overload: 200% for 3s, 150% for 57s, 100% for 240s.
- Input and output data: Input: 3 AC, 380 … 480 V +10 % -20 %, 47 … 63 Hz. Output: 3 AC, 400V IEC | 480V NEC.

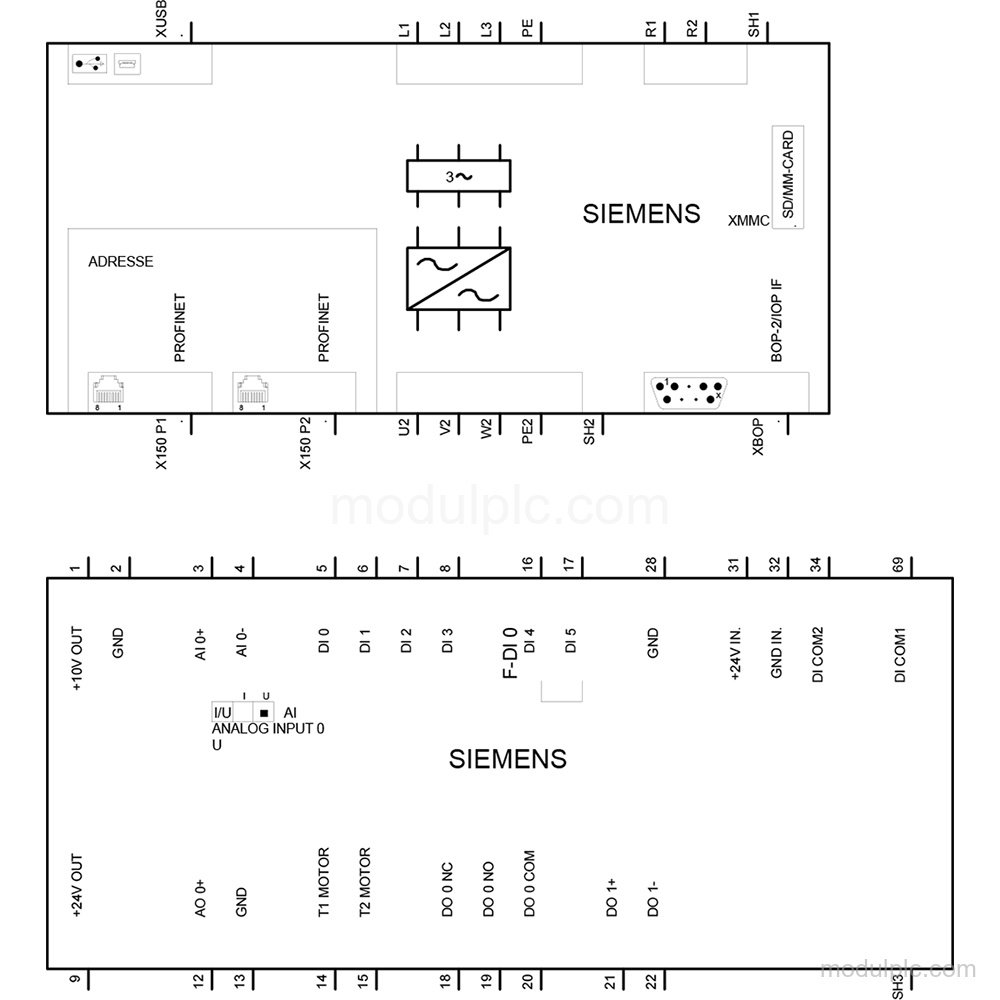

- I/O interface: The interface has 6 digital inputs, 2 digital outputs, 1 differential analog input, 1 non-isolated analog output and 1 fail-safe digital input.
- Communication and protection: Communication: PROFINET, EtherNet/IP. Protection: IP20 / UL open type. An integrated Class A filter is included.
- Mounting and connections: Frame size: FSAA. Dimensions: 73 mm width x 160 mm depth. Line-side, motor-end and DC-link connections use plug-in screw terminals.
Frequently Asked Questions
1. What is the rated low-overload output of 6SL3210-1KE14-3AF2?
The rated low-overload output is 1.50 kW | 2.00 hp at 4.10 A.
2. Which communication protocols does this converter support?
It supports PROFINET and EtherNet/IP.
3. What I/O does the converter provide?
It provides 6 digital inputs, 2 digital outputs, 1 differential analog input, 1 non-isolated analog output and 1 fail-safe digital input.
