Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Input supply | 3 AC, 380 … 480 V +10 % -20 %, 47 … 63 Hz |
| Rated power, LO | 1.10 kW | 1.50 hp |
| Rated power, HO | 0.75 kW | 1.00 hp |
| Digital inputs | 6 |
| Analog input | 1 (Differential input), 10 bit |
| Communication | PROFIBUS DP |
| Protection | IP20 / UL open type |
| Frame size | FSAA |
Key Features
- Rated power: Rated power is 1.10 kW (LO) or 0.75 kW (HO).
- Input supply: Input: 3 AC, 380 … 480 V +10 % -20 %, 47 … 63 Hz.

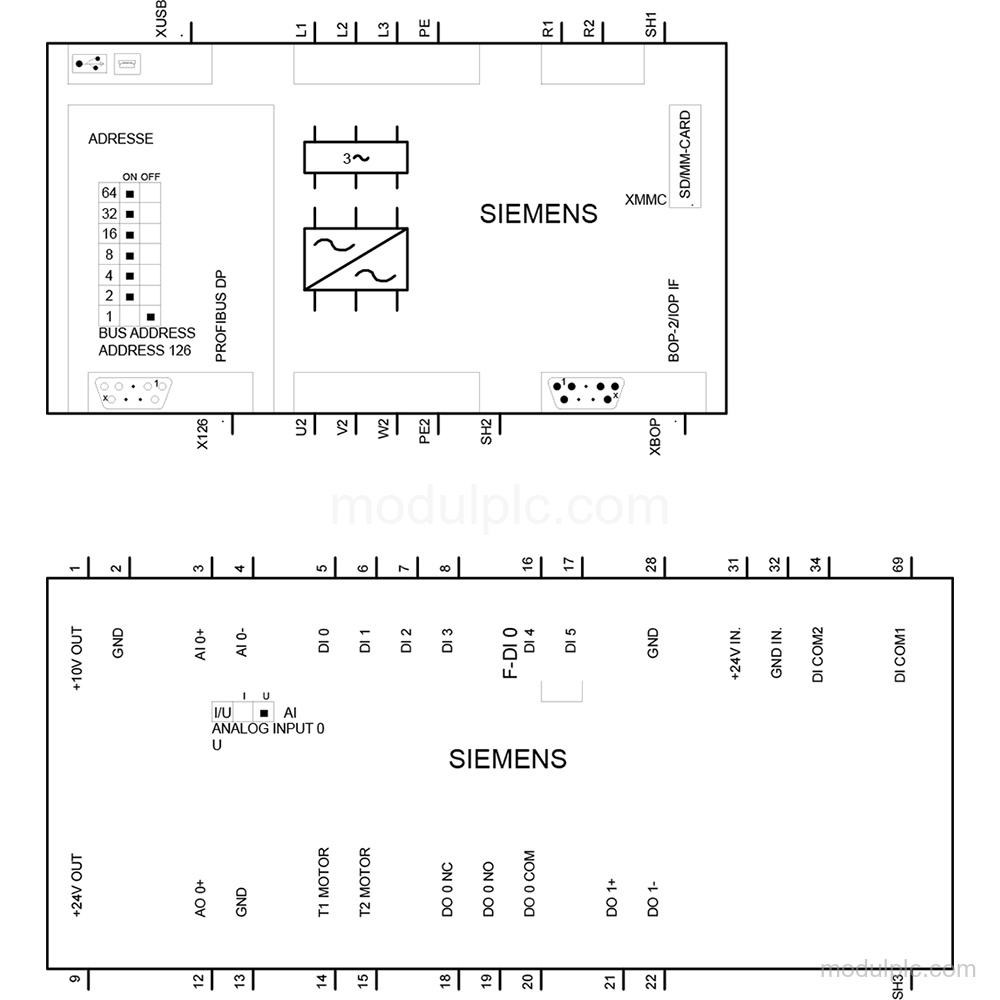

- I/O interface: The interface has 6 digital inputs, 1 fail-safe digital input, 1 analog input, 1 relay changeover contact, 1 transistor output, and 1 analog output.
- Communication and safety: Communication: PROFIBUS DP. Safe Torque Off is integrated.
- Control techniques: Supports V/f linear / square-law / parameterizable, V/f with flux current control (FCC), V/f ECO linear / square-law, and sensorless vector control.
- Installation and protection: Protection: IP20 / UL open type. Frame size: FSAA; dimensions: 73 mm width and 155 mm depth.
Frequently Asked Questions
1. What is the rated power of 6SL3210-1KE13-2AP2?
Rated power is 1.10 kW (LO) or 0.75 kW (HO).
2. Which I/O does this SINAMICS G120C drive have?
It has 6 digital inputs, 1 fail-safe digital input, 1 analog input, 1 relay changeover contact, 1 transistor output, and 1 analog output.
3. Which communication protocol is supported?
Communication is PROFIBUS DP.
4. What protection and frame size does it have?
Protection is IP20 / UL open type, and the frame size is FSAA.
