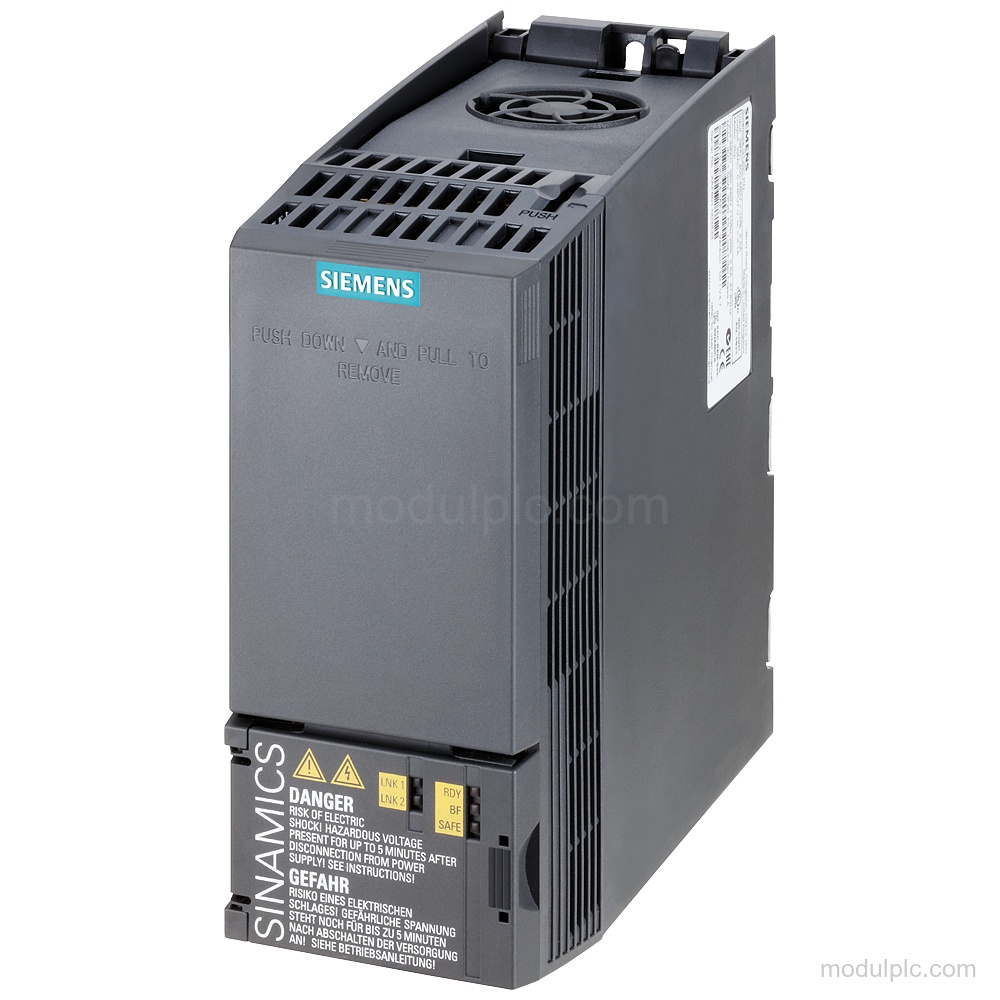

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Rated power (LO) | 0.75 kW | 1.00 hp |
| Rated power (HO) | 0.55 kW | 0.75 hp |
| Input | 3 AC, 380 … 480 V +10 % -20 %, 47 … 63 Hz |
| Communication | PROFIBUS DP |
| Digital inputs | 6 standard; 1 fail-safe |
| Analog I/O | 1 differential input, 10 bit; 1 non-isolated output |
| Protection | IP20 / UL open type |
| Frame size | FSAA |
Key Features
- Rated power: 0.75 kW at low overload and 0.55 kW at high overload.
- Input and output: 3 AC input and 3 AC output; line voltage is 380 … 480 V +10 % -20 %, with 47 … 63 Hz line frequency.

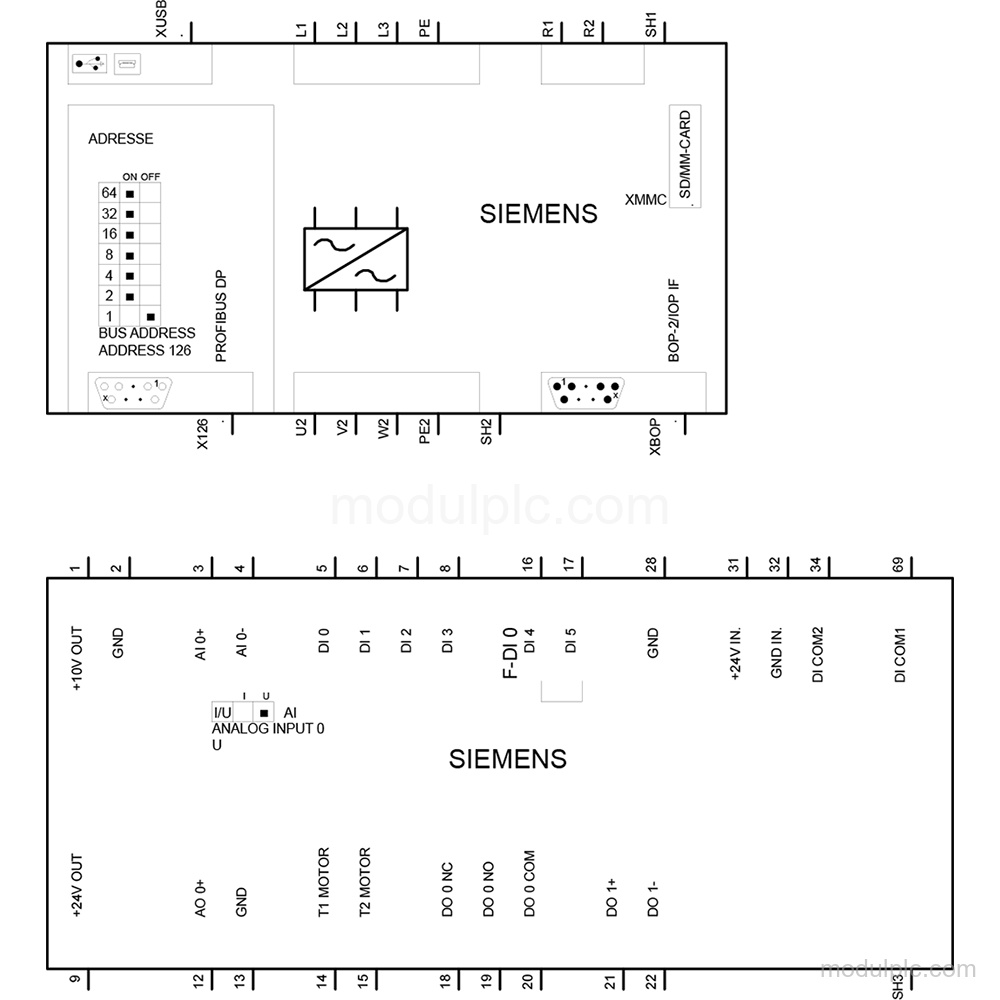

- I/O interface: 6 standard digital inputs, 1 fail-safe digital input, 1 relay changeover contact, 1 transistor output, 1 differential analog input, and 1 non-isolated analog output.
- Communication and safety: PROFIBUS DP communication and integrated Safe Torque Off.

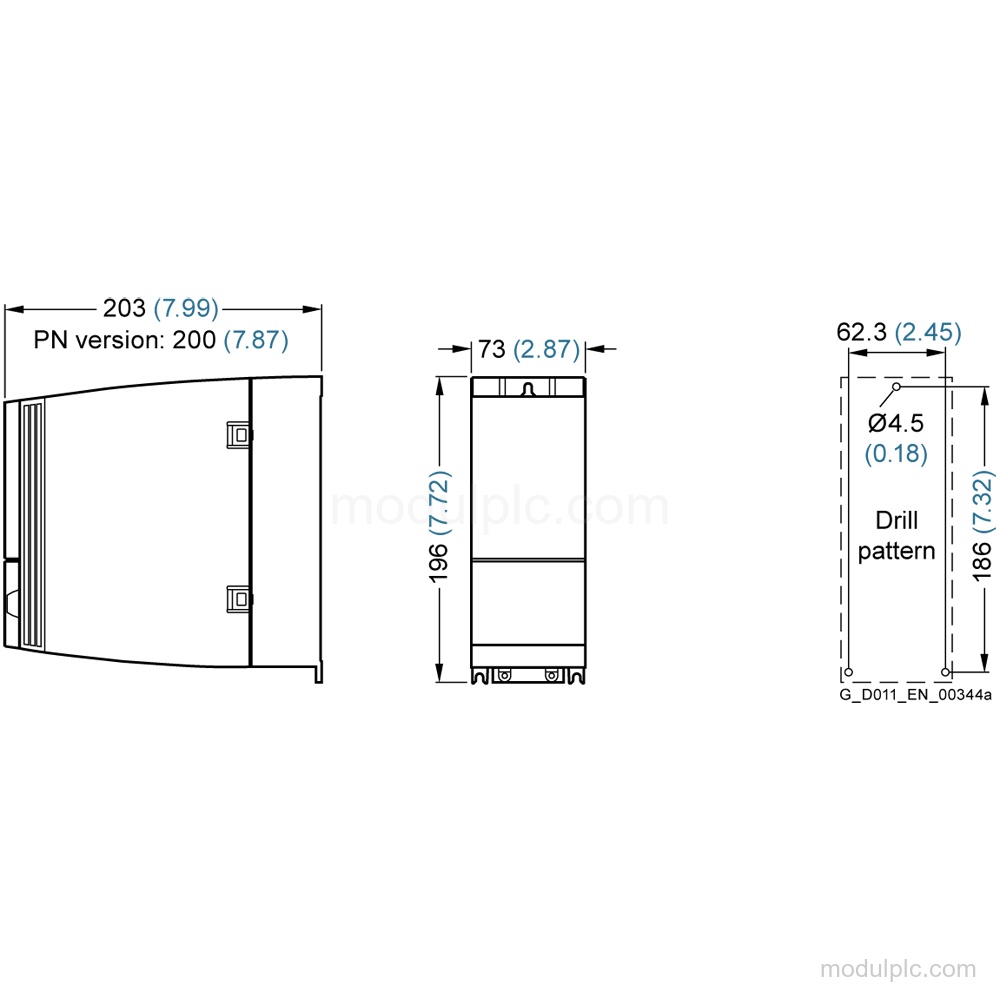

- Connections and mounting: Plug-in screw terminals; frame size FSAA; width 73 mm, depth 155 mm; protection IP20 / UL open type.
- Control techniques: Supports V/f linear / square-law / parameterizable, V/f with flux current control (FCC), V/f ECO linear / square-law, and sensorless vector control.
Frequently Asked Questions
1. What communication interface does the 6SL3210-1KE12-3UP2 have?
It has PROFIBUS DP communication.
2. How many I/O points does this SINAMICS G120C converter provide?
It has 6 standard digital inputs, 1 fail-safe digital input, 1 relay changeover contact, 1 transistor output, 1 differential analog input, and 1 non-isolated analog output.
3. What input supply does the converter use?
The input is 3 AC, 380 … 480 V +10 % -20 % at 47 … 63 Hz.
4. How is the converter connected and protected?
It uses plug-in screw terminals and has IP20 / UL open type protection.
