Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Rated output power (LO) | 0.55 kW | 0.75 hp |
| Rated output power (HO) | 0.37 kW | 0.50 hp |
| Input | 3 AC, 380 … 480 V +10 % -20 %, 47 … 63 Hz |
| Output frequency for vector control | 0 … 240 Hz |
| Output frequency for V/f control | 0 … 550 Hz |
| Digital inputs | 6 standard; 1 fail-safe |
| Analog input | 1 differential input, 10 bit |
| Communication | USS/MODBUS RTU |
| Integrated filter | Class A |
| Protection | IP20 / UL open type |
| Frame size | FSAA |
Key Features
- Rated input and output: Input and output: 3 AC. Line voltage: 380 … 480 V +10 % -20 %. Line frequency: 47 … 63 Hz.
- Low and high overload power: Rated output power: 0.55 kW (LO) and 0.37 kW (HO). Low overload: 150% for 3s, 110% for 57s, 100% for 240s. High overload: 200% for 3s, 150% for 57s, 100% for 240s.

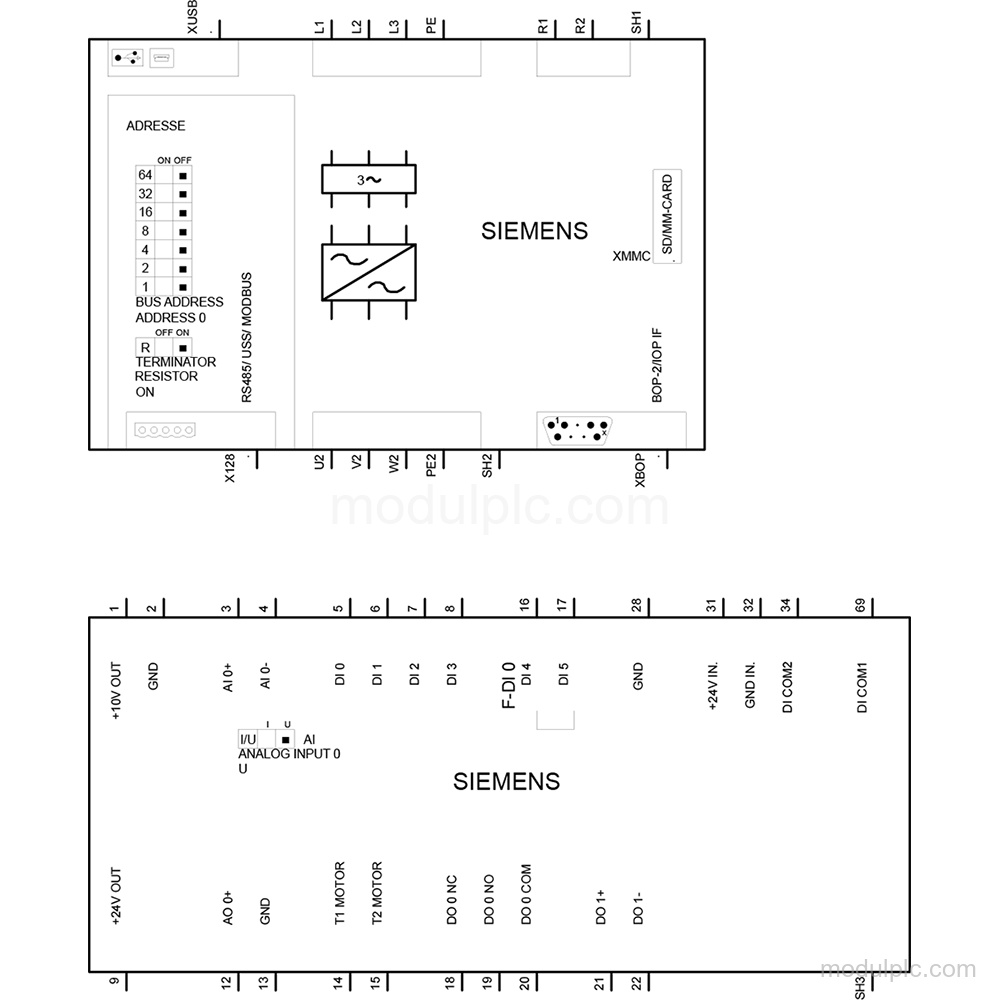

- I/O configuration: The interface has 6 standard digital inputs, 1 fail-safe digital input, 1 relay changeover contact, 1 transistor output, 1 differential analog input, and 1 non-isolated analog output.
- Communication and safety: Communication: USS/MODBUS RTU. Safe Torque Off is integrated.
- Connections and motor cable: Line-side, motor-end, and DC-link connections use plug-in screw terminals. Maximum shielded motor cable length: 50 m (164.04 ft).
- Protection and mounting data: Degree of protection: IP20 / UL open type. Frame size: FSAA. Dimensions: 73 mm (2.87 in) width and 155 mm (6.10 in) depth.
Frequently Asked Questions
1. What I/O does the 6SL3210-1KE11-8AB2 have?
It has 6 standard digital inputs, 1 fail-safe digital input, 1 relay changeover contact, 1 transistor output, 1 differential analog input, and 1 non-isolated analog output.
2. Which communication interface does this converter support?
Communication is USS/MODBUS RTU.
3. What are the input voltage and frequency ranges?
The input is 3 AC, 380 … 480 V +10 % -20 %, at 47 … 63 Hz.
4. How are the connections made?
The line-side, motor-end, and DC-link connections use plug-in screw terminals.
5. What protection and frame size does it have?
Protection is IP20 / UL open type, and the frame size is FSAA.
