Product Overview
Technical Summary
| Parameter | Value |
|---|---|

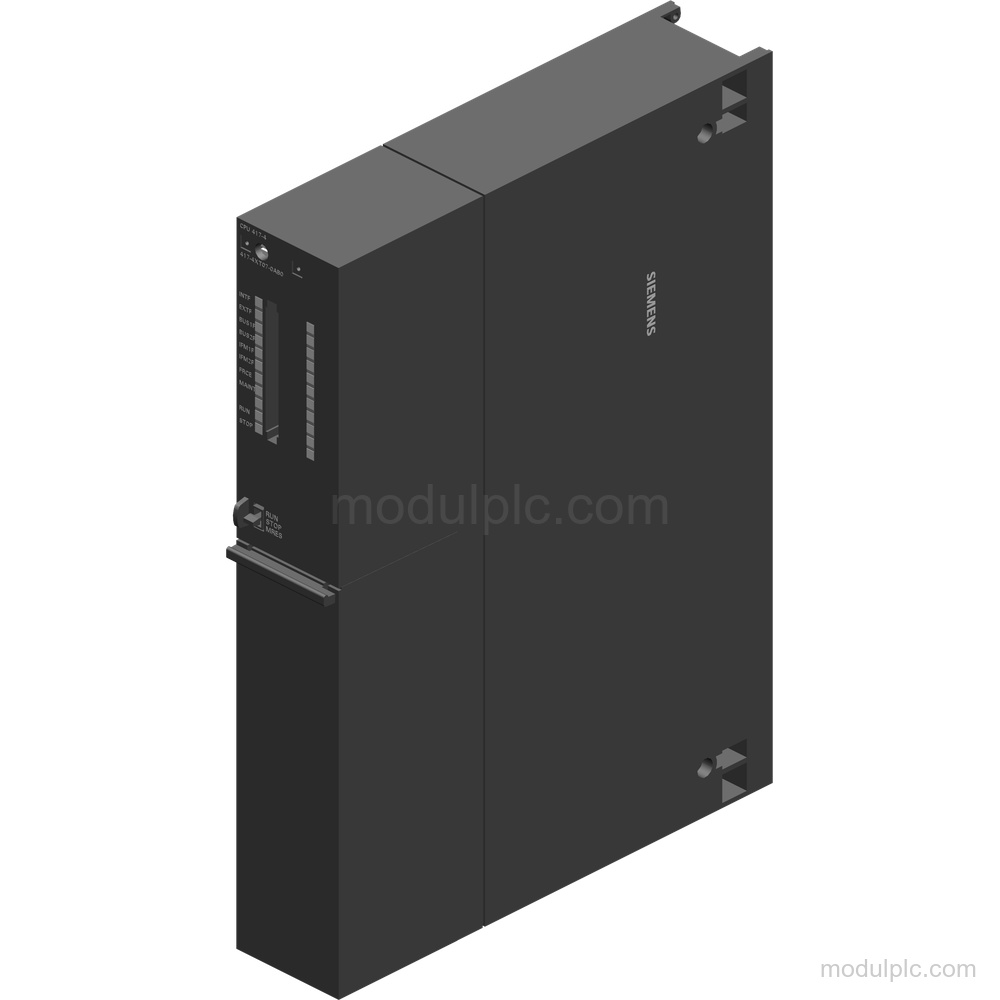

| Product type | CPU 417-4 |
| Order number | 6AG1417-4XT07-7AB0 |
| Firmware version | V7.0 |
| Interfaces | 1 x MPI/PROFIBUS DP, 1 x PROFIBUS DP, 2 x optionally pluggable PROFIBUS DP |
| PROFIBUS DP transmission rate, max. | 12 Mbit/s |
| Integrated work memory | 32 Mbyte; not expandable |
| Operating temperature | -25 °C to 70 °C |
Applications
- Central processing: Provides central processing in an S7-400 system.
- PROFIBUS DP communication: Performs PROFIBUS DP master and device communication.
- STEP 7 programming: Supports engineering with STEP 7 V5.4 or higher with HSP 261.
- Isochronous operation: Supports isochronous mode for PROFIBUS.
Key Features
- CPU 417-4 central processing unit: CPU 417-4 with firmware version V7.0 and hardware functional status 01.
- MPI and PROFIBUS DP interfaces: Interfaces include 1 x MPI/PROFIBUS DP, 1 x PROFIBUS DP, and 2 x optionally pluggable PROFIBUS DP interfaces.
- PROFIBUS DP communication: Supports PROFIBUS DP master and device functions with transmission rates up to 12 Mbit/s.
- Processing and memory: Typical processing time is 7.5 ns for bit, word, and fixed-point operations, and 15 ns for floating-point operations. Integrated work memory is 32 Mbyte and is not expandable.
- Conformal coating and temperature range: Has conformal coating and an ambient operating temperature of -25 °C to 70 °C.
Frequently Asked Questions
1. What interfaces does the Siemens 6AG1417-4XT07-7AB0 have?
It has 1 x MPI/PROFIBUS DP, 1 x PROFIBUS DP, and 2 x optionally pluggable PROFIBUS DP interfaces.
2. What is the maximum PROFIBUS DP transmission rate?
The maximum transmission rate is 12 Mbit/s.
3. What operating temperature does this CPU support?
The ambient operating temperature is -25 °C to 70 °C.
