Product Overview
Technical Summary
| Parameter | Value |
|---|---|

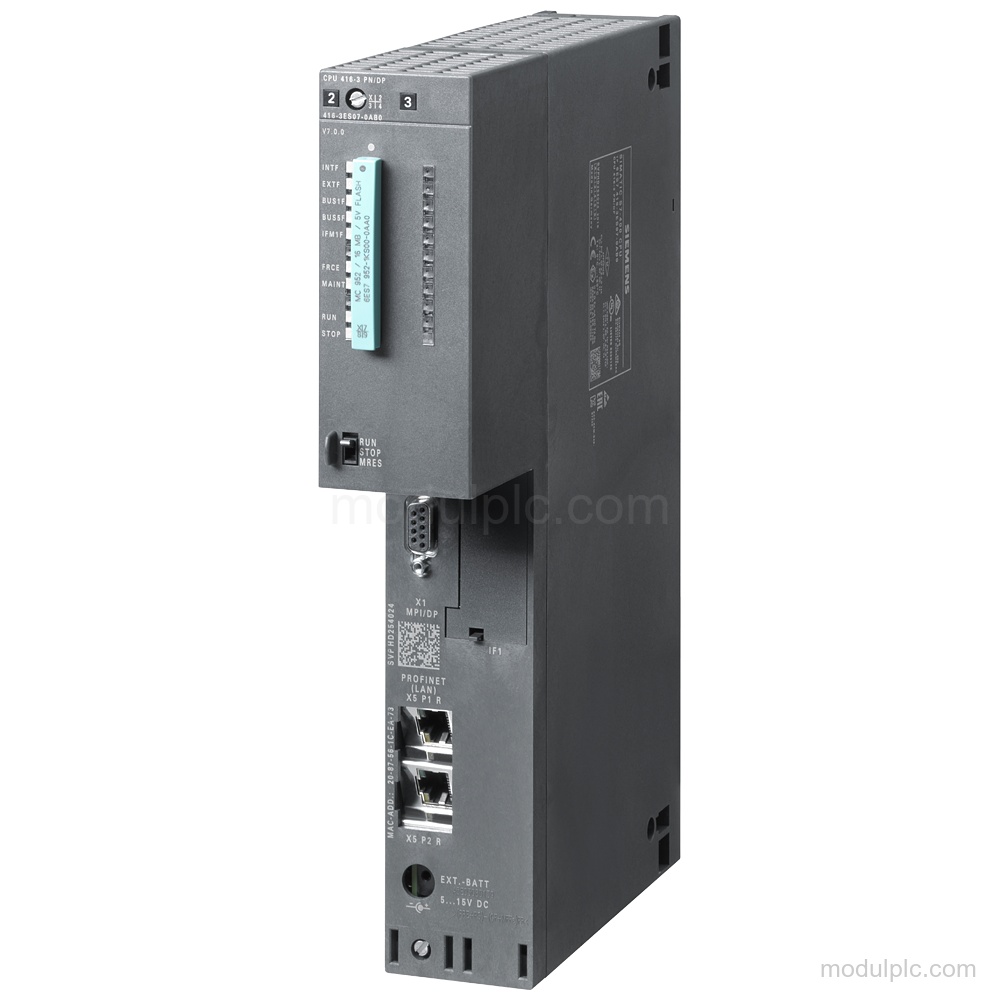

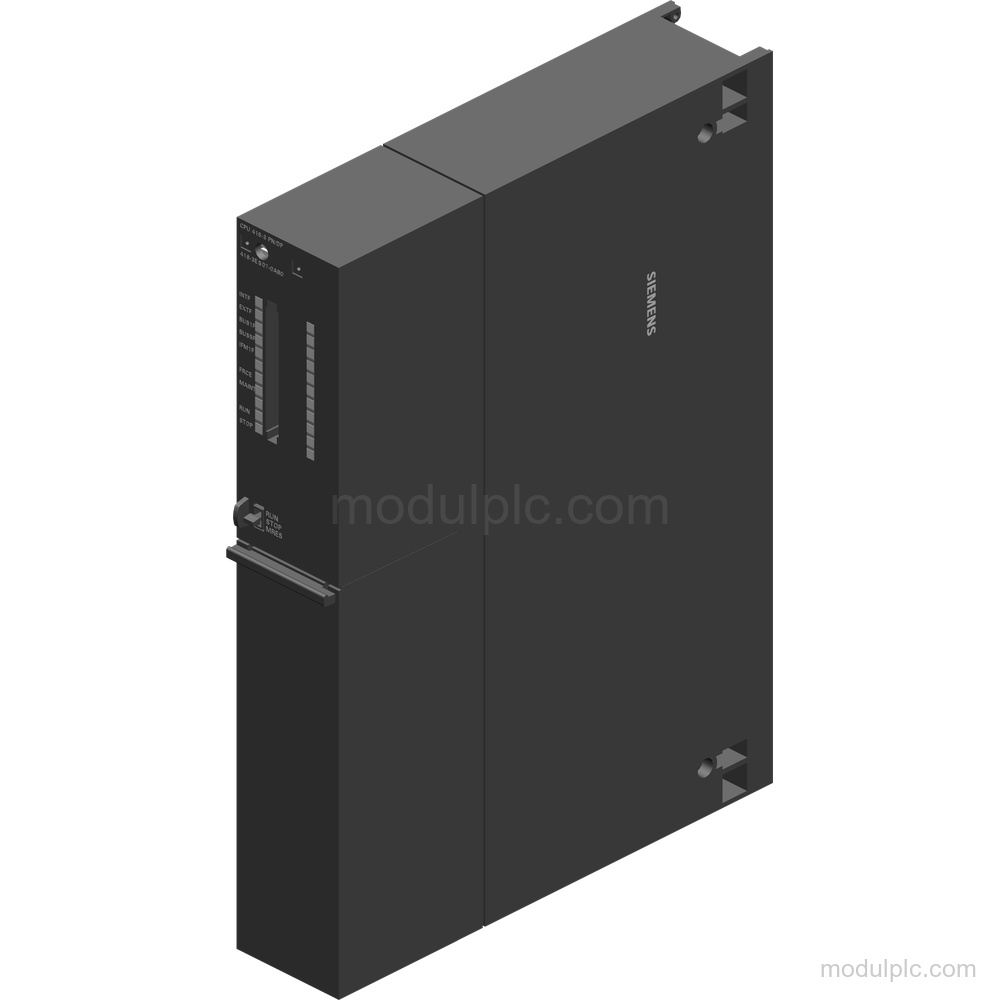

| Product model | 6AG1416-3ES07-7AB0 |
| CPU type | CPU 416-3 PN/DP |
| Firmware version | V7.0 |
| MPI/PROFIBUS DP transmission rate, max. | 12 Mbit/s |
| PROFINET ports | 2 |
| PROFINET IO Controllers, integrated | 1 |
| Integrated work memory | 16 Mbyte |
| Load memory, expandable maximum | 64 Mbyte |
| Operating temperature | -25 °C to 70 °C |
| Installation slots required | 2 |
Applications
- PROFINET data communication: The CPU supports PROFINET IO Controller, PROFINET IO device, and PROFINET CBA communication.
- PROFIBUS DP data communication: The CPU supports PROFIBUS DP master and PROFIBUS DP device communication, including DPV1 services.
- Open Industrial Ethernet communication: The CPU supports TCP/IP, ISO-on-TCP (RFC1006), and UDP through the integrated PROFINET interface and loadable FBs.
- Programming and diagnostics: The CPU supports STEP 7, status and control functions, forcing, diagnostic buffer access, and process diagnostic messages.
Key Features
- Central processing unit: CPU 416-3 PN/DP with firmware version V7.0 and HW functional status 01.
- Communication interfaces: 1 x MPI/PROFIBUS DP at up to 12 Mbit/s, 1 x PROFINET with 2 ports, and 1 optionally pluggable PROFIBUS DP interface via IF 964-DP.
- PROFINET communication: Supports PROFINET IO Controller, PROFINET IO device, PROFINET CBA, Open IE communication, web server, and media redundancy.
- PROFIBUS DP master: Supports up to 32 DP devices at up to 12 Mbit/s through the integrated interface and up to 125 DP devices through the plug-in interface.
- Memory and backup: Integrated work memory: 16 Mbyte; expandable: No. Load memory supports FEPROM and RAM Memory Cards up to 64 Mbyte, with battery backup for all data.
- SIPLUS environmental design: Conformal coating, operation from -25 °C to 70 °C, and protection against fouling according to EN 60664-3, Type 1 protection.
Frequently Asked Questions
1. Which communication interfaces does the Siemens 6AG1416-3ES07-7AB0 have?
It has 1 x MPI/PROFIBUS DP, 1 x PROFINET with 2 ports, and an optionally pluggable PROFIBUS DP interface via IF 964-DP.
2. What is the maximum MPI and PROFIBUS DP transmission rate?
The maximum transmission rate is 12 Mbit/s.
3. Does the CPU support PROFINET IO Controller and IO device functions?
Yes. It supports PROFINET IO Controller and PROFINET IO device functions.
4. What memory is integrated in the CPU?
It has 16 Mbyte of integrated work memory. Load memory is expandable with FEPROM or RAM Memory Cards up to 64 Mbyte.
5. What should be verified before requesting a quote?
Verify the exact order number, the required IF 964-DP interface option, communication interfaces, memory-card requirements, and installation space.
