Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | CPU 414-3 PN/DP |
| Interfaces | 1 x MPI/PROFIBUS DP, 1 x PROFINET (2 ports), 1 x optionally pluggable PROFIBUS DP |
| PROFINET IO Controller transmission rate, max. | 100 Mbit/s |
| MPI transmission rate, max. | 12 Mbit/s |
| PROFIBUS DP transmission rate, max. | 12 Mbit/s |
| Integrated work memory | 4 Mbyte |
| Firmware version | V7.0 |
| Power loss, typ. | 6.5 W |
| Ambient temperature during operation | -25 °C to 70 °C |
Applications
- PROFINET IO control: Supports PROFINET IO Controller and PROFINET IO device communication, including activation and deactivation of IO Devices.
- PROFIBUS DP communication: Supports PROFIBUS DP master and PROFIBUS DP device communication, including DPV1, SYNC/FREEZE, and direct data exchange.
- Open industrial Ethernet communication: Supports TCP/IP, ISO-on-TCP (RFC1006), and UDP via the integrated PROFINET interface and loadable FBs.
Key Features

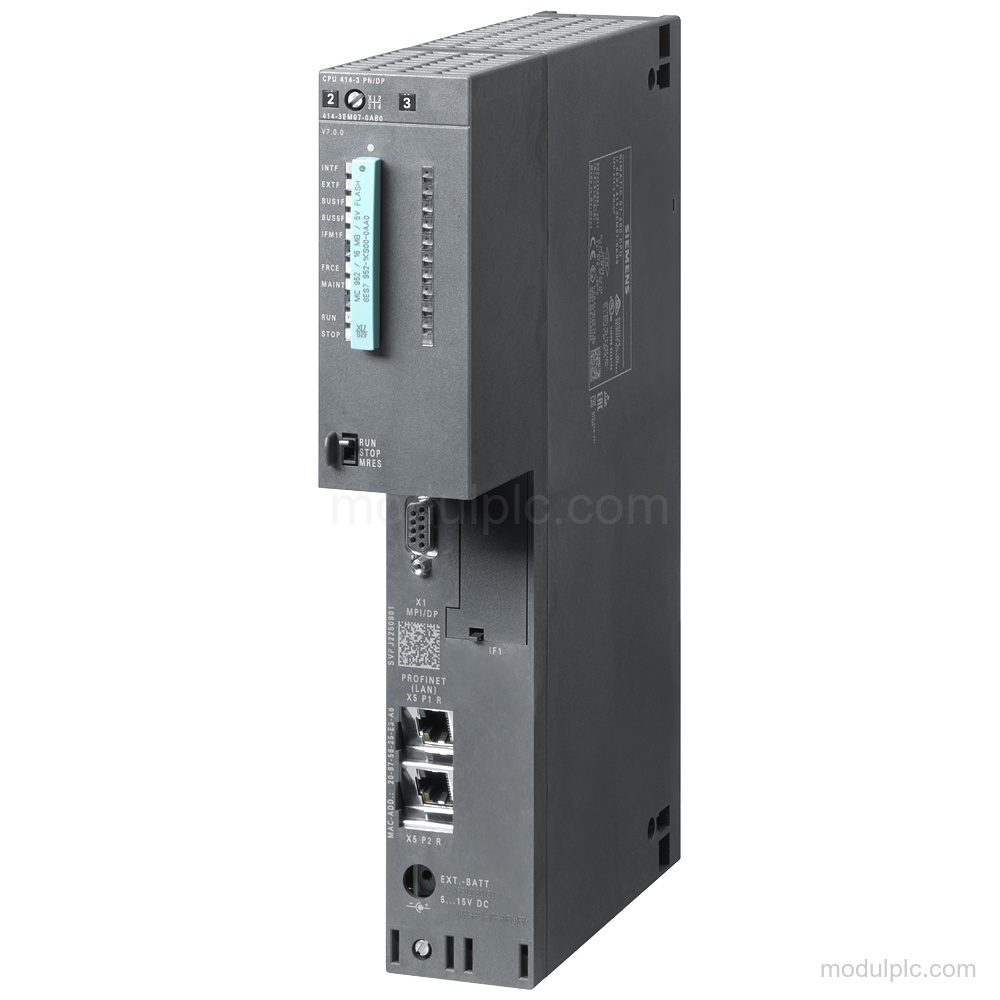

- CPU 414-3 PN/DP: Central processing unit with 4 Mbyte integrated work memory, firmware version V7.0, and firmware based on 6ES7414-3EM07-0AB0.
- Network interfaces: Interfaces include 1 x MPI/PROFIBUS DP, 1 x PROFINET with 2 ports, and 1 x optionally pluggable PROFIBUS DP interface using IF 964-DP.
- PROFINET communication: PROFINET IO Controller, PROFINET IO device, PROFINET CBA, Open IE communication, web server, media redundancy, and RJ 45 Ethernet interfaces are supported.
- Transmission rates: MPI and PROFIBUS DP transmission rates reach 12 Mbit/s; PROFINET IO Controller transmission rate reaches 100 Mbit/s.
- Protection and temperature: The unit has conformal coating and supports ambient operation from -25 °C to 70 °C.

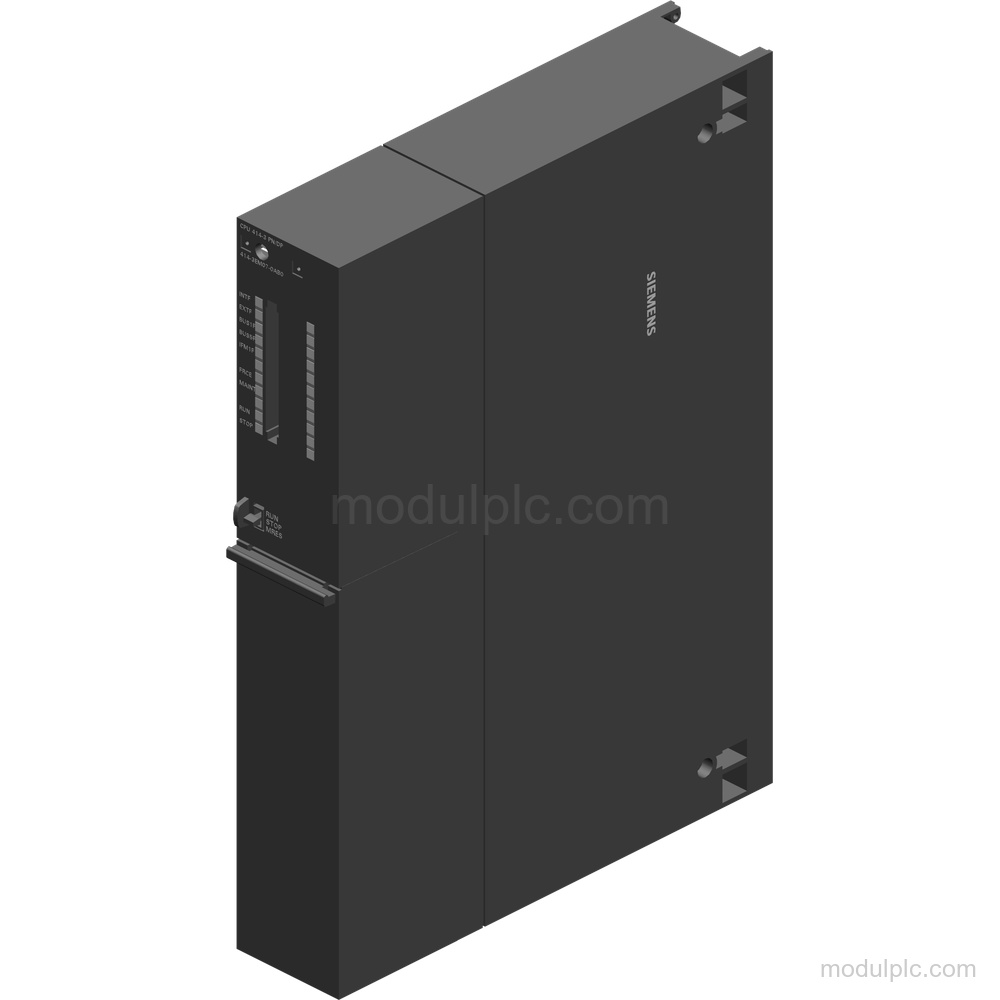

- Installation dimensions and weight: Dimensions are 50 mm wide, 290 mm high, and 219 mm deep; weight is approximately 900 g.
Frequently Asked Questions
1. Which interfaces does Siemens 6AG1414-3EM07-7AB0 provide?
It provides 1 x MPI/PROFIBUS DP, 1 x PROFINET with 2 ports, and 1 x optionally pluggable PROFIBUS DP interface using IF 964-DP.
2. What transmission rates are supported?
MPI and PROFIBUS DP support up to 12 Mbit/s. PROFINET IO Controller supports up to 100 Mbit/s.
3. Which PROFINET protocols and services are supported?
PROFINET IO Controller, PROFINET IO device, PROFINET CBA, Open IE communication, web server, and media redundancy are supported.
4. What are the operating temperature and dimensions?
Ambient operation is supported from -25 °C to 70 °C. Dimensions are 50 mm wide, 290 mm high, and 219 mm deep.
