Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Base model | 6ES7197-1LB00-0XA0 |
| Communication protocol | PROFIBUS DP |
| Transmission rate | 45.45 kbit/s to 12 Mbit/s |
| Supply voltage | 20.4 V to 28.8 V DC via bus module |
| Current consumption, max. | 300 mA |
| Diagnostics function | Yes |
| Potential separation to lower-level DP master system | Yes |
| IP degree of protection | IP20 |
| Operating ambient temperature | 0 °C to 60 °C |
| Installation altitude, max. | 5 000 m |
Key Features
- PROFIBUS DP communication: Supports PROFIBUS DP with a transmission rate from 45.45 kbit/s to 12 Mbit/s.
- Bus-module power supply: Power is supplied via the bus module, with a permissible DC range of 20.4 V to 28.8 V.
- DP master system capacity: Supports up to 31 DP devices, or 64 when using RS 485 repeaters or OLM/OBT; up to 9 RS 485 repeaters are supported.
- Diagnostics and potential separation: Has a diagnostics function and potential separation to the lower-level DP master system.
- Protection and conformal coating: Has IP20 protection and conformal coating for printed circuit board assemblies, Class 2 for high reliability.
- Dimensions and weight: Measures 40 mm wide, 125 mm high, and 130 mm deep; weight is approximately 200 g.
Frequently Asked Questions
1. Which protocol does 6AG1197-1LB00-4XA0 support?
It supports PROFIBUS DP.

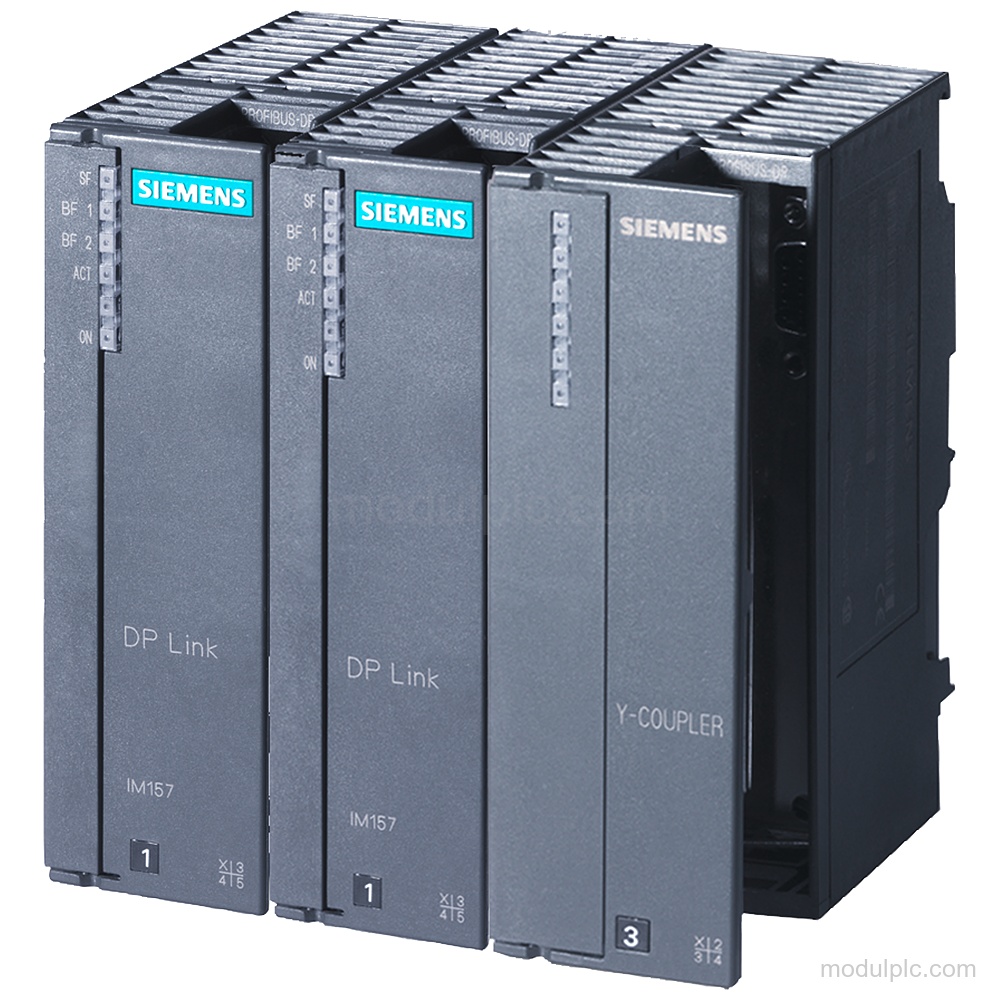

2. What transmission rate does the Y coupler support?
The transmission rate is 45.45 kbit/s to 12 Mbit/s.
3. What supply voltage range is permitted?
The permitted DC supply range is 20.4 V to 28.8 V, with power supplied via the bus module.
4. Does the coupler provide diagnostics?
Yes, it has a diagnostics function.
