Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module basis | 7MH4900-2AA01 |
| Supply voltage, rated | 24 V DC |
| Digital inputs | 7 |
| Digital outputs | 8 |
| Input signal 0 | -3 to +5 V |
| Input signal 1 | +15 to +30 V |
| Output signal 1, rated current | 0.5 A |
| Operating ambient temperature | -10 °C to 60 °C |
| Product lifecycle | Product cancellation |
Applications
- Dosing: Explicit application area for the calibratable electronic weighing system.
- Filling and bagging: Explicit application area for the calibratable electronic weighing system.
- Loading: Explicit application area for the calibratable electronic weighing system.
Key Features

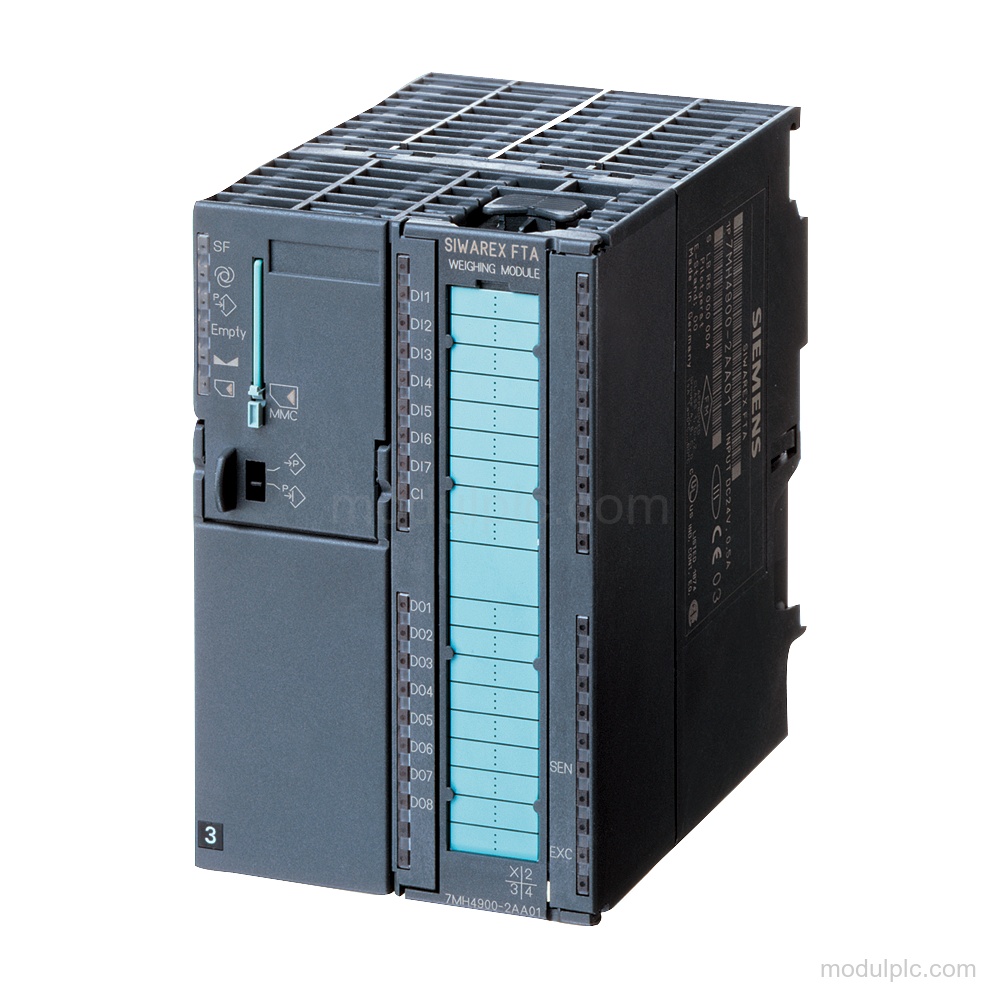

- Calibratable weighing system: Electronic weighing system for autonomous automatic scales, based on 7MH4900-2AA01.
- Digital I/O: Has 7 digital inputs and 8 digital outputs.
- 24 V supply: Rated supply voltage and load voltage L+ are 24 V; permissible load-voltage range is 20.4 V to 28.8 V.
- Signal levels: Input signal 0: -3 to +5 V; input signal 1: +15 to +30 V. Output signal 1 rated current: 0.5 A.
- Environmental and mechanical data: Operating ambient temperature is -10 °C to 60 °C. Dimensions are 80 mm wide, 125 mm high and 130 mm deep; weight is approximately 600 g.
Frequently Asked Questions
1. What function does the Siemens 6AG1900-2AA01-4AA0 provide?
It is a calibratable electronic weighing system for autonomous automatic scales, based on 7MH4900-2AA01.
2. How many digital inputs and outputs does the module have?
It has 7 digital inputs and 8 digital outputs.
3. What supply voltage does the module use?
The rated supply voltage and load voltage L+ are 24 V DC. The permissible load-voltage range is 20.4 V to 28.8 V.
4. Which applications are explicitly supported?
The supplied application areas are dosing, filling and bagging, and loading.
