Product Overview
Technical Summary
| Parameter | Value |
|---|---|

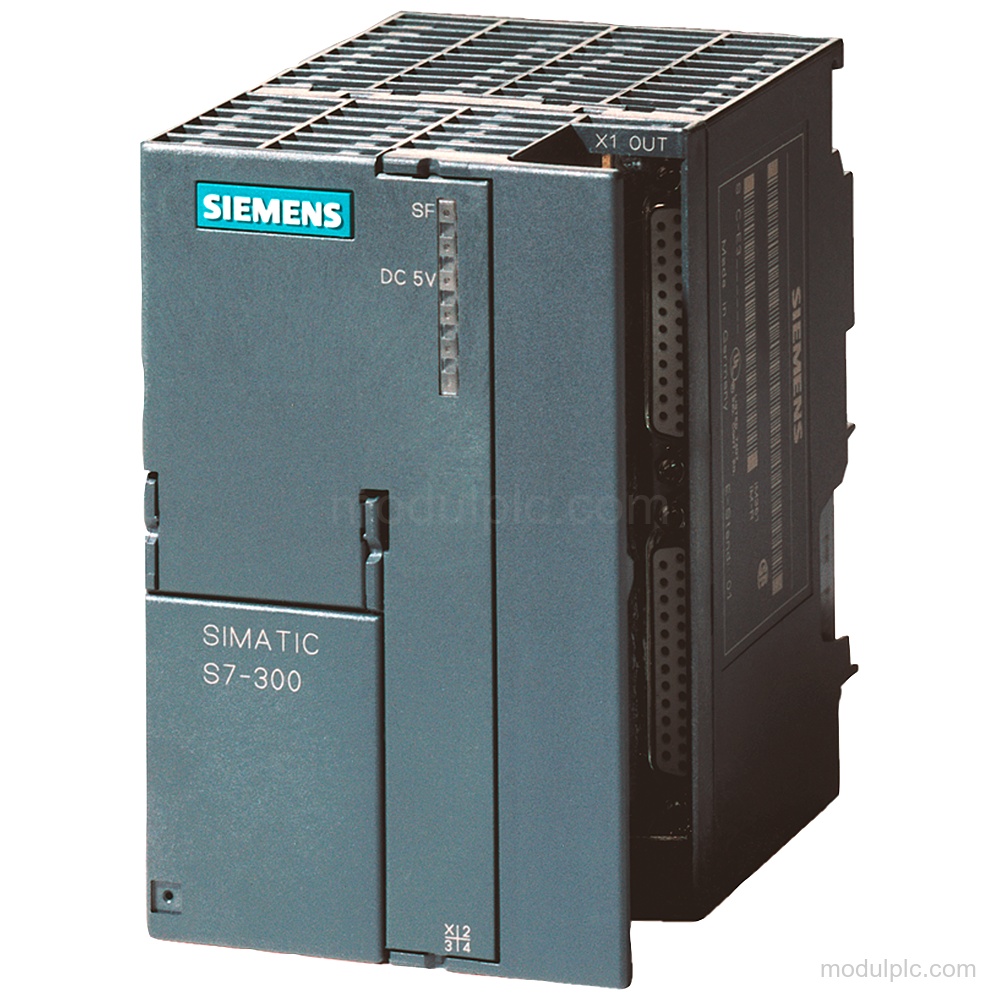

| Module type | SIPLUS S7-300 IM 365 |
| Based on | 6ES7365-0BA01-0AA0 |
| Extension-rack connection | IM 365 |
| Supplied components | 2 modules + 1 m connecting cable |
| Rated supply | 24 V DC |
| Backplane bus input current, max. | 100 mA at 5 V DC |
| Power loss, typ. | 0.5 W |
Applications
- Extension-rack connection: Connects an extension rack through the IM 365 connection.
Key Features
- Extension-rack connection: IM 365 connection for connecting an extension rack; supplied without a communications bus.
- Supplied components: Includes 2 modules and a 1 m connecting cable.
- Conformal coating: SIPLUS version with conformal coating and a temperature range of -25…+60 °C.
- Rated supply: Rated value: 24 V DC. A power supply according to EN 50155 shall be used for railway applications.
- Backplane bus input current: Maximum input current from the backplane bus: 100 mA at 5 V DC.
- Typical power loss: Typical power loss: 0.5 W.
Frequently Asked Questions
1. What is the function of the 6AG1365-0BA01-2AA0?
It provides an IM 365 connection for connecting an extension rack.
2. What is included with this module?
It includes 2 modules and a 1 m connecting cable.
3. Does it include a communications bus?
It is supplied without a communications bus.
4. What are the supply and input-current values?
The rated supply is 24 V DC. Maximum input current from the backplane bus is 100 mA at 5 V DC.
