Product Overview
Technical Summary
| Parameter | Value |
|---|---|

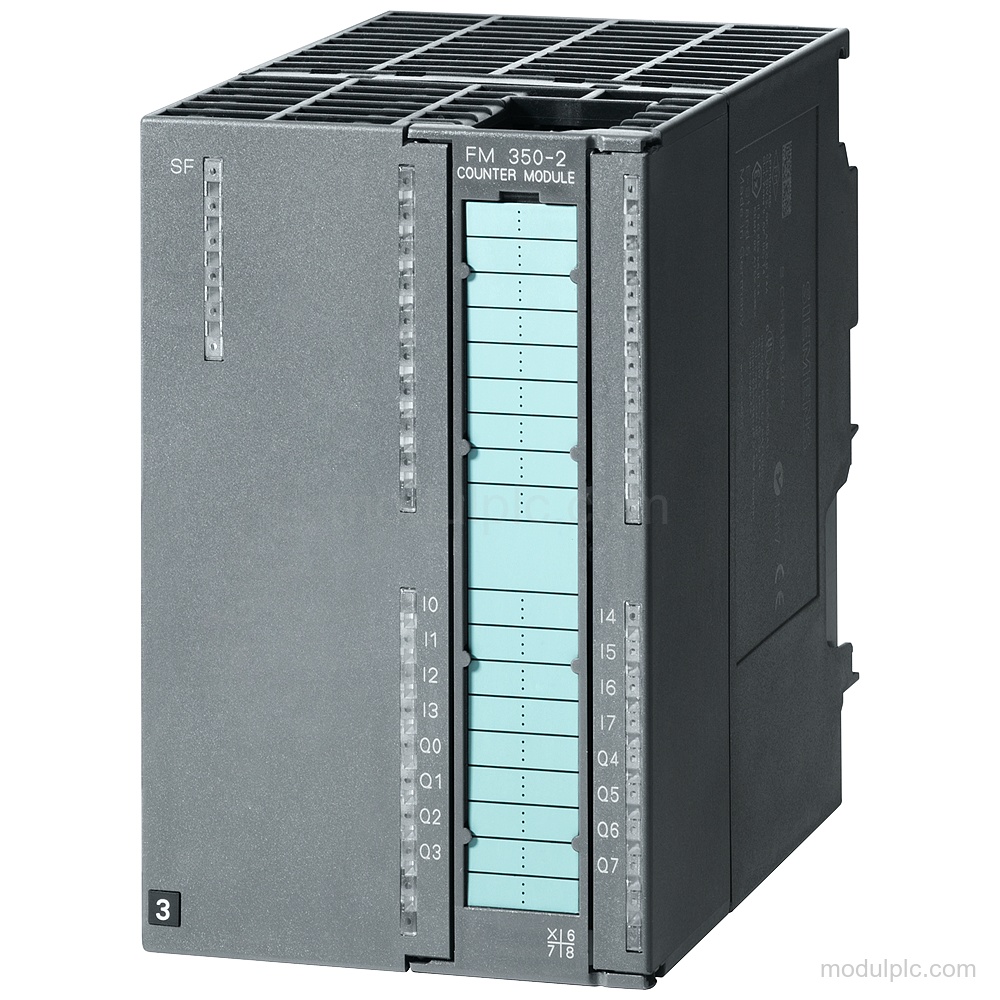

| Module type | FM350-2 counter module |
| Counter channels | 8 channels |
| Maximum counting frequency | 20 kHz; Incremental encoder: 10 kHz |
| Rated auxiliary and load voltage | 24 V DC |
| Permissible voltage range | 20.4 V to 28.8 V |
| Digital inputs | 8 |
| Digital outputs | 8 |
| Rated digital output current | 0.5 A |
| Typical power loss | 10 W |
Applications
- Counting: Supports counting with 24 V encoders and other supported encoder types.
- Frequency measurement: Supports frequency measurement with a maximum counting frequency of 20 kHz.
- Speed measurement: Supports speed measurement.
- Cycle duration measurement and dosing: Supports cycle duration measurement and dosing.
Key Features
- Counter channels: 8 channels and 8 counter inputs; counter format is 32 bit or ±31 bit.
- Counting frequency: Maximum counting frequency is 20 kHz; with an incremental encoder, it is 10 kHz.
- Encoder support: Supports 24 V encoders, asymmetrical incremental encoders, 24 V initiators, 24 V directional elements, NAMUR encoders, and 2-wire sensors.
- Supply and power: Rated auxiliary and load voltage is 24 V DC, with a permissible range of 20.4 V to 28.8 V; typical power loss is 10 W.
- Inputs and outputs: Has 8 digital inputs and 8 digital outputs. Digital outputs provide a rated signal-1 output current of 0.5 A and short-circuit protection.
- Diagnostics and configuration: Provides readable diagnostic information, parameterizable diagnostic alarms and hardware interrupts, and a red SF group error LED.
Frequently Asked Questions
1. How many counter channels does 6AG1350-2AH01-4AE0 have?
It has 8 counter channels and 8 counter inputs, with a counter format of 32 bit or ±31 bit.
2. What counting frequency does this FM350-2 module support?
The maximum counting frequency is 20 kHz; with an incremental encoder, it is 10 kHz.
3. Which encoder types can be connected?
It supports asymmetrical incremental encoders, 24 V initiators, 24 V directional elements, NAMUR encoders to DIN 19 234, and 2-wire sensors.
4. What supply voltage does the module require?
The rated auxiliary and load voltage is 24 V DC, with a permissible range of 20.4 V to 28.8 V.
