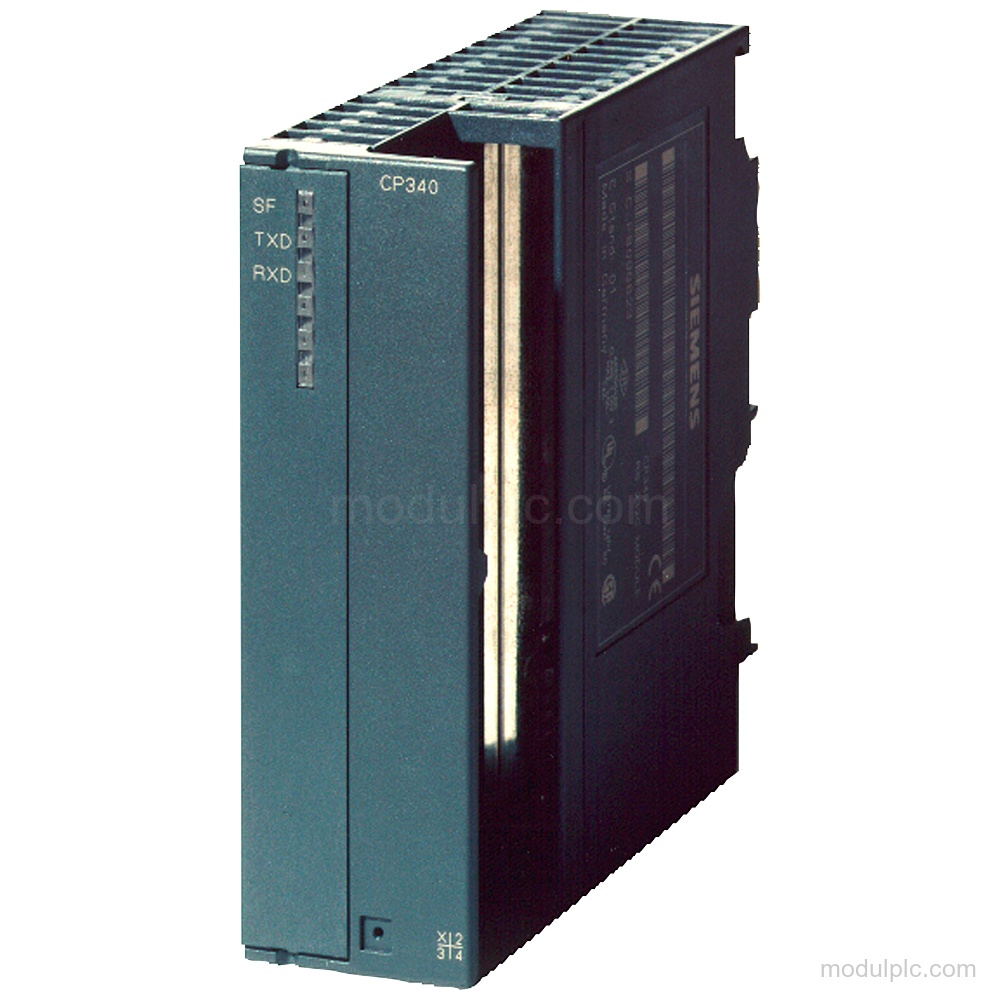

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | SIPLUS S7-300 communications processor |
| Interface | 1 isolated RS-232C (V.24) interface |
| Transmission rate | 2.4 kbit/s to 19.2 kbit/s |
| Supply | Power supply via backplane bus 5 V; 24 V DC: No |
| Input current | From backplane bus 5 V DC, max. 165 mA |
| Connector | 9-pin sub D connector |
| Integrated protocols | 3964 (R), ASCII |
| Power loss | 0.6 W typ.; 0.85 W max. |
| Diagnostics LEDs | Receive RxD, Transmit TxD, group error SF (red) |
| Based on | 6ES7340-1AH02-0AE0 |
| Conformal coating | Yes |
Applications
- RS-232C communication: The communications processor provides data communication through its isolated RS-232C (V.24) interface using 3964 (R) or ASCII.
- Printer communication: The point-to-point connection supports HP-Deskjet, HP-Laserjet, IBM-Proprinter, and user-defined printers.
Key Features
- RS-232C interface: 1 isolated RS-232C (V.24) interface with transmission rates from 2.4 kbit/s to 19.2 kbit/s.
- Protocols: Integrated protocol drivers for 3964 (R) and ASCII; RK 512 and customer-specific driver reloading are not available.
- Backplane bus supply: Power supply via backplane bus 5 V; input current from backplane bus 5 V DC, max. 165 mA.
- Point-to-point connection: Maximum cable length: 15 m. Connector: 9-pin sub D connector.
- Telegram and diagnostics: Maximum telegram length is 1 024 byte for 3964 (R) and ASCII. LEDs indicate Receive RxD, Transmit TxD, and group error SF (red).
- SIPLUS construction: SIPLUS S7-300 spare part based on 6ES7340-1AH02-0AE0 with conformal coating and a product cancellation lifecycle status.
Frequently Asked Questions
1. What interface does the Siemens 6AG1340-1AH02-2AE0 have?
It has 1 isolated RS-232C (V.24) interface with a transmission rate from 2.4 kbit/s to 19.2 kbit/s.
2. Which protocols are integrated?
The integrated protocol drivers are 3964 (R) and ASCII. RK 512 and customer-specific driver reloading are not available.
3. How is the module supplied?
24 V DC is not the rated supply. Power is supplied via the backplane bus 5 V, with input current from the backplane bus 5 V DC of max. 165 mA.
4. Which connector and cable length does it use?
It uses a 9-pin sub D connector, and the maximum cable length is 15 m.
