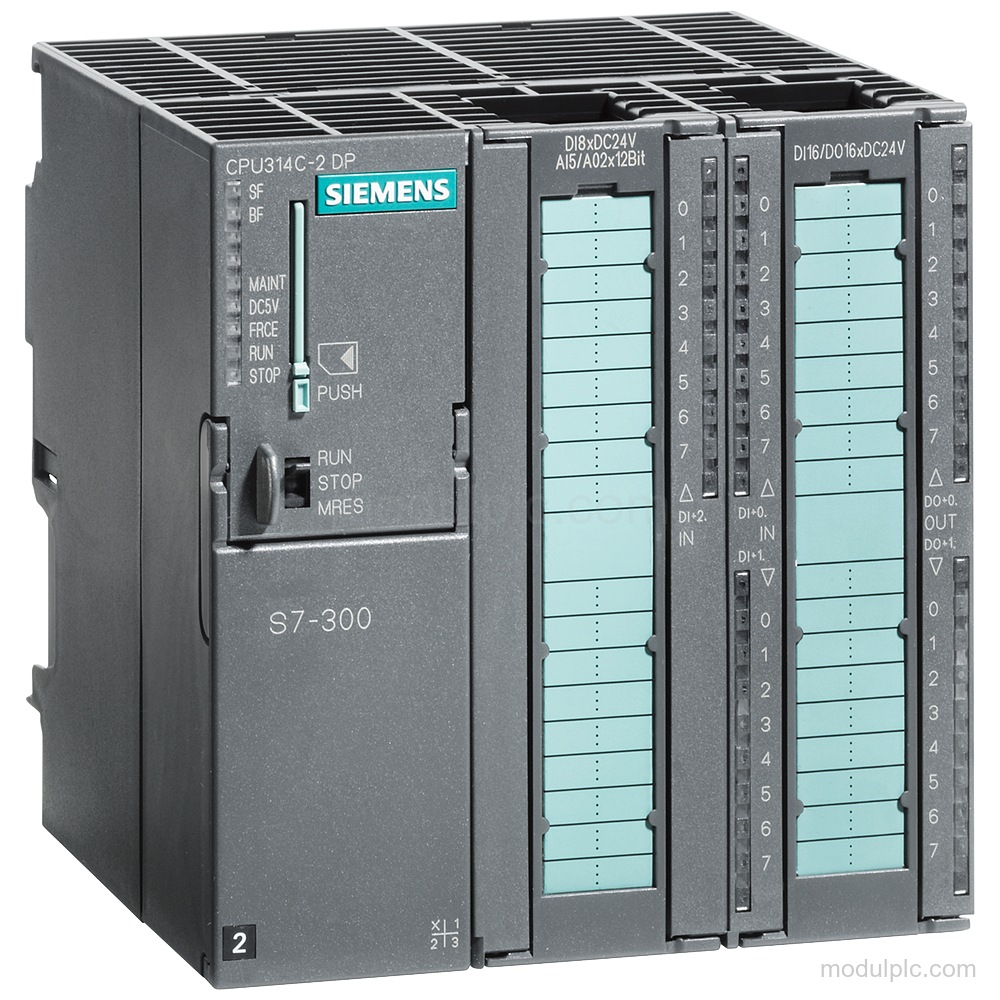

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | CPU 314C-2 DP |
| Digital I/O | 24 DI / 16 DO |
| Analog I/O | 4 AI / 2 AO |
| Supply voltage | 24 V DC; 19.2 V to 28.8 V permissible range |
| Work memory | 192 kbyte, integrated |
| Communication interfaces | 2 integrated RS 485; MPI and PROFIBUS DP |
| PROFIBUS DP transmission rate | 12 Mbit/s maximum |
| Counter frequency | 60 kHz maximum |
| Pulse output frequency | 2.5 kHz maximum |
| Front connector | 2x 40-pole |
Applications
- Signal acquisition and output control: The integrated digital and analog I/O acquire voltage, current, resistance and Pt 100 signals and control voltage or current outputs.
- PROFIBUS DP communication: The integrated DP interface supports PROFIBUS DP master and device communication.
- High-speed counting and pulse output: Four counters support frequency measurement up to 60 kHz, while four pulse outputs support pulse-width modulation up to 2.5 kHz.
Key Features
- Integrated I/O: 24 digital inputs, 16 digital outputs, 4 analog inputs and 2 analog outputs.
- CPU and memory: CPU 314C-2 DP with 192 kbyte integrated work memory and plug-in MMC load memory; MMC required.
- Supply and protection: 24 V DC rated supply with a permissible range of 19.2 V to 28.8 V; conformal coating.
- Communication interfaces: 2 integrated RS 485 interfaces for MPI and PROFIBUS DP; PROFIBUS DP master and device are supported on the second interface.
- Technological functions: 4 counters with counting frequency up to 60 kHz, 4 pulse outputs with pulse-width modulation up to 2.5 kHz, and an integrated PID controller.
Frequently Asked Questions
1. How many integrated I/O channels does 6AG1314-6CH04-7AB0 have?
It has 24 digital inputs, 16 digital outputs, 4 analog inputs and 2 analog outputs.
2. Which communication interfaces and protocols are available?
It has 2 integrated RS 485 interfaces for MPI and PROFIBUS DP. The integrated DP interface supports PROFIBUS DP master and device communication.
3. What must be verified before ordering this CPU?
Verify the 24 V DC supply, the 19.2 V to 28.8 V permissible supply range, the 2x 40-pole front connector and the required Micro Memory Card.
