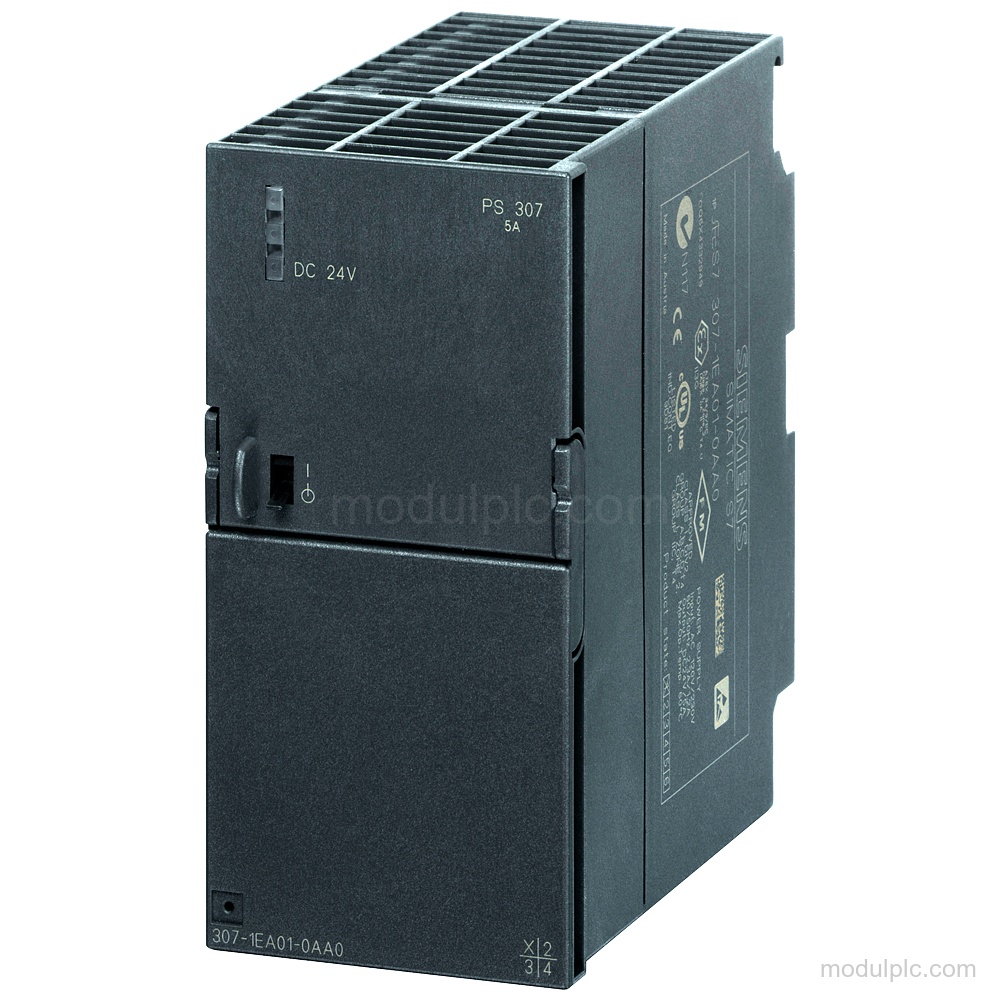

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | SIPLUS S7-300 power supply |
| Based on | 6ES7307-1EA01-0AA0 |
| Input voltage | 120 V AC or 230 V AC |
| Input frequency | 47 Hz to 63 Hz |
| Output voltage | 24 V DC |
| Output current | 5 A; 3 A at > 60 °C |
| Output protection | Electronic short-circuit protection; overvoltage cutoff at < 28.8 V with automatic restart |
| Status indication | Green LED for 24 V output OK |
| Conformal coating | Yes |
| Power loss | 18 W; approx., at Ua rated, Ia rated |
| Product lifecycle | Product cancellation |
Applications
- AC-to-DC power supply: Supplies 24 V DC from a 120/230 V AC input for the supplied power-supply function.
Key Features
- AC input: Rated input values are 120 V AC with a permissible range of 85 to 132 V AC, or 230 V AC with a permissible range of 170 to 264 V AC.
- 24 V DC output: Rated output voltage is 24 V DC, with a permissible range of 23.27 V to 24.72 V.
- 5 A current output: Rated current output is 5 A; 3 A at temperatures above 60 °C. The output can be switched in parallel.
- Protection and restart: The output has electronic short-circuit protection and overvoltage protection with cutoff at < 28.8 V and automatic restart.
- Status and isolation: A green LED indicates 24 V output status. Primary-to-secondary potential separation is provided, with SELV output voltage Ua according to EN 60950-1 and EN 50178.
Frequently Asked Questions
1. What input voltage ranges does the 6AG1307-1EA01-7AA0 support?
It supports 120 V AC with a permissible range of 85 to 132 V AC, or 230 V AC with a permissible range of 170 to 264 V AC.
2. What output does this SIPLUS S7-300 power supply provide?
It provides 24 V DC with a rated current output of 5 A; 3 A at temperatures above 60 °C.
3. Does the output include short-circuit and overvoltage protection?
Yes. It has electronic short-circuit protection and overvoltage protection with cutoff at < 28.8 V and automatic restart.
