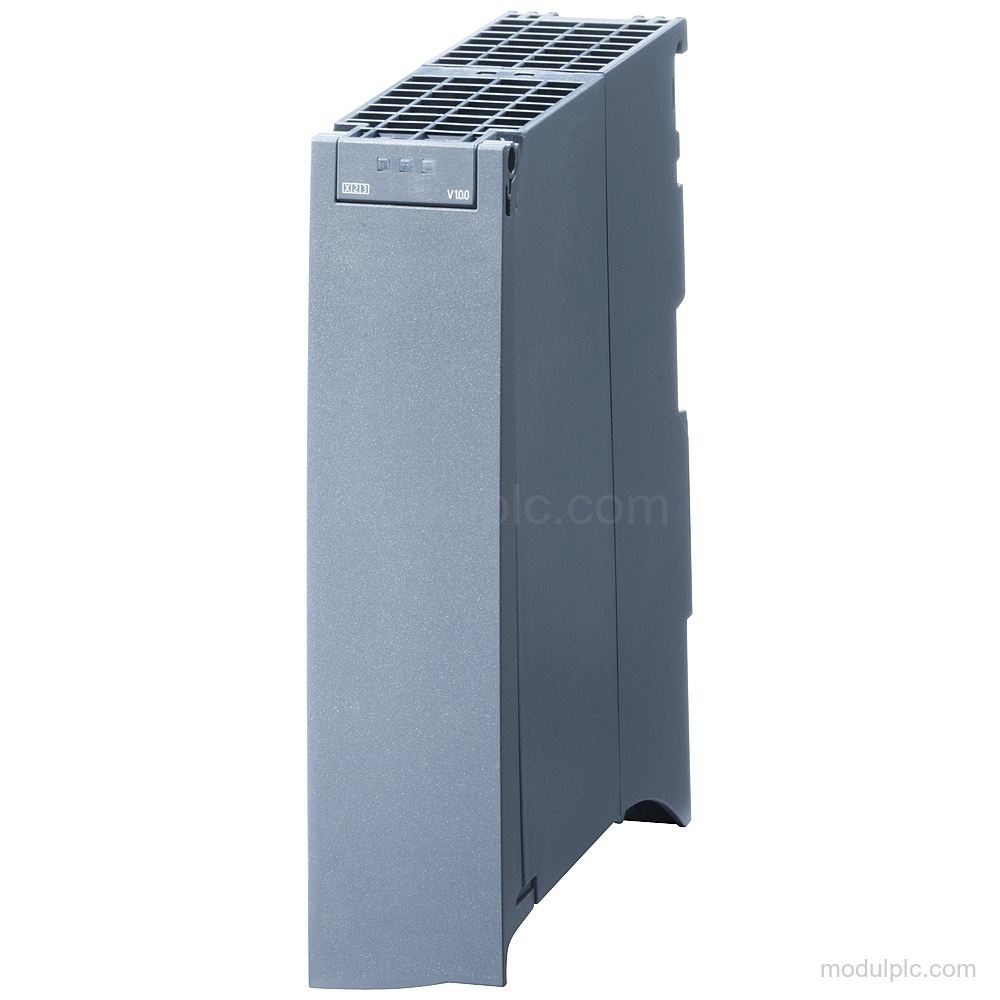

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | SIPLUS S7-1500 communications module |
| Serial connection | RS-232 |
| Supported modes | Freeport, 3964 (R), USS |
| Communication speed | 19200 Kbit/s |
| Connector | 9-pin D-sub plug |
| Temperature and start up | -40…+70 °C; start up -25 °C |
| Coating | Conformal coating |
| Product lifecycle | Announcement of product phase-out |
Applications
- Serial communication: Provides a serial connection using RS-232 with Freeport, 3964 (R) or USS.
Key Features
- Serial communication: Communications module for serial connection via RS-232.
- Supported communication modes: Supports Freeport, 3964 (R) and USS.
- Communication speed: 19200 Kbit/s.
- Environmental design: Has conformal coating and -40…+70 °C; start up -25 °C.
- Product lifecycle: Announcement of product phase-out.
- Connection: 9-pin D-sub plug.
Frequently Asked Questions
1. What communication modes does 6AG1540-1AD00-7AA0 support?
It supports Freeport, 3964 (R) and USS via RS-232.
2. What connector does this communications module use?
It uses a 9-pin D-sub plug.
3. What should be verified before requesting a quote?
Verify the RS-232 serial connection, required communication mode, 19200 Kbit/s speed, -40…+70 °C range, start up -25 °C, and the product phase-out announcement.
