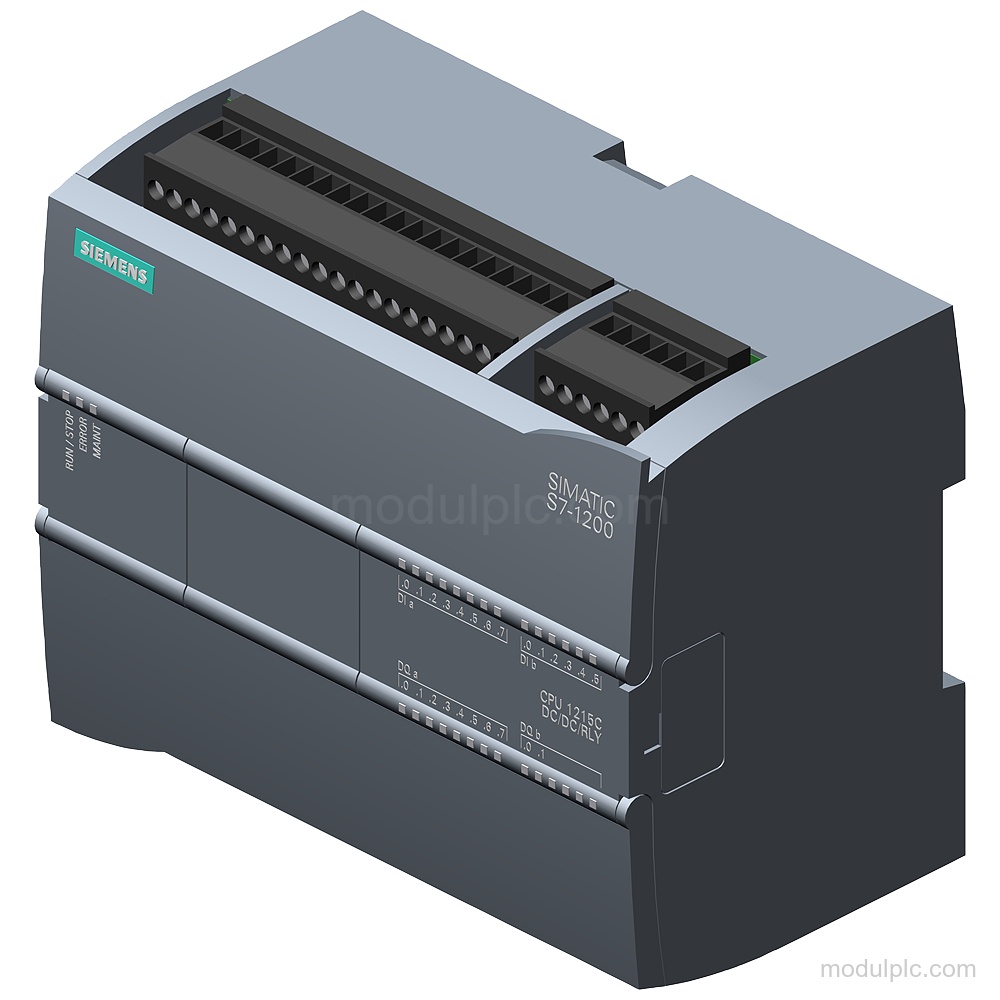

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | CPU 1215C DC/DC/relay |
| Digital inputs | 14; 6 usable for HSC |
| Relay outputs | 10; 2 A maximum with resistive load |
| Analog inputs | 2; 0 to +10 V |
| Analog outputs | 2; 0 to 20 mA |
| PROFINET ports | 2; RJ 45 Ethernet, integrated switch |
| PROFINET transmission rate | 100 Mbit/s maximum |
| Supply | DC 20.4-28.8 V DC; rated value 24 V DC |
| Communication protocols | PROFINET IO, OPC UA, TCP/IP, MODBUS, PROFIBUS with required CM |
| Protection | IP20 |
Applications
- Digital signal acquisition: Acquires digital signals through 14 integrated digital inputs, including 6 inputs usable for HSC functions.
- Relay output control: Controls outputs through 10 integrated relay outputs with a maximum resistive-load capacity of 2 A.
- PROFINET communication: Provides PROFINET IO Controller and PROFINET IO device communication through 2 PROFINET ports.
- Process control: Supports PID controller functions and controlled positioning, with up to 8 position-controlled positioning axes.
Key Features
- SIPLUS CPU 1215C: Compact CPU 1215C DC/DC/relay based on 6ES7215-1HG40-0XB0, with conformal coating and a temperature range of -40…+60 °C; start up: -25 °C.
- Integrated I/O: 14 integrated digital inputs, including 6 usable for HSC functions, 10 relay outputs, 2 analog inputs, and 2 analog outputs.
- PROFINET interfaces: 2 PROFINET ports with RJ 45 Ethernet connectors and an integrated switch; transmission rate up to 100 Mbit/s.
- Communication protocols: Supports PROFINET IO Controller, PROFINET IO device, SIMATIC communication, OPC UA Server, TCP/IP, MODBUS, PROFIBUS with the required CM, and MRP.
- Power supply: DC 20.4-28.8 V DC supply range; rated value 24 V DC. CPU-only current consumption is 500 mA, with 1 500 mA maximum for the CPU with all expansion modules.
- Diagnostics and installation: Includes diagnostic buffer, RUN/STOP, ERROR, and MAINT LEDs, 2 configurable traces, and IP20 protection. Maximum configuration: 3 communication modules, 1 signal board, and 8 signal modules.
Frequently Asked Questions
1. What I/O does the Siemens 6AG1215-1HG40-5XB0 provide?
It has 14 integrated digital inputs, 10 relay outputs, 2 analog inputs, and 2 analog outputs. Six digital inputs are usable for HSC functions.
2. Which PROFINET connections are available?
The CPU has 2 PROFINET ports with RJ 45 Ethernet connectors and an integrated switch. The maximum transmission rate is 100 Mbit/s.
3. Which communication protocols does this CPU support?
It supports PROFINET IO Controller, PROFINET IO device, SIMATIC communication, OPC UA Server, TCP/IP, MODBUS, and PROFIBUS with CM 1243-5 or CM 1242-5 as required.
4. What should be verified before requesting a quote?
Verify the DC 20.4-28.8 V DC supply, required I/O and communication functions, available mounting configuration, and the IP20 protection requirement.
