Product Overview
Technical Summary
| Parameter | Value |
|---|---|

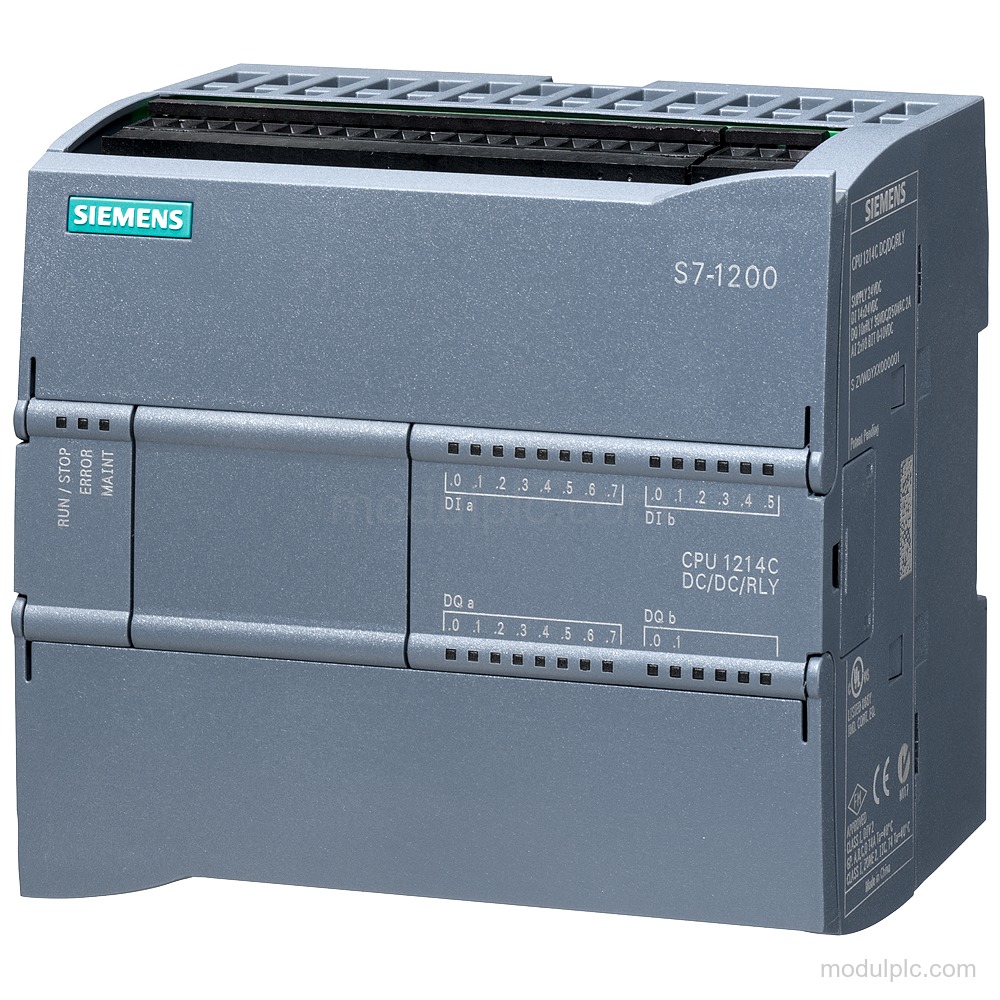

| Product type | CPU 1214C DC/DC/relay |
| Onboard digital inputs | 14 |
| Onboard relay outputs | 10 |
| Analog inputs | 2; 0 to +10 V |
| PROFINET interfaces | 1; up to 100 Mbit/s |
| Supply | DC 20.4 V to 28.8 V DC |
| Work memory | 100 kbyte |
| Load memory | 4 Mbyte |
| Firmware version | V4.1 |
| Protection | IP20 |
| Conformal coating | -20…+60 °C |
| Power loss, typ. | 12 W |
Applications
- Digital signal acquisition and output control: Acquires digital signals through 14 digital inputs and controls outputs through 10 relay outputs.
- Analog signal acquisition: Acquires voltage signals through 2 analog inputs in the 0 to +10 V range.
- Position and process control: Provides controlled positioning, PID control, frequency measurement and alarm inputs.
- Industrial communication: Exchanges data through PROFINET, OPC UA Server, MODBUS and S7 communication.
Key Features
- Onboard I/O: 14 digital inputs at 24 V DC, 10 relay outputs with 2 A maximum resistive load, and 2 analog inputs for 0 to +10 V.
- PROFINET interface: 1 isolated PROFINET interface with 1 RJ 45 port and transmission rate up to 100 Mbit/s.
- Communication protocols: Supports PROFINET IO Controller, PROFINET IO device, SIMATIC communication, OPC UA Server, MODBUS, PROFIBUS with the required CM, and TCP/IP.
- Supply and memory: DC supply: 20.4 V to 28.8 V DC. Integrated work memory: 100 kbyte; load memory: 4 Mbyte.
- Installation and protection: Compact CPU with conformal coating, IP20 degree of protection, and shielded cable length up to 500 m; technological functions: 50 m.
Frequently Asked Questions
1. What onboard I/O does 6AG1214-1HG40-4XB0 have?
It has 14 digital inputs, 10 relay outputs and 2 analog inputs for 0 to +10 V. It has 0 analog outputs.
2. Which PROFINET interface and protocols are available?
It has 1 isolated PROFINET interface with 1 RJ 45 port and up to 100 Mbit/s. It supports PROFINET IO Controller, PROFINET IO device, OPC UA Server, MODBUS and S7 communication.
3. What supply voltage and memory are provided?
The DC supply range is 20.4 V to 28.8 V DC. Work memory is 100 kbyte and load memory is 4 Mbyte.
