Product Overview
Technical Summary
| Parameter | Value |
|---|---|

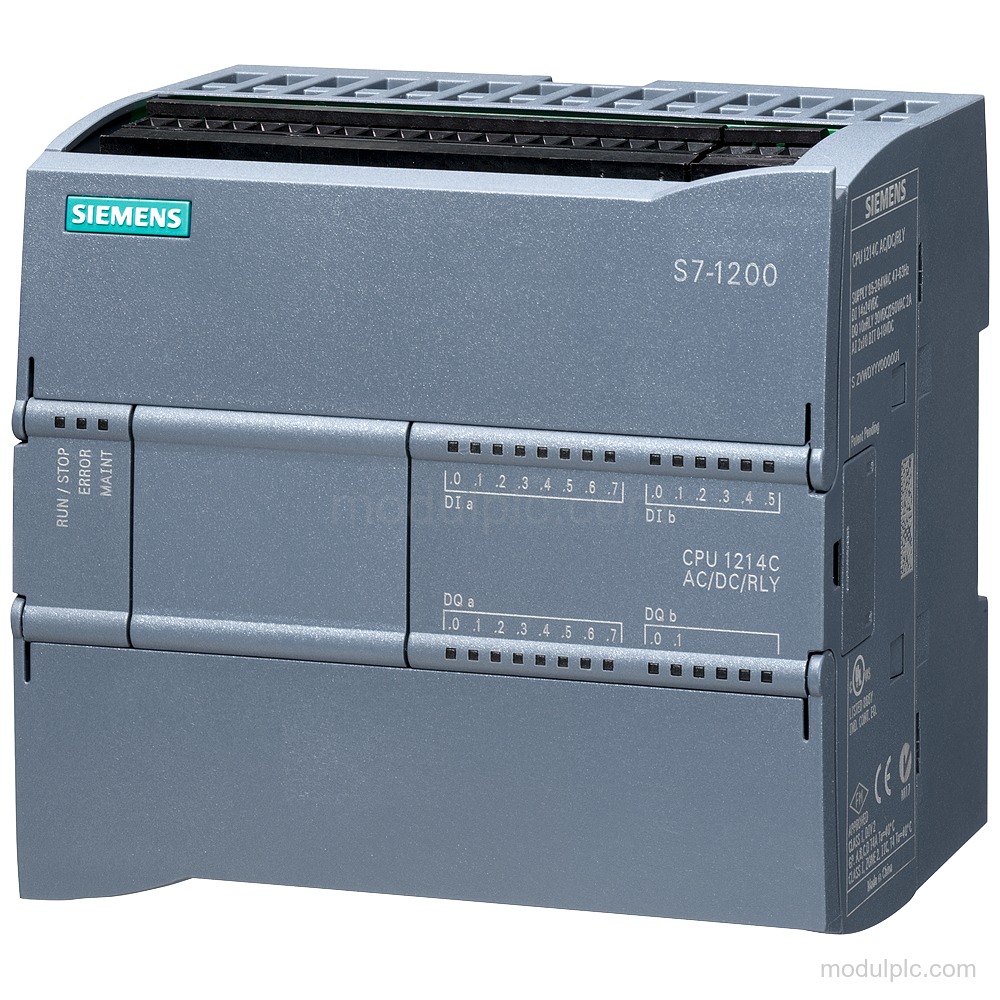

| Product type | CPU 1214C AC/DC/relay |
| Digital inputs | 14; Integrated |
| Digital outputs | 10; Relays |
| Analog inputs | 2; 0 to +10 V |
| PROFINET interfaces | 1 |
| Supply | 85 V AC to 264 V AC; 47 Hz to 63 Hz |
| Work memory | 100 kbyte |
| Load memory | 4 Mbyte |
| Protection | IP20 |
| Operating temperature | -40 °C to 60 °C; start-up at -25 °C |
| Firmware version | V4.1 |
Applications
- Digital signal acquisition: Acquires signals through 14 integrated 24 V DC digital inputs, including 6 inputs usable for HSC functions.
- Relay output control: Controls loads through 10 relay outputs with a maximum resistive-load switching capacity of 2 A.
- PROFINET communication: Communicates as a PROFINET IO Controller and PROFINET IO device through the integrated PROFINET interface.
Key Features
- AC/DC/relay CPU: CPU 1214C AC/DC/relay with conformal coating and Firmware version V4.1.
- Integrated I/O: 14 integrated digital inputs at 24 V DC, 10 relay outputs, and 2 analog voltage inputs with a 0 to +10 V range.
- Power supply: AC supply range: 85 V AC to 264 V AC at 47 Hz to 63 Hz.
- PROFINET interface: 1 isolated PROFINET interface with RJ 45 connection, up to 100 Mbit/s, and PROFINET IO Controller and IO device support.
- Memory and diagnostics: 100 kbyte work memory, 4 Mbyte load memory, diagnostic buffer, 2 configurable traces, and RUN/STOP, ERROR, and MAINT LEDs.
- Installation and protection: 110 mm wide, 100 mm high, 75 mm deep, approximately 455 g, with IP20 protection.
Frequently Asked Questions
1. How many integrated I/O points does the 6AG1214-1BG40-5XB0 have?
It has 14 integrated digital inputs, 10 relay outputs, and 2 analog inputs.
2. What analog signal range is supported?
The 2 analog inputs support a rated voltage range of 0 to +10 V.
3. Which PROFINET functions are supported?
The 1 PROFINET interface supports PROFINET IO Controller and PROFINET IO device functions, with a maximum transmission rate of 100 Mbit/s.
4. What supply does this CPU require?
The permissible AC supply range is 85 V AC to 264 V AC at 47 Hz to 63 Hz.
5. What is included in the selected configuration?
It is without a SIMATIC Memory Card; the load memory is 4 Mbyte and plug-in load memory requires a SIMATIC Memory Card.
