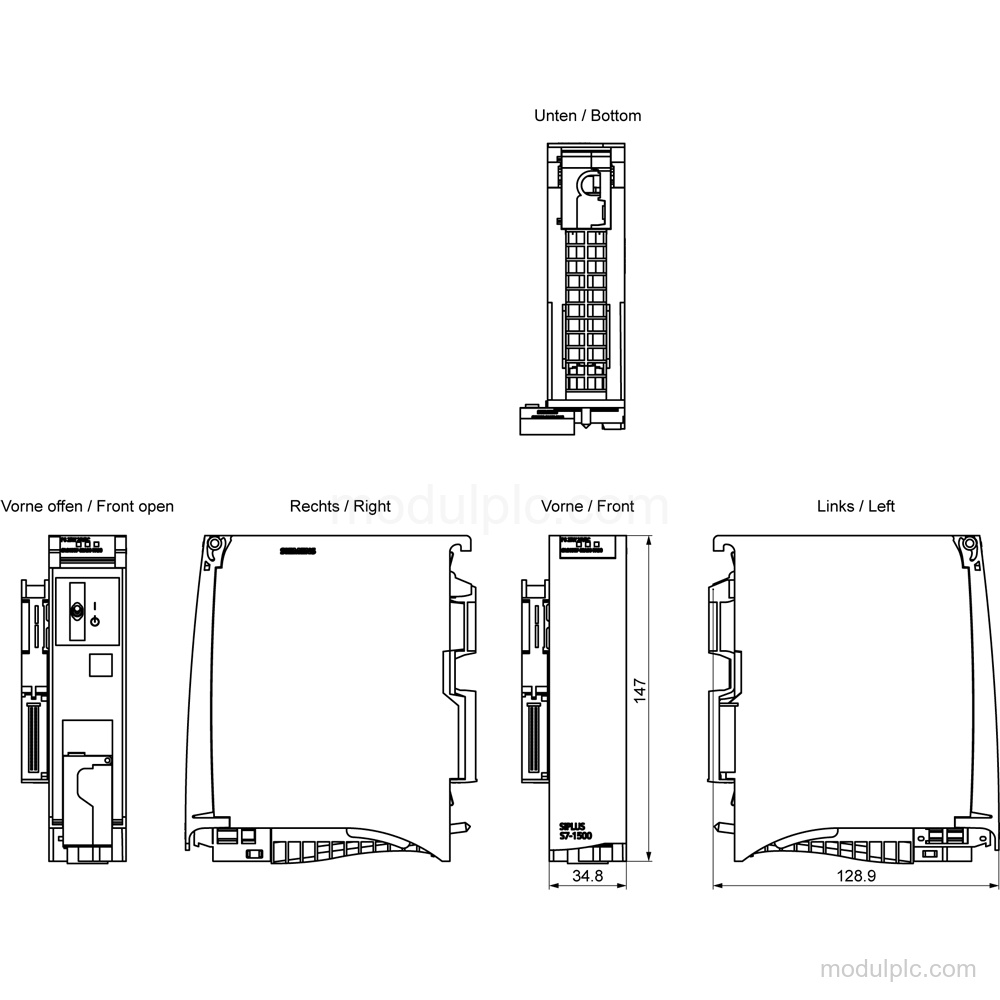

Product Overview
Technical Summary

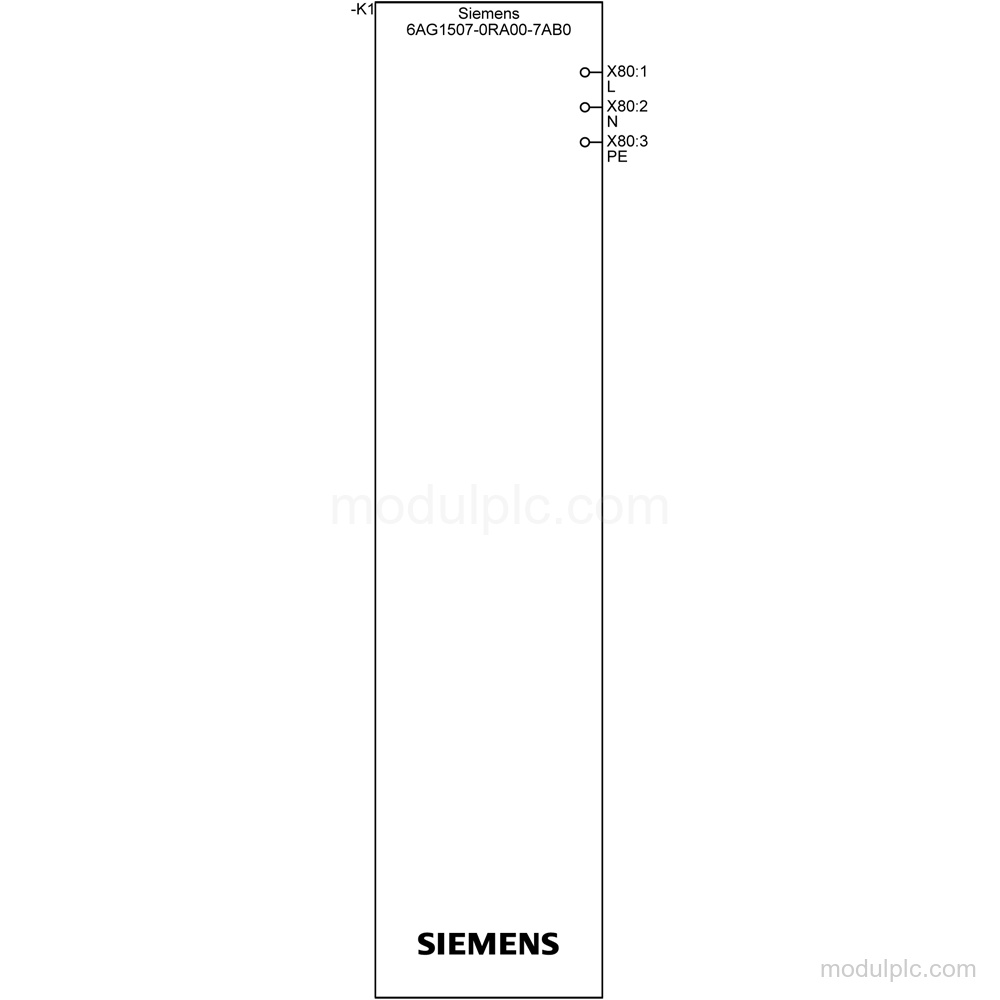

| Parameter | Value |
|---|---|
| Product type | PS 60 W 120/230 V AC/DC |
| Based on | 6ES7507-0RA00-0AB0 |
| Rated supply voltage (AC) | 120 V / 230 V |
| Rated supply voltage (DC) | 120 V / 230 V |
| Backplane bus power | 60 W; > +60 °C max. power input 30 W |
| Operating temperature | -40 °C to 70 °C; start-up @ -25 °C; vertical mounting Tmax = +40 °C |
| Protection | IP20 |
Applications
- Backplane bus power supply: Supplies the S7-1500 backplane bus with operating voltage.
Key Features
- System power supply: Supplies the backplane bus of the S7-1500 with operating voltage.
- Supply voltage: Rated supply is 120 V / 230 V AC and 120 V / 230 V DC; permissible ranges are 85 V to 264 V AC and 88 V to 300 V DC.
- Power input: Infeed power to the backplane bus is 60 W; above +60 °C, maximum power input is 30 W.
- Environmental protection: IP20 protection, conformal coating, and ambient temperature during operation of -40 °C to 70 °C; for vertical mounting, maximum temperature is +40 °C.
Frequently Asked Questions
1. What function does the 6AG1507-0RA00-7AB0 provide?
It supplies the backplane bus of the S7-1500 with operating voltage.
2. What supply voltage does this system power supply use?
The rated supply is 120 V / 230 V AC and 120 V / 230 V DC. The permissible ranges are 85 V to 264 V AC and 88 V to 300 V DC.
3. What power does the 6AG1507-0RA00-7AB0 provide to the backplane bus?
The infeed power is 60 W; above +60 °C, maximum power input is 30 W.
4. What are the operating temperature limits?
The ambient temperature during operation is -40 °C to 70 °C, with start-up @ -25 °C. For vertical mounting, the maximum temperature is +40 °C.
