Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | CPU 1510SP F-1 PN |
| Supply voltage | 24 V DC rated; 19.2 V to 28.8 V permissible |
| PROFINET interfaces | 1 |
| PROFINET ports | 3; 1 integrated + 2 via BusAdapter |
| PROFINET protocol | PROFINET IRT |
| Bit-operation time | 72 ns typical |
| Diagnostic buffer | 1 000 entries maximum |
Applications
- Railway applications: The source supports use on rail vehicles and in railway applications, including EMC requirements for rail vehicles and signal and telecommunications systems.
Key Features
- CPU and memory card: CPU 1510SP F-1 PN with 1 slot for a required SIMATIC Memory Card and 32 Gbyte maximum plug-in load memory.
- PROFINET interface: 1 PROFINET interface with PROFINET IRT and 3 ports: 1 integrated port plus 2 ports via BusAdapter.
- Supply and consumption: Rated supply is 24 V DC with a permissible range of 19.2 V to 28.8 V. Current consumption is 0.6 A rated and 0.9 A maximum.
- Processing performance: Typical processing times are 72 ns for bit operations, 86 ns for word operations, 115 ns for fixed-point arithmetic, and 461 ns for floating-point arithmetic.
- Diagnostics and protection: The CPU has a diagnostic buffer with up to 1 000 entries, RUN/STOP, ERROR, MAINT and PWR LEDs, plus conformal coating with Type 1 protection.
Frequently Asked Questions
1. What type of CPU is Siemens 6AG2510-1SJ01-1AB0?

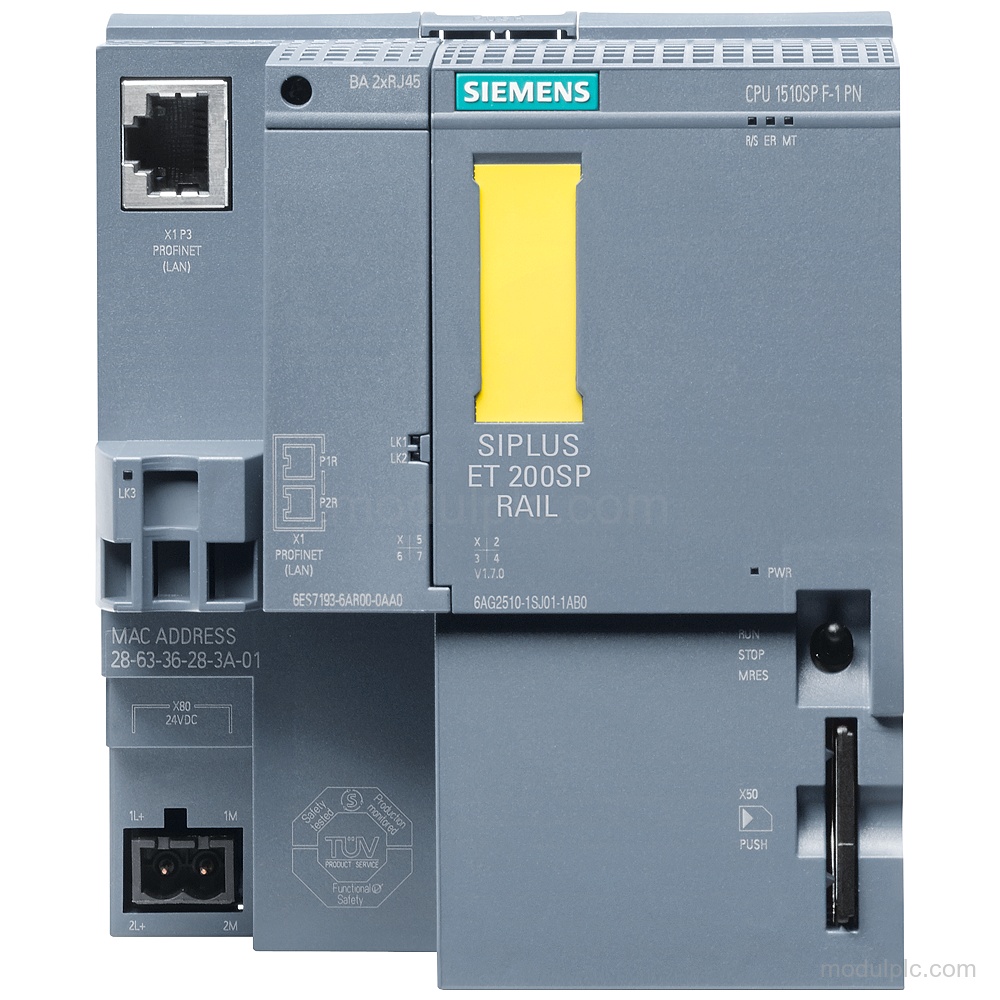

It is a SIPLUS ET 200SP CPU 1510SP F-1 PN with conformal coating.
2. What PROFINET connection does this CPU have?
It has 1 PROFINET interface with PROFINET IRT and 3 ports: 1 integrated port plus 2 via BusAdapter. A BusAdapter is required for port 1 and port 2.
3. What supply voltage does the CPU require?
The rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V.
