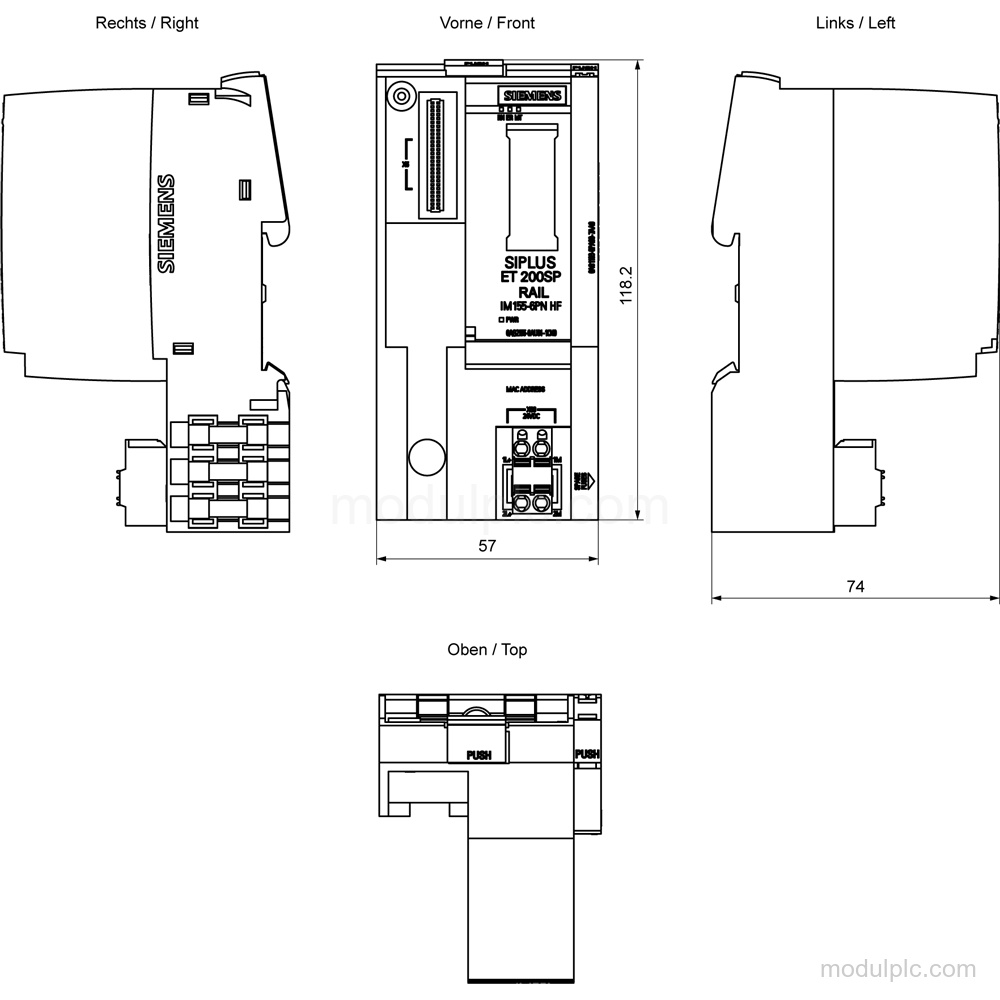

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | IM 155-6 PN/2 HF |
| PROFINET interface | 1 interface; 2 ports via BusAdapter |
| Supply voltage | 24 V DC rated; 19.2 V to 28.8 V DC permissible range |
| I/O module capacity | 64 I/O modules maximum; + 16 ET 200AL modules |
| PROFINET system redundancy | S2 supported; NAP S2 |
| BusAdapter | Supported; 2-port BusAdapter variants listed in source |
| Isochronous timing | 250 μs shortest clock pulse; 4 ms maximum cycle |
| Current consumption | 700 mA maximum |
| Power loss | 2.4 W typical |
| Protection and diagnostics | Reverse polarity protection; status, alarm, and diagnostics functions |
Applications
- PROFINET device communication: The module supports PROFINET IO Device communication and Open IE communication.
- Hot-swapping: The module supports multi-hot swapping during operation.
- Isochronous operation: The module supports isochronous mode with a 250 μs shortest clock pulse and a 4 ms maximum cycle.
Key Features
- PROFINET interface: 1 PROFINET interface with 2 ports via BusAdapter, integrated switch, PROFINET IO Device, Open IE communication, and PROFINET MRP.
- Station capacity: Supports up to 64 I/O modules, 16 ET 200AL modules, and 256 submodules per station.

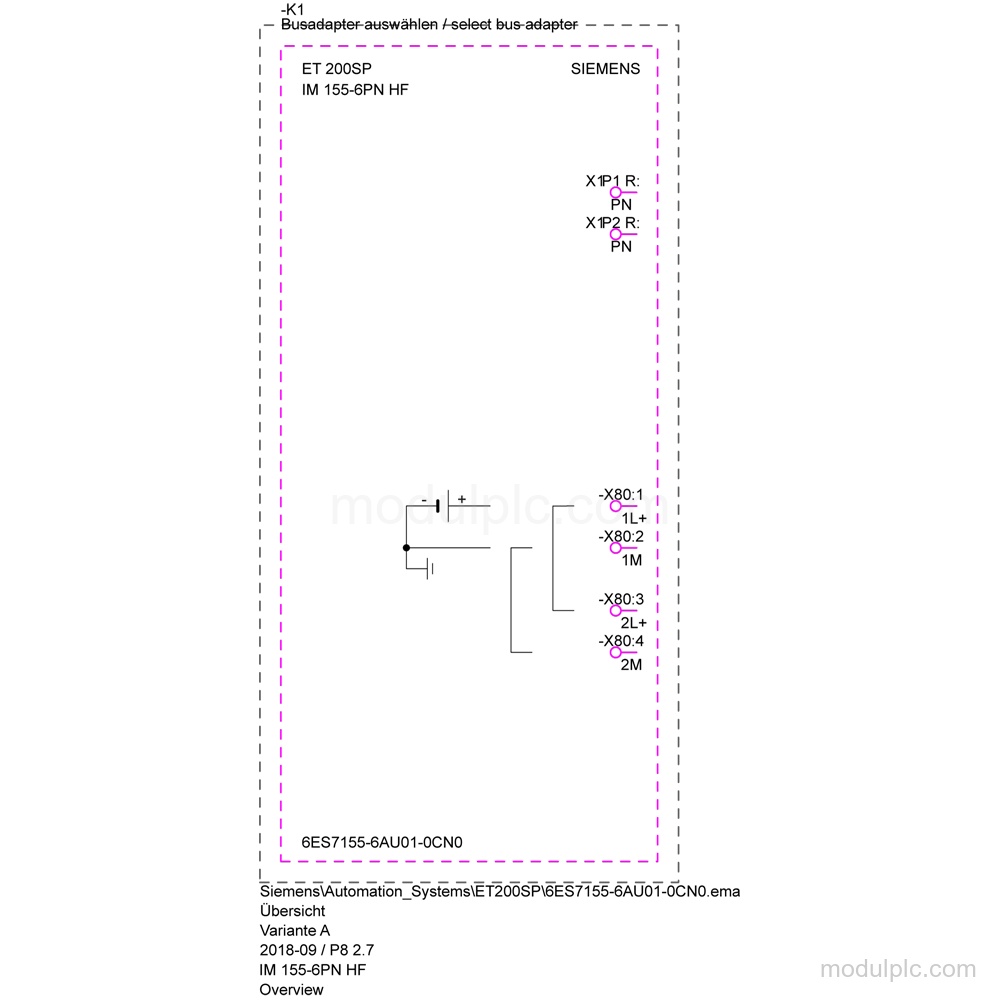

- Supply voltage: Rated supply: 24 V DC; permissible range: 19.2 V to 28.8 V DC. Reverse polarity protection is provided.
- Timing and redundancy: Isochronous mode has a shortest clock pulse of 250 μs, a maximum cycle of 4 ms, a minimum TDP of 250 μs, and maximum jitter of 1 μs. PROFINET system redundancy S2 is supported.
- Diagnostics and isolation: Status, alarm, and diagnostics functions are provided, with RUN, ERROR, MAINT, and PWR LEDs. Isolation between PROFINET and all other circuits is tested with 750 V DC (type test).
Frequently Asked Questions
1. What is the function of the 6AG2155-6AU01-1CN0?
It is a SIPLUS ET 200SP IM155-6 PN/2 HF interface module with PROFINET IO Device and Open IE communication.
2. How many ports does the PROFINET interface have?
It has 1 PROFINET interface with 2 ports via BusAdapter and an integrated switch.
3. What supply voltage does the module use?
The rated supply is 24 V DC, with a permissible range from 19.2 V to 28.8 V DC.
4. What should be verified before requesting a quote?
Verify the required BusAdapter variant, station configuration, and the need for S2 redundancy, multi-hot swapping, or isochronous mode.
