Product Overview
Technical Summary
| Parameter | Value |
|---|---|

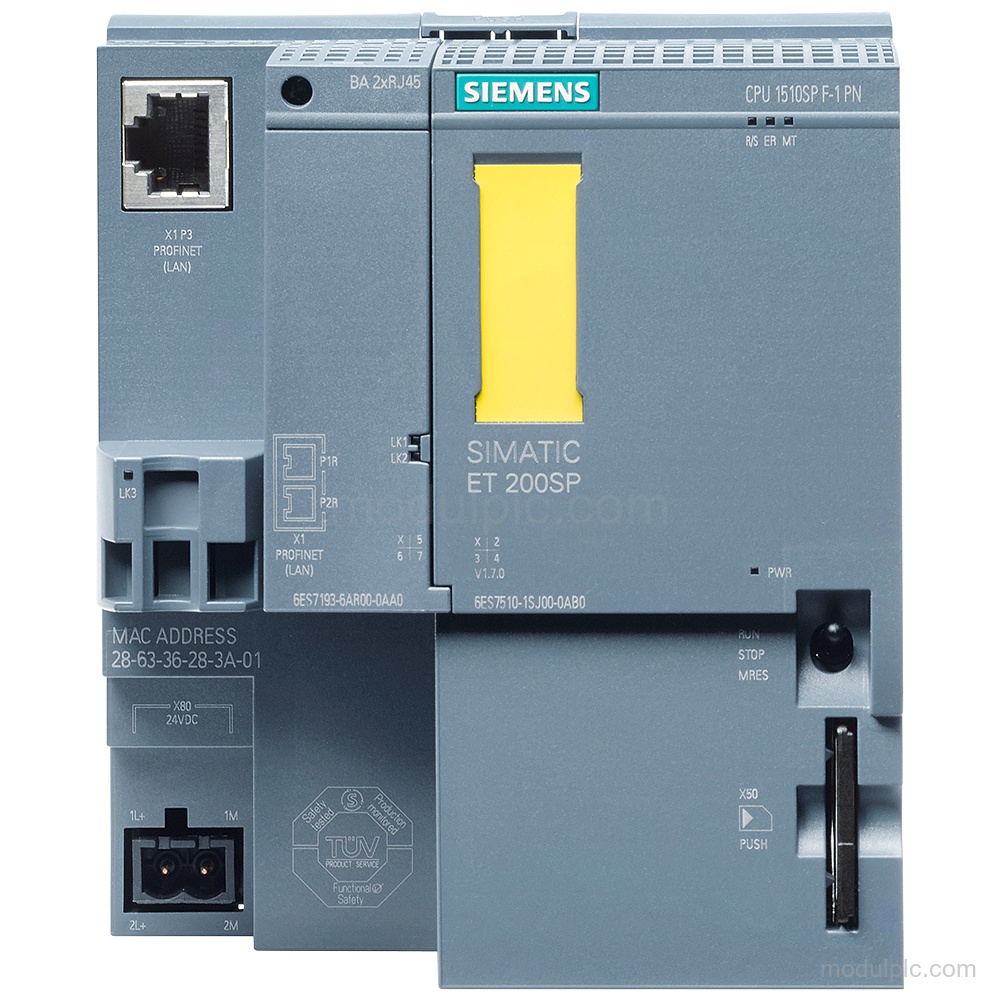

| Product type | CPU 1510SP F-1 PN |
| Rated supply voltage | 24 V DC |
| Supply voltage range | 19.2 V to 28.8 V DC |
| Bit-operation time, typ. | 72 ns |
| PROFINET interfaces | 1 |
| PROFINET ports | 3; 1 integrated + 2 via BusAdapter |
| Integrated work memory | 150 kbyte for program |
| Plug-in load memory, max. | 32 Gbyte |
| PROFIBUS DP master | Yes; via CM DP module |
Applications
- Central processing: Executes the central processing functions of the CPU 1510SP F-1 PN.
- PROFINET communication: Operates as a PROFINET IO Controller or PROFINET IO device and supports PROFINET IRT.
- PROFIBUS communication: Operates as a PROFIBUS DP master via a CM DP module.
- OPC UA data access: Provides OPC UA Client and Server functions, including data access, subscriptions, and method calls.
Key Features
- CPU processing: CPU 1510SP F-1 PN with 72 ns typical bit-operation time and 150 kbyte integrated work memory for the program.
- PROFINET interface: 1 PROFINET interface with PROFINET IRT and 3 ports: 1 integrated port plus 2 ports via BusAdapter.
- Supply: 24 V DC rated supply with a permissible range of 19.2 V to 28.8 V and reverse polarity protection.
- Memory and storage: SIMATIC Memory Card required; plug-in load memory supports up to 32 Gbyte.
- Communication: Supports PROFINET IO Controller, PROFINET IO device, PROFIBUS DP master via CM DP module, OPC UA, and MODBUS TCP.
- Installation and protection: Dimensions are 100 mm × 117 mm × 75 mm; weight is approximately 310 g. Conformal coating provides Type 1 protection against fouling.
Frequently Asked Questions
1. What CPU type is Siemens 6AG1510-1SJ01-2AB0?
It is a CPU 1510SP F-1 PN for SIPLUS ET 200SP.
2. What supply voltage does this CPU require?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
3. How many PROFINET ports are available?
There are 3 ports: 1 integrated port and 2 ports via a BusAdapter. A BusAdapter is required for ports 1 and 2.
4. Is a memory card included with the CPU?
A SIMATIC Memory Card is required; the source does not state that it is included.
