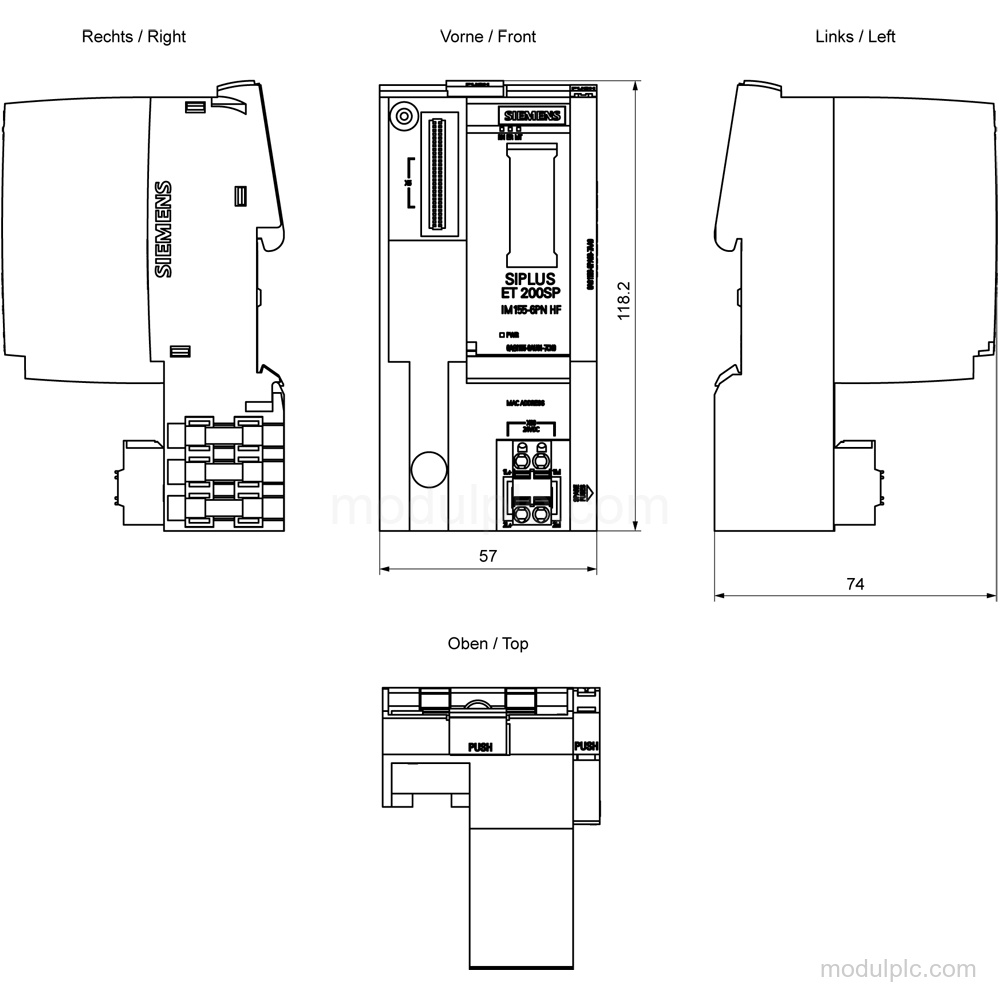

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | IM 155-6 PN/2 HF |
| PROFINET interfaces | 1; 2 ports (switch) via BusAdapter |
| Maximum I/O module capacity | 64 I/O modules; + 16 ET 200AL modules |
| Supply voltage | 24 V DC rated; 19.2 V to 28.8 V DC permissible range |
| PROFINET transmission | 100 Mbit/s full duplex (100BASE-TX) |
| PROFINET system redundancy | S2: Yes; R1: No |
| Isochronous mode | 250 μs shortest clock pulse; 4 ms maximum cycle |
| Bus cycle time | 250 μs minimum; 1 μs maximum jitter |
| Current consumption | 700 mA maximum |
| Power loss | 2.4 W typical |
Applications
- PROFINET I/O communication: The module functions as a PROFINET IO device and supports Open IE communication for exchanging I/O and network data.
Key Features
- Interface and capacity: The IM 155-6 PN/2 HF has 1 PROFINET interface with 2 switch ports via BusAdapter and supports up to 64 I/O modules plus 16 ET 200AL modules.
- PROFINET communication: It supports PROFINET IO device, Open IE communication, PROFINET MRP, PROFIsafe, TCP/IP, SNMP and LLDP.

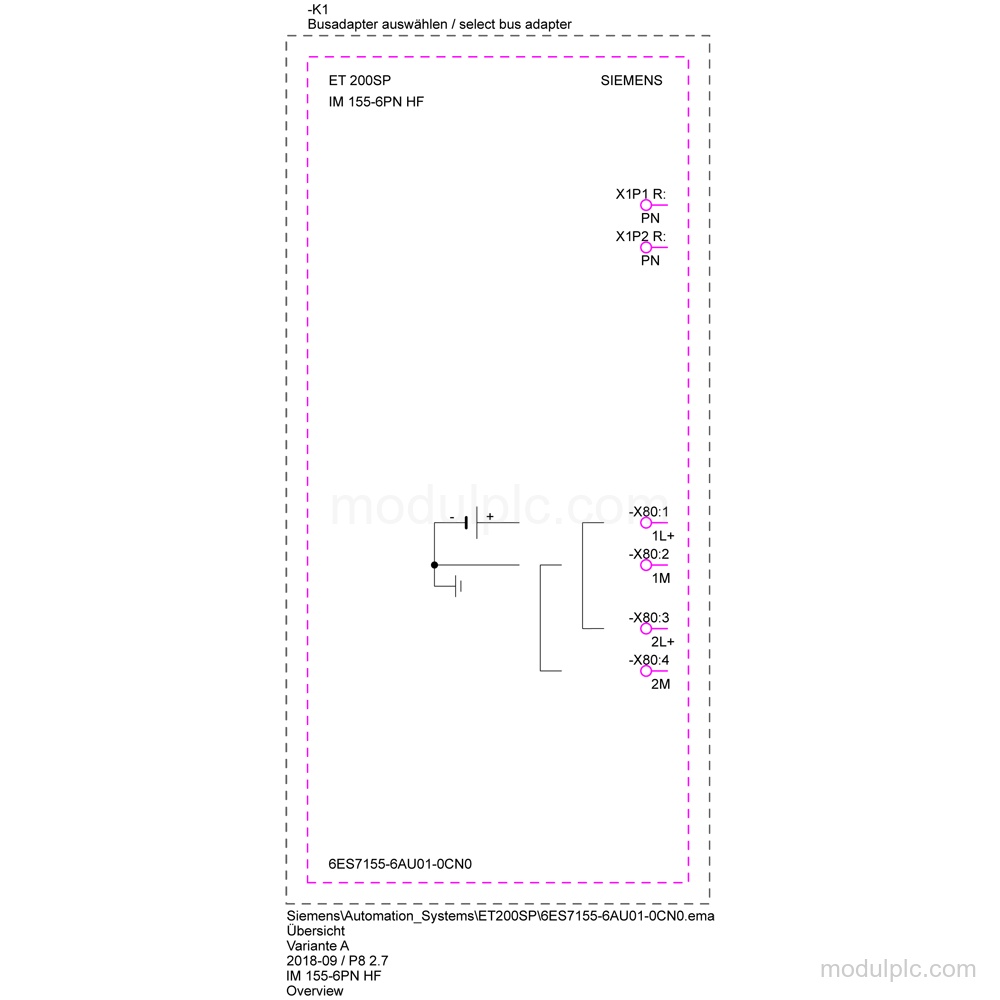

- Supply and protection: Rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC and reverse polarity protection.
- Timing and redundancy: Isochronous mode has a shortest clock pulse of 250 μs, a maximum cycle of 4 ms, minimum bus cycle time of 250 μs and maximum jitter of 1 μs. PROFINET system redundancy S2 is supported; R1 is not.
- Diagnostics and isolation: The module has status, alarm and diagnostics functions, RUN, ERROR, MAINT and PWR LEDs, and potential separation between PROFINET and all other circuits.
Frequently Asked Questions
1. What is the product type of 6AG1155-6AU01-7CN0?
Its product type is IM 155-6 PN/2 HF, a SIPLUS ET 200SP interface module.
2. How many PROFINET ports does the module have?
It has 1 PROFINET interface with 2 switch ports via BusAdapter.
3. What supply voltage does it use?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
4. Does the module support S2 redundancy and diagnostics?
Yes. PROFINET system redundancy S2, status indicators, alarms and diagnostics functions are supported; R1 redundancy is not supported.
