Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | IM 155-6 PN ST |
| PROFINET interfaces | 1; 2 ports (switch) |
| Module capacity | 32 modules per rack + 16 ET 200AL modules |
| Rated supply voltage | 24 V DC |
| Permissible supply range | 19.2 V to 28.8 V DC |
| BusAdapter | 1 slot; BA 2x RJ45, BA 2x FC |
| PROFINET transmission | 100 Mbit/s full duplex (100BASE-TX) |
| Hot swapping | Single hot swapping |
| Current consumption, rated | 450 mA |
| Potential separation | Between PROFINET and all other circuits: 1 500 V AC |

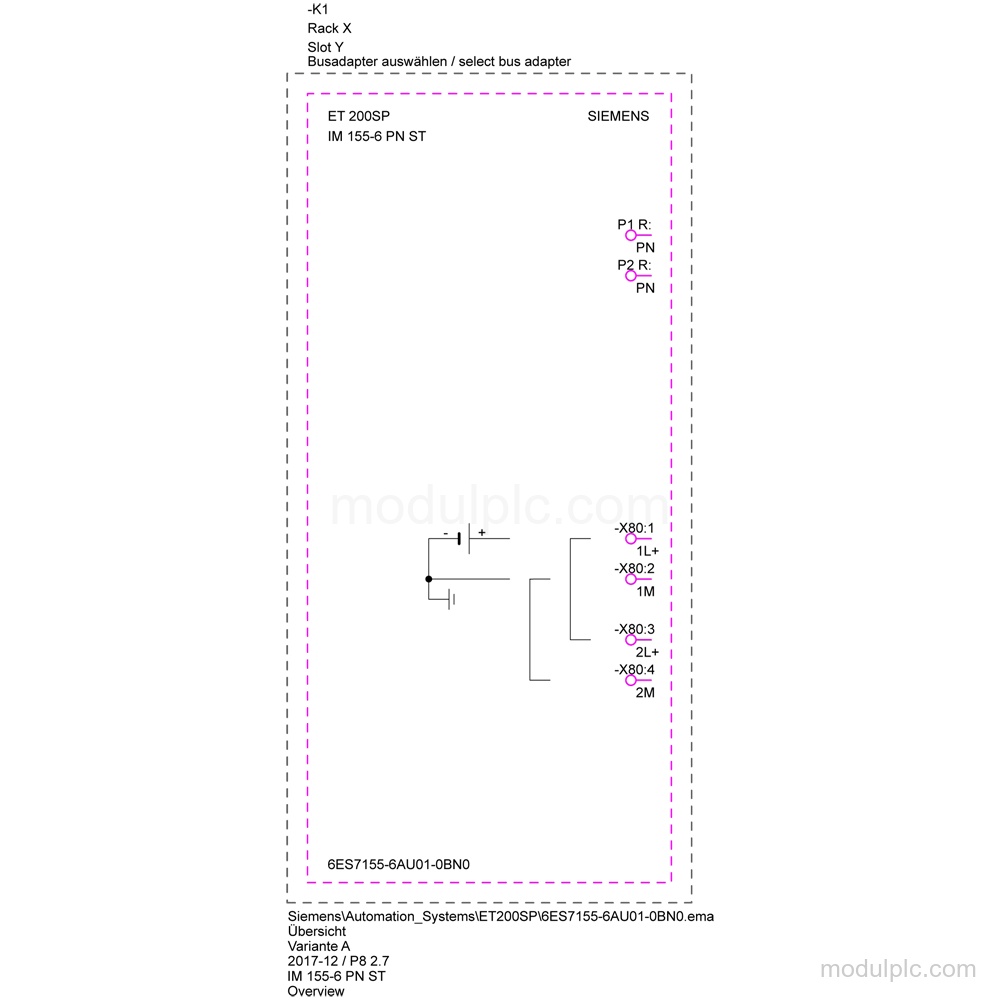

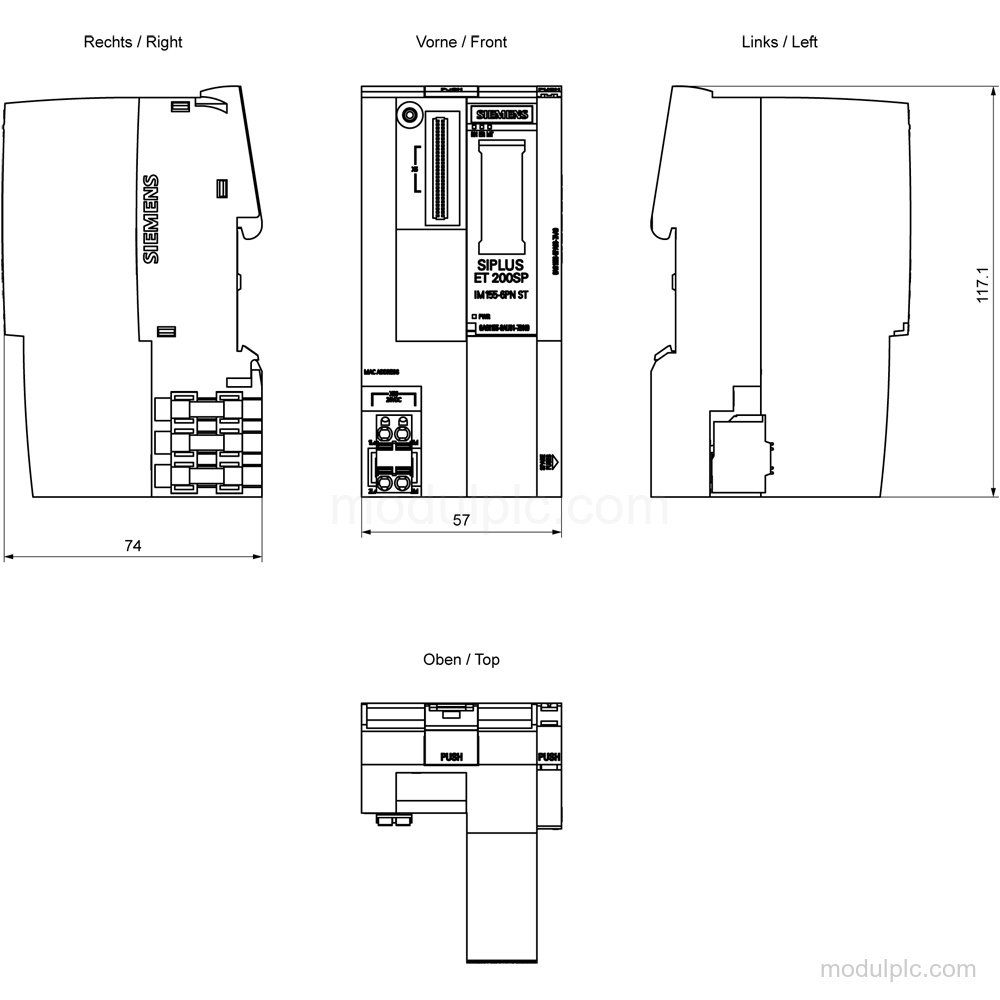

Applications
- PROFINET IO device communication: Supports PROFINET IO device communication, Open IE communication, PROFINET MRP, PROFIenergy, and shared device operation.
Key Features
- PROFINET interface: 1 PROFINET interface with 2 ports and an integrated switch; transmission is PROFINET with 100 Mbit/s full duplex (100BASE-TX).
- Module capacity: Supports up to 32 modules per rack plus 16 ET 200AL modules, and up to 256 submodules per station.
- BusAdapter connection: Has 1 slot for a PROFINET BusAdapter; applicable BusAdapter types are BA 2x RJ45 and BA 2x FC.
- Supply and protection: Rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC, reverse polarity protection, and short-circuit protection.
- Operation and diagnostics: Supports single hot swapping, I&M0 to I&M3 data, alarms, diagnostics, and RUN, ERROR, MAINT, and PWR status indication LEDs.
- Conformal coating: SIPLUS version with conformal coating and a temperature range of -40…+70 °C.
Frequently Asked Questions
1. What is the function of Siemens 6AG1155-6AU01-7BN0?
It is a SIPLUS ET 200SP IM155-6PN ST PROFINET interface module with 1 PROFINET interface and 2 switched ports.
2. How many modules can the interface module support?
It supports up to 32 modules per rack plus 16 ET 200AL modules, with up to 256 submodules per station.
3. What supply voltage does this module require?
The rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
