Product Overview

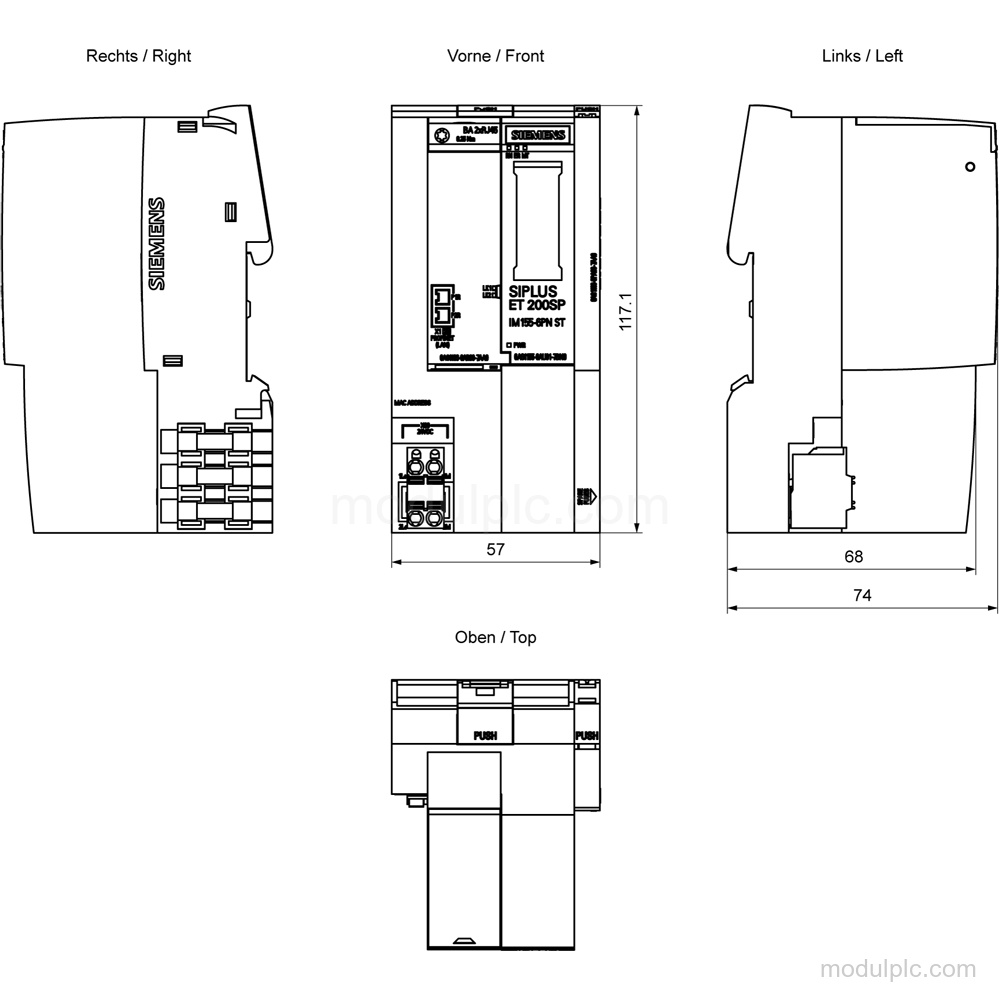

Technical Summary

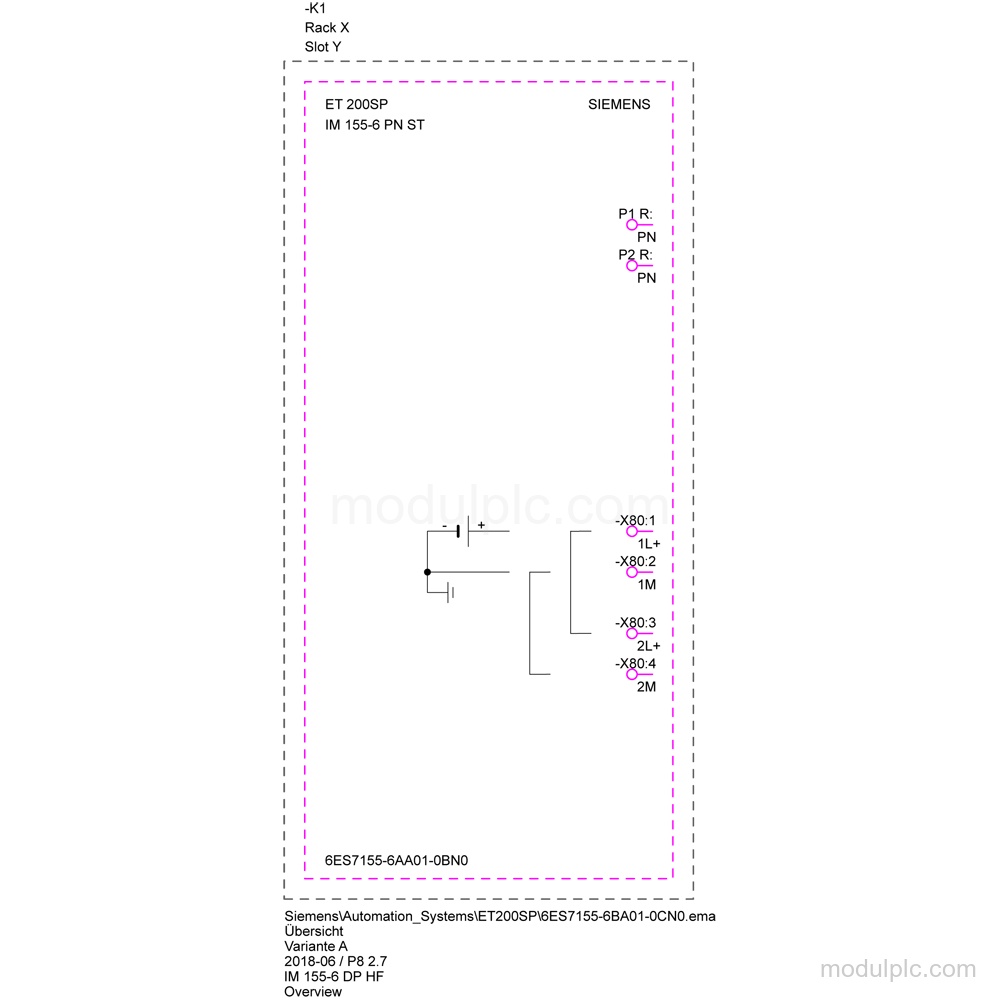

| Parameter | Value |
|---|---|
| Product type | IM 155-6 PN ST |
| Base model | 6ES7155-6AA01-0BN0 |
| PROFINET interfaces | 1; 2 ports (switch) |
| PROFINET transmission | 100 Mbit/s full duplex (100BASE-TX) |
| Rated supply | 24 V DC |
| Permissible supply range | 19.2 V to 28.8 V DC |
| Rack capacity | 32 modules + 16 ET 200AL modules |
| Submodules per station, max. | 256 |
| Hot swapping | Single hot swapping |
| BusAdapter | Pre-assembled BA 2xRJ45 |
Applications
- PROFINET IO communication: Used as a PROFINET IO Device for communication over PROFINET.
Key Features
- Module type: IM 155-6 PN ST interface module based on 6ES7155-6AA01-0BN0, with conformal coating and -40…+70 °C.
- PROFINET interface: 1 PROFINET interface with 2 switch ports and a pre-assembled BusAdapter BA 2xRJ45; PROFINET with 100 Mbit/s full duplex (100BASE-TX).
- Supported communication: Supports PROFINET IO Device, Open IE communication, PROFIsafe, PROFINET MRP, TCP/IP, SNMP, and LLDP; PROFIBUS and EtherNet/IP are not supported.
- Supply and protection: Rated supply: 24 V DC; permissible range: 19.2 V to 28.8 V DC. Reverse polarity protection and short-circuit protection are included.
- System capacity: Supports up to 32 modules per rack plus 16 ET 200AL modules, and up to 256 submodules per station.
- Bundle contents and lifecycle: Bundle includes the interface module 6AG1155-6AU01-7BN0, server module 6AG1193-6PA00-7AA0, and BusAdapter BA 2xRJ45 6AG1193-6AR00-7AA0. Product cancellation.
Frequently Asked Questions
1. What is the function of Siemens 6AG1155-6AA01-7BN0?
It is an IM 155-6 PN ST interface module for use as a PROFINET IO Device.
2. How many PROFINET ports does this module have?
It has 1 PROFINET interface with 2 switch ports and a pre-assembled BusAdapter BA 2xRJ45.
3. What supply voltage does the module require?
The rated supply is 24 V DC, with a permissible range from 19.2 V to 28.8 V DC.
4. What is included in the bundle?
The bundle includes interface module 6AG1155-6AU01-7BN0, server module 6AG1193-6PA00-7AA0, and BusAdapter BA 2xRJ45 6AG1193-6AR00-7AA0.
