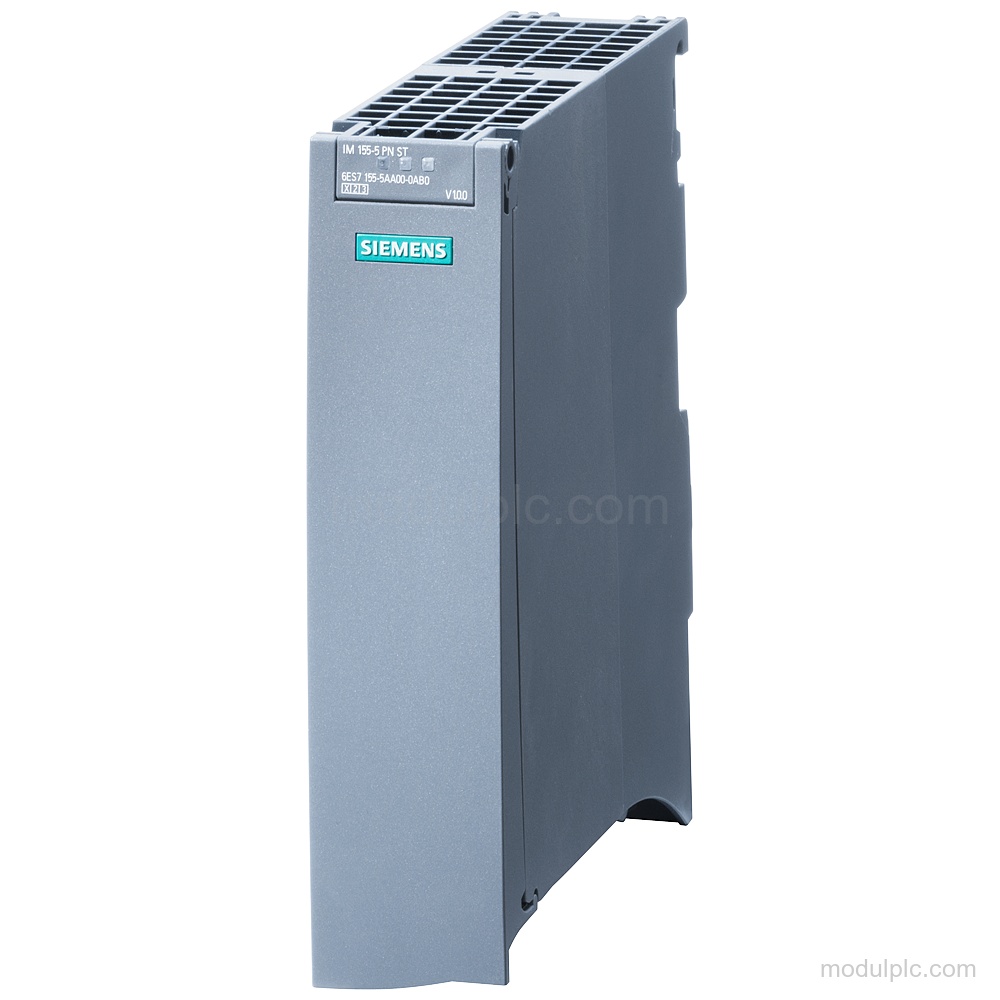

Product Overview
Technical Summary
| Parameter | Value |
|---|---|

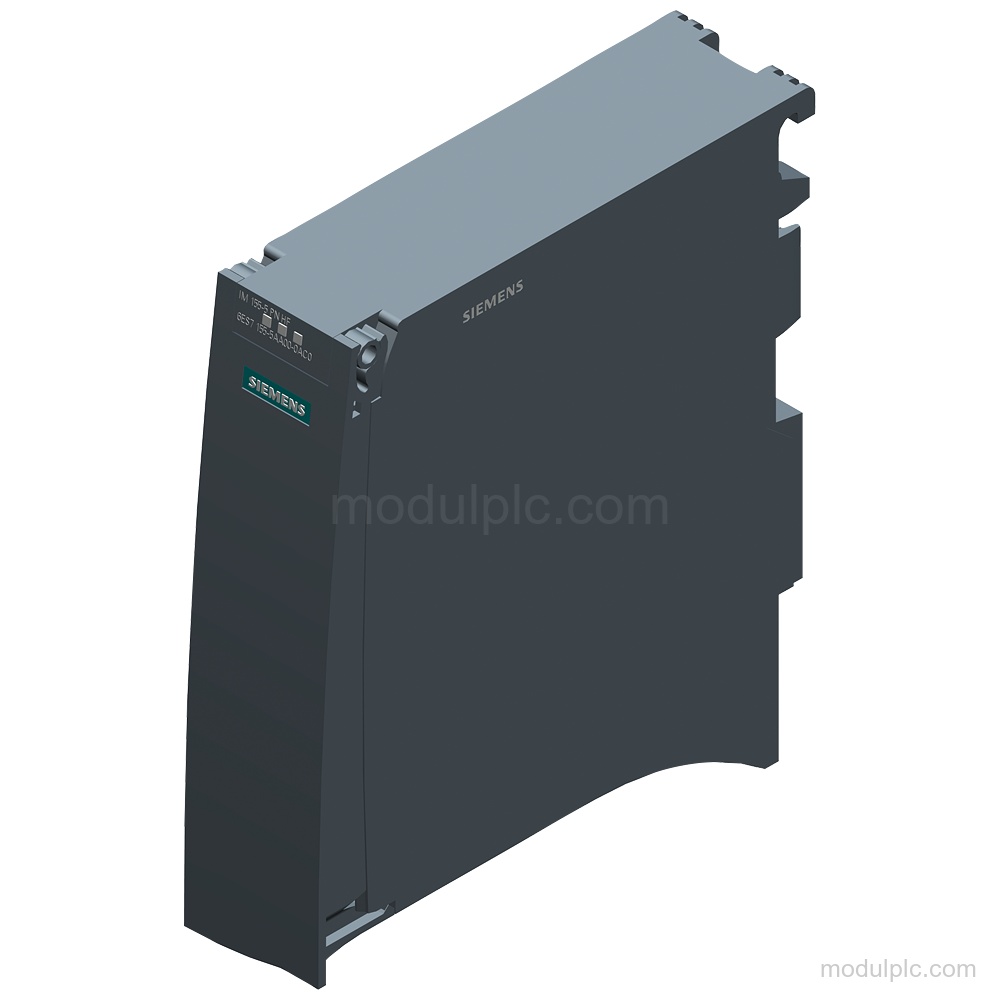

| Product type | IM 155-5 PN HF |
| PROFINET interfaces | 1 |
| Ethernet ports | 2 |
| Module capacity without PS | Up to 12 I/O modules |
| Module capacity with additional PS | Up to 30 I/O modules |
| Rated supply | 24 V DC |
| Permissible supply range | 19.2 V to 28.8 V DC |
| Transmission procedure | PROFINET with 100 Mbit/s full duplex (100BASE-TX) |
| Shortest clock pulse | 125 μs |
| Maximum cycle | 4 ms |
| Firmware version | V1.0.0 |
| Conformal coating | -40…+60 °C |
Applications
- PROFINET IO device communication: Provides a PROFINET IO device interface for ET 200MP electronic modules.
Key Features
- PROFINET IO device interface: IM 155-5 PN HF module for ET 200MP electronic modules with 1 PROFINET interface and an integrated 2-port switch.
- Module capacity: Supports up to 12 I/O modules without PS and up to 30 I/O modules with additional PS.
- Ethernet connection: RJ45 Ethernet connection with PROFINET at 100 Mbit/s full duplex, autonegotiation and autocrossing.
- Supply and protection: Rated supply: 24 V DC; permissible range: 19.2 V to 28.8 V DC. Reverse polarity and short-circuit protection are provided.
- Diagnostics and timing: Has status, alarm and diagnostics functions, RUN, ERROR and MAINT LEDs, isochronous mode, 125 μs shortest clock pulse and 4 ms maximum cycle.
- Redundancy and isolation: Supports PROFINET system redundancy (S2), MRP, MRPD and potential separation between PROFINET and all other circuits.
Frequently Asked Questions
1. What type of module is Siemens 6AG1155-5AA00-2AC0?
It is an IM 155-5 PN HF PROFINET IO device interface module for ET 200MP electronic modules.
2. How many modules can Siemens 6AG1155-5AA00-2AC0 support?
It supports up to 12 I/O modules without PS or up to 30 I/O modules with additional PS.
3. What supply voltage does this module use?
The rated supply is 24 V DC, with a permissible range from 19.2 V to 28.8 V DC.
4. Which Ethernet connection and timing functions are available?
It has an RJ45 Ethernet connection, an integrated 2-port switch, PROFINET at 100 Mbit/s full duplex, a 125 μs shortest clock pulse and a 4 ms maximum cycle.
