Product Overview
Technical Summary
| Parameter | Value |
|---|---|

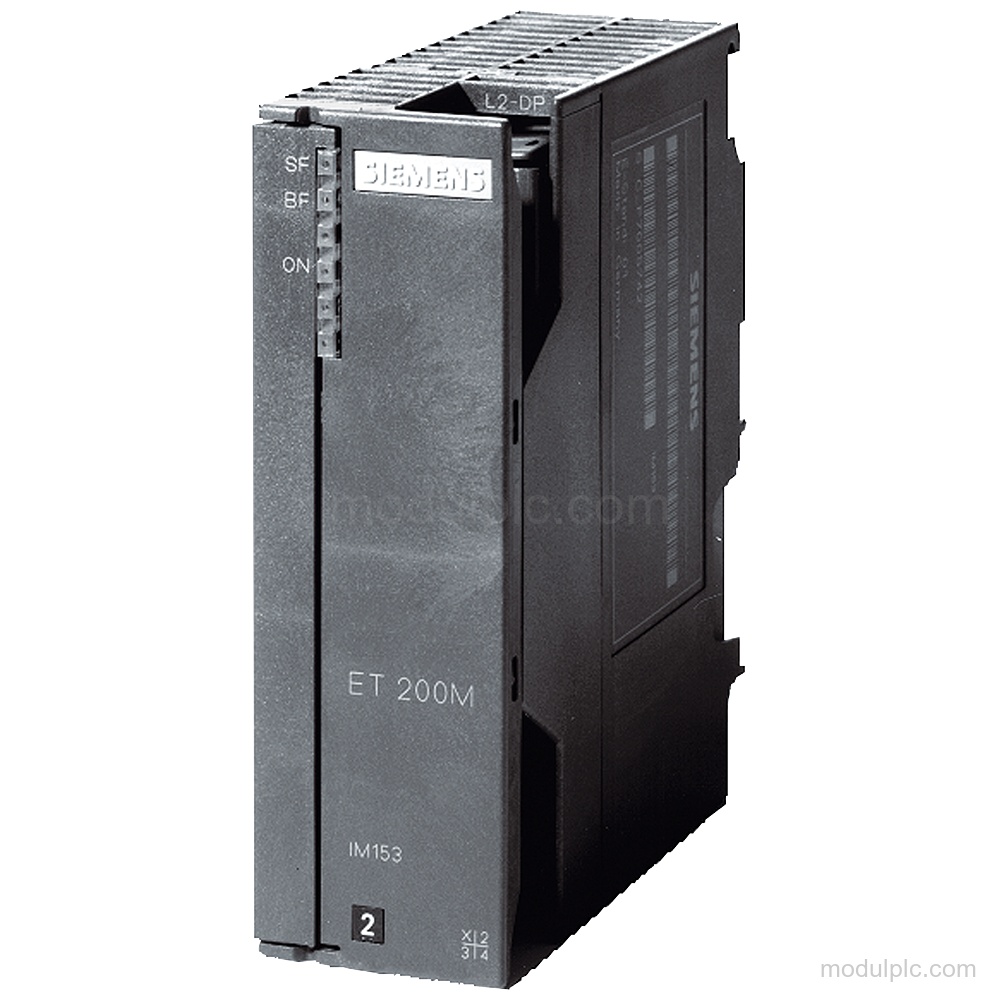

| Product type | IM 153-1 DP ST |
| Supply voltage | 24 V DC; permissible range 20.4 V to 28.8 V DC |
| PROFIBUS DP transmission rate, max. | 12 Mbit/s |
| Transmission procedure | RS 485 |
| Modules per DP device interface, max. | 8 |
| Connection | 9-pin sub D socket |
| Current consumption, max. | 350 mA; At 24 V DC |
| IP degree of protection | IP20 |
| Operating ambient temperature | -40 °C to 70 °C; 60 °C @ UL/cUL, ATEX and FM use |
Applications
- PROFIBUS DP distributed I/O communication: Connects ET 200M modules for PROFIBUS DP data transmission, including SYNC, FREEZE, and direct data exchange as sender.
Key Features
- ET 200M interface: IM 153-1 DP ST interface for ET 200M, based on 6ES7153-1AA03-0XB0, with support for a maximum of 8 modules per DP device interface.
- PROFIBUS DP communication: PROFIBUS DP to EN 50170 with RS 485 transmission and a maximum transmission rate of 12 Mbit/s.
- 24 V DC supply: Rated supply voltage: 24 V DC; permissible range: 20.4 V to 28.8 V DC. Maximum current consumption is 350 mA at 24 V DC.
- Connection and protection: The interface uses a 9-pin sub D socket, has IP20 protection, and provides potential separation. Isolation is tested with 500 V.
- SIPLUS environmental design: Conformal coating with an ambient operating temperature from -40 °C to 70 °C; 60 °C applies for UL/cUL, ATEX and FM use.
Frequently Asked Questions
1. What is the function of Siemens 6AG1153-1AA03-2XB0?
It is an IM 153-1 DP ST interface for ET 200M and supports a maximum of 8 modules per DP device interface.
2. Which communication protocol and interface does it use?
It uses PROFIBUS DP to EN 50170 with RS 485 transmission and a 9-pin sub D socket.
3. What supply voltage does this module require?
The rated supply voltage is 24 V DC, with a permissible range of 20.4 V to 28.8 V DC.
4. What environmental details should be verified before inquiry?
Operating ambient temperature is -40 °C to 70 °C; 60 °C applies for UL/cUL, ATEX and FM use. The module has IP20 protection and conformal coating.
