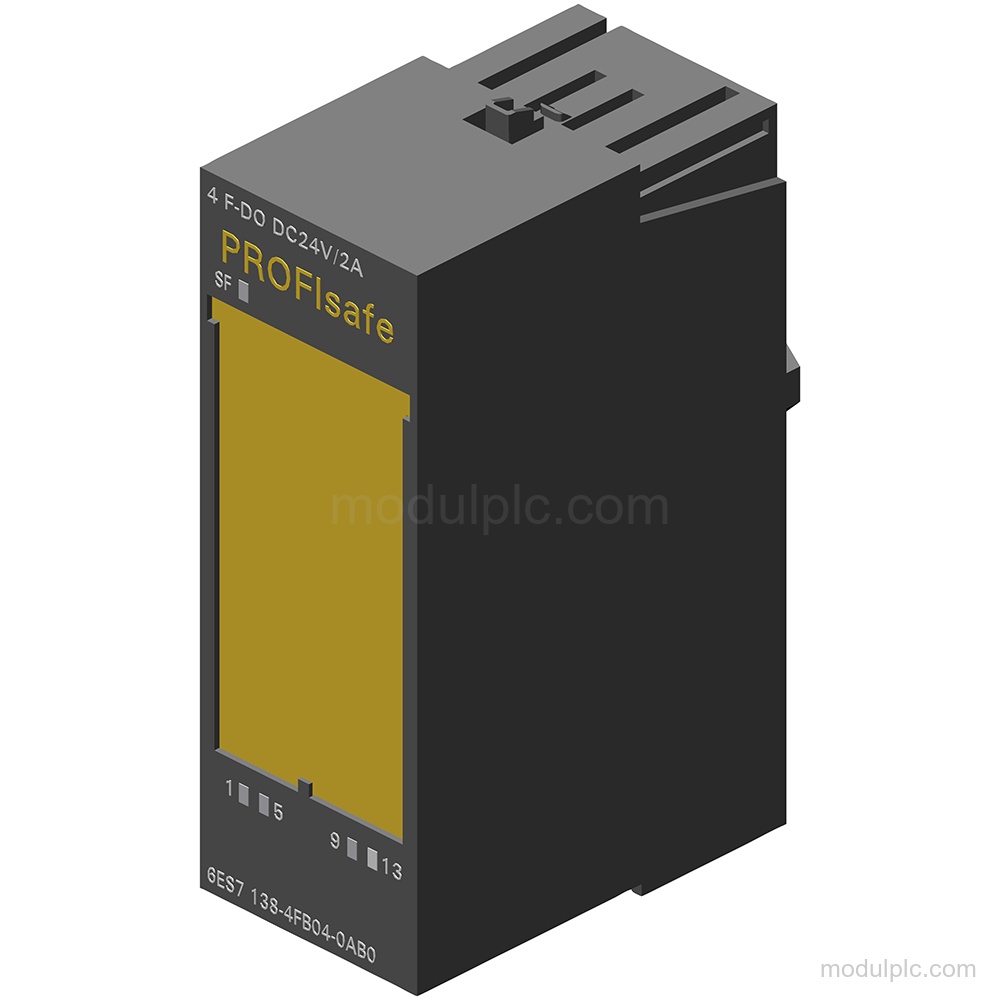

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | Electronic module for ET 200S |
| Output type | F-DQ PROFIsafe transistor output |
| Digital outputs | 4 |
| Rated load voltage | 24 V |
| Rated output current for signal "1" | 2 A |
| Output current permissible range | 20 mA to 2.4 A |
| Short-circuit protection | Yes |
| Diagnostics | Wire break and short-circuit diagnostics; group error SF and digital output status LEDs |
| Maximum total output current | 6 A per module for horizontal installation up to 40 °C |
| Operating ambient temperature | -25 °C to 60 °C |
| Product lifecycle | Product cancellation |
Applications
- Digital output control: Controls digital output signals through 4 F-DQ PROFIsafe transistor outputs.
Key Features
- F-DQ PROFIsafe outputs: Provides 4 digital transistor outputs for F-DQ PROFIsafe applications.
- Load voltage and output current: Rated load voltage is 24 V; rated output current for signal "1" is 2 A.
- Output protection and diagnostics: The outputs have short-circuit protection, wire-break and short-circuit diagnostics, and group error SF and output-status LEDs.
- Current capacity by installation conditions: Maximum total output current per module is 6 A for horizontal installation up to 40 °C, 5 A up to 55 °C, and 4 A up to 60 °C; vertical installation permits 4 A up to 40 °C.
- Safety and dimensions: The module achieves category 4 according to EN 954-1, PLe according to ISO 13849-1, and SIL 3 according to IEC 61508. Dimensions are 30 mm × 81 mm × 52 mm.
Frequently Asked Questions
1. How many F-DQ PROFIsafe outputs does 6AG1138-4FB04-2AB0 have?
It has 4 digital transistor outputs.
2. What load voltage and rated output current does the module use?
The rated load voltage is 24 V, and the rated output current for signal "1" is 2 A.
3. What diagnostics are available?
The module has wire-break and short-circuit diagnostics, a group error SF red LED, and a digital output status green LED.
4. What should be verified before requesting a quote?
Verify the 30 mm overall width, installation orientation, temperature-related total-current limit, and the required 24 V load voltage.
