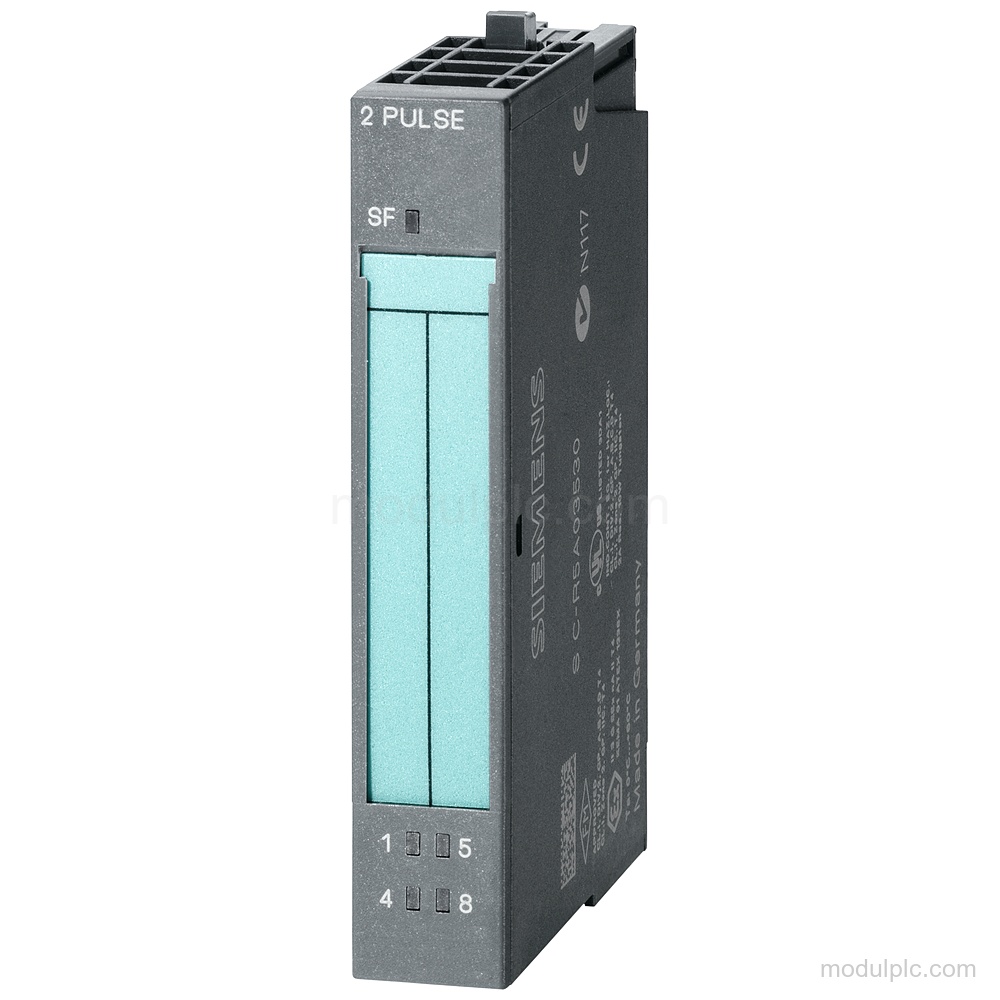

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | Electronic 2-pulse pulse generator and timer module |
| Channels | 2; 1 digital input and 1 digital output per channel |
| Rated supply voltage | 24 V DC from power module |
| Maximum input frequency | 20 kHz with a time delay of 0.1 ms |
| Rated output current | 2 A for signal "1" |
| Encoder supply output voltage | L+ (-0.8 V) |
Applications
- Pulse generation and timing: The module performs electronic 2-pulse generation and timer functions.
- Digital signal input: The module acquires signals through 2 digital inputs and supports input frequencies up to 20 kHz with a time delay of 0.1 ms.
- Digital signal output: The module controls signals through 2 digital outputs and can control a digital input.
Key Features
- 2-channel pulse generator: The module has 2 pulse-generator channels, with 1 digital input and 1 digital output per channel.
- 24 V supply and inputs: Load voltage L+ is 24 V DC from the power module, and the rated input voltage is 24 V DC.
- Input timing: The maximum input frequency is 20 kHz with a time delay of 0.1 ms; the minimum pulse width for program reactions is 100 μs.
- Digital outputs: The module has 2 digital outputs with short-circuit protection and a rated output current of 2 A for signal "1".
- Encoder connection: It supports 2-wire sensors with a maximum permissible quiescent current of 2 mA and provides encoder output voltage of L+ (-0.8 V).
- Diagnostics and installation: LEDs indicate group error SF, digital input status, and digital output status. The module is 15 mm wide, 81 mm high, and 52 mm deep.
Frequently Asked Questions
1. How many channels does the 6AG1138-4DD01-7AB0 have?
It has 2 pulse-generator channels, with 1 digital input and 1 digital output per channel.
2. What input frequency does the module support?
The maximum input frequency is 20 kHz with a time delay of 0.1 ms.
3. What supply voltage does the module use?
The rated load voltage L+ is 24 V DC from the power module, and the rated input voltage is 24 V DC.
4. Does the module provide diagnostics?
Yes. LEDs indicate group error SF, digital input status, and digital output status.
