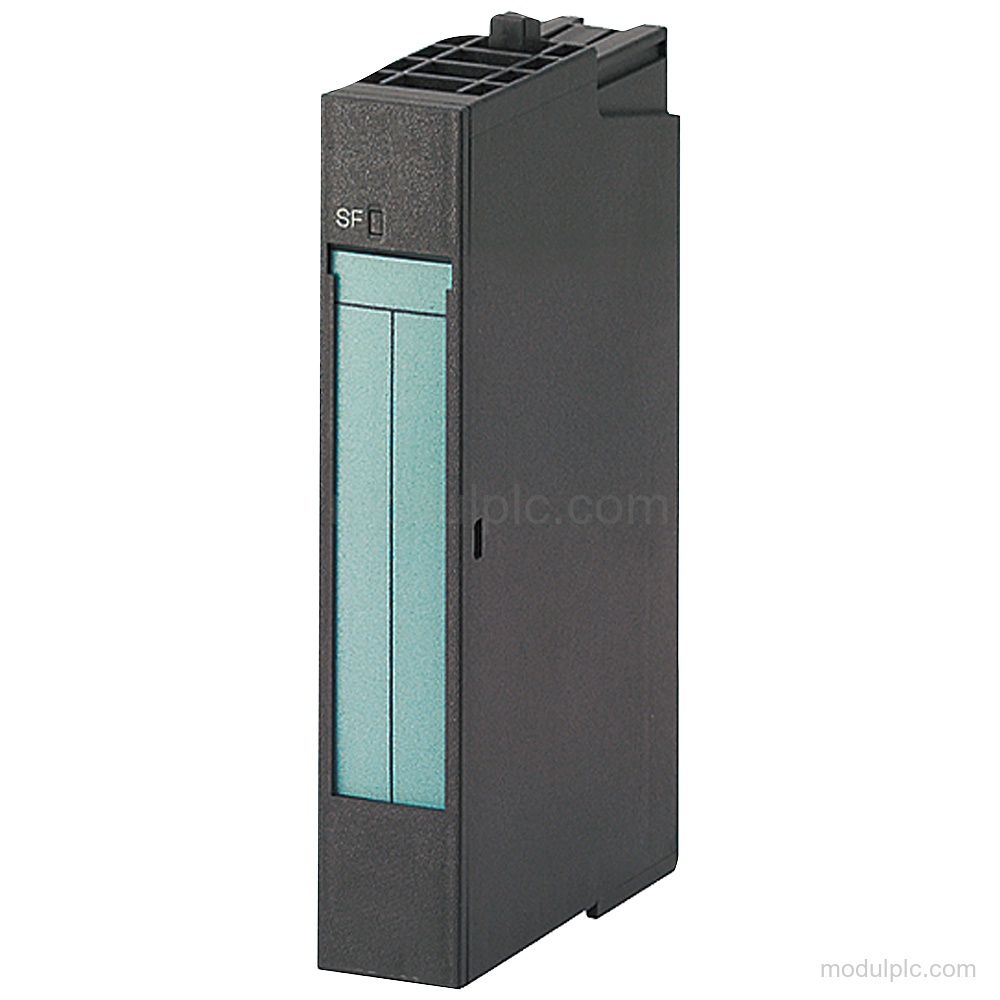

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Rated load voltage | 24 V DC |
| Input current without load, max. | 4 mA |
| Current carrying capacity up to 60 °C, max. | 10 A |
| Typical power loss | 0.1 W |
| Diagnostics | Missing load voltage; PWR and SF LEDs |
| Reverse polarity protection | Yes |
| Short-circuit protection | No; external protection required, tripping characteristic C |
| Potential separation | Rated load voltage/backplane bus and between power modules |
| Isolation test | 500 V DC |
Key Features
- 24 V DC rated load voltage: Rated load voltage L+ is 24 V DC.
- Diagnostics: Diagnostics include missing load voltage detection and LEDs for rated load voltage PWR (green) and group error SF (red).
- Protection: Reverse polarity protection is provided. Short-circuit protection is not provided; external protection is required, such as an automatic circuit breaker with tripping characteristic C.
- Current and power: Input current from load voltage L+ without load is max. 4 mA. Current carrying capacity is max. 10 A up to 60 °C; typical power loss is 0.1 W.
- Potential separation and isolation: Potential separation is provided between rated load voltage and the backplane bus and between power modules. Isolation is tested with 500 V DC.
- Conformal coating: The module has conformal coating and a -40…+70 °C specification.
Frequently Asked Questions
1. What is the rated load voltage of the 6AG1138-4CA01-2AA0?
The rated load voltage L+ is 24 V DC.
2. What diagnostics does this PM-E module provide?
It detects missing load voltage and has a PWR green LED for rated load voltage and an SF red LED for group error.
3. Does the module have short-circuit protection?
No. External protection is required, such as an automatic circuit breaker with tripping characteristic C.
4. What is the maximum current carrying capacity?
The current carrying capacity is max. 10 A up to 60 °C.
5. What isolation information should be verified before inquiry?
Potential separation is provided between rated load voltage and the backplane bus and between power modules; isolation is tested with 500 V DC.
