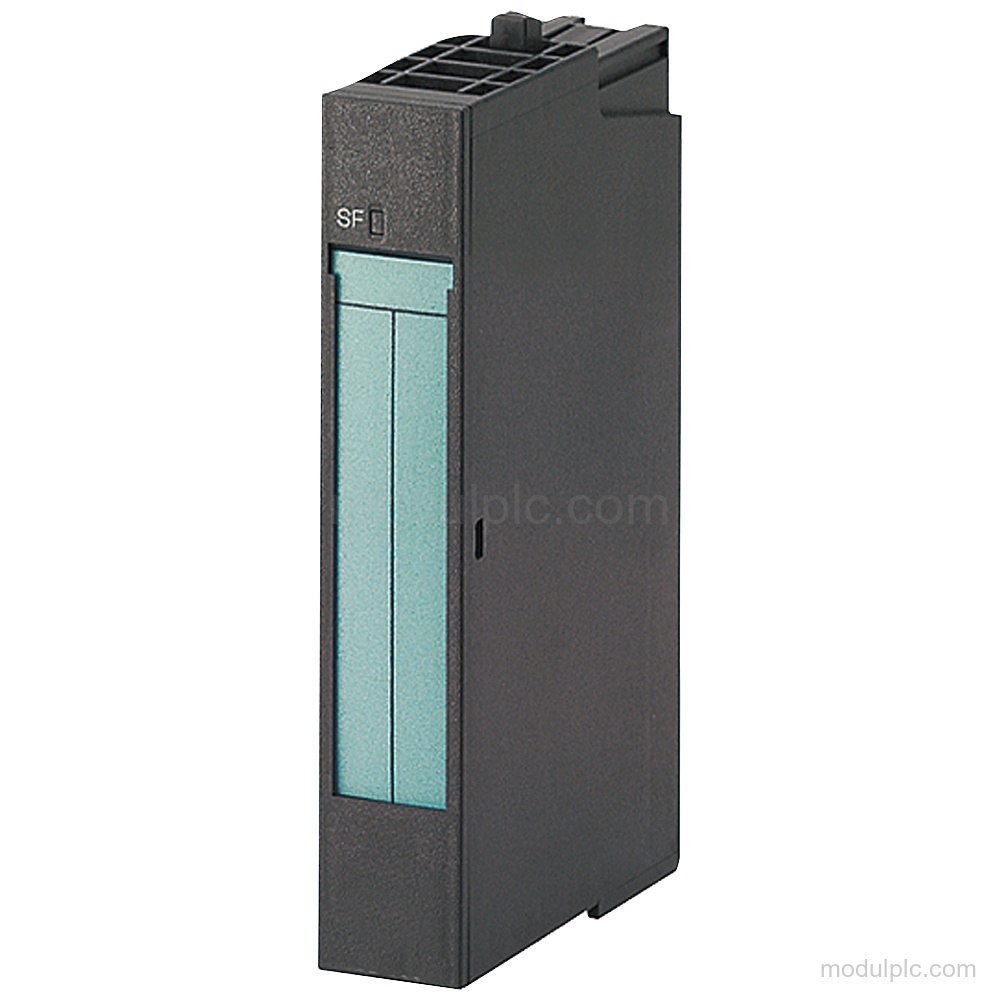

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Analog input channels | 4 |
| Rated input range | 4 mA to 20 mA; into 25 Ohm |
| Resolution with overrange | 13 bit including sign |
| Cycle time, all channels | Max. 40 ms; 33 to 40 ms |
| Load voltage L+ | 24 V DC from power module |
| Transmitter supply | Present; short-circuit proof, approx. 200 mA for module |
| 2-wire transmitter burden | Max. 750 Ω |
| Power loss, typical | 0.6 W |
| Isolation tested with | 500 V DC |
| Product lifecycle | Product cancellation |
Applications
- 2-wire current signal acquisition: Acquires 4 mA to 20 mA signals from 2-wire transmitters through 4 analog input channels.
Key Features
- Analog current inputs: 4 analog inputs for 2-wire transmitters; rated input range: 4 mA to 20 mA.
- Resolution and cycle time: 13 bit resolution with overrange including sign; cycle time for all channels: max. 40 ms (33 to 40 ms).
- Transmitter supply: Power supply to the transmitters is present and short-circuit proof; approx. 200 mA for the module.
- Diagnostics: Wire-break diagnosis is available for the 1 to 5 V measuring range only; group error and overflow/underflow diagnoses are available, with a red SF group-error LED.
- Electrical supply and isolation: Rated load voltage L+: 24 V DC from the power module, with reverse polarity protection. The analog inputs are isolated from the backplane bus but not between channels or from L+.
- Form factor and environmental design: 15 mm width with conformal coating; collected product data specifies -25…+70 °C.
Frequently Asked Questions
1. How many analog inputs does the 6AG1134-4GD00-2AB0 have?
It has 4 analog inputs.
2. Which current input range does this module support?
The rated input range is 4 mA to 20 mA, into 25 Ohm.
3. What resolution and cycle time are available?
Resolution with overrange is 13 bit including sign. The cycle time for all channels is max. 40 ms (33 to 40 ms).
4. What diagnostics are provided?
It has wire-break diagnosis for the 1 to 5 V measuring range only, plus group error and overflow/underflow diagnoses. A red SF group-error LED indicates group error.
5. What should be verified before requesting a quote?
Verify the 24 V DC load voltage from the power module, the 2-wire transmitter requirement, the 15 mm width, and the required shielded cable length, which is max. 200 m.
