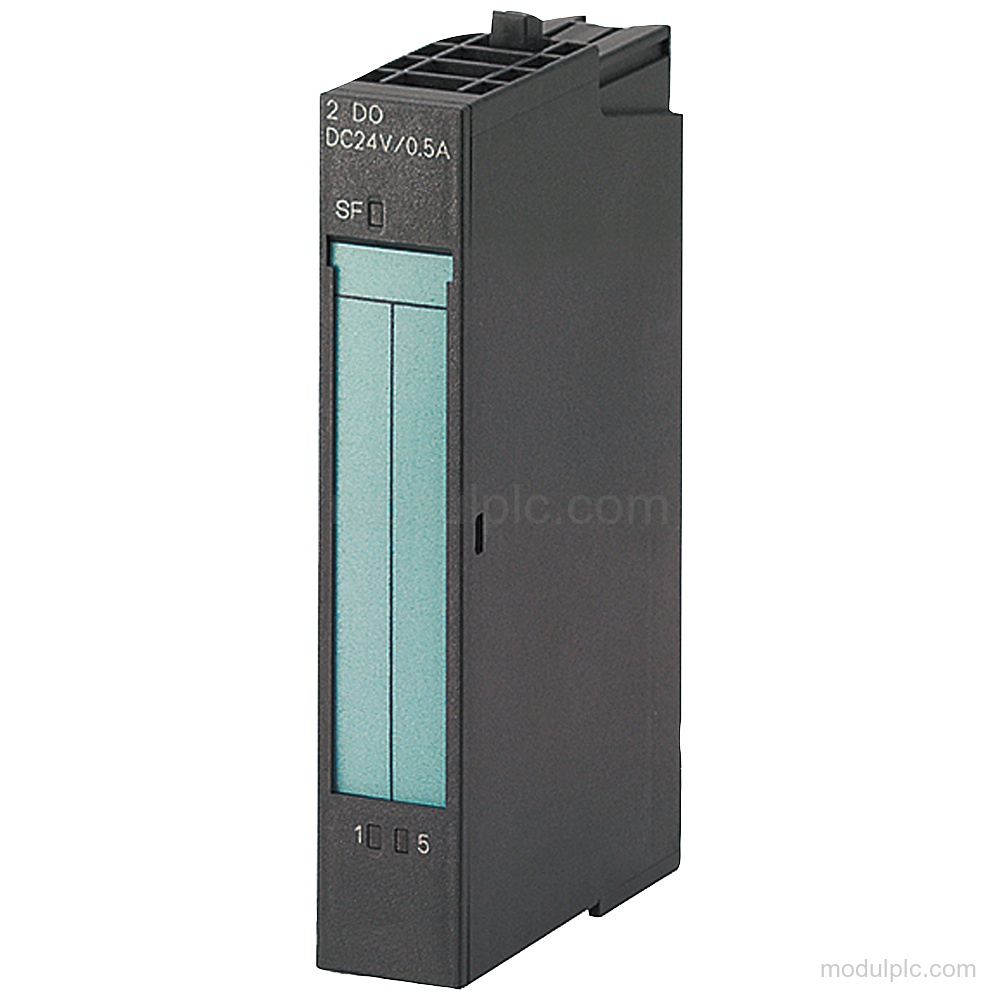

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | SIPLUS ET 200S electronic module with 2 relay digital outputs |
| Digital outputs | 2 relay outputs |
| Rated load voltage L+ | 24 V DC; From power module |
| Rated output current | 5 A for signal "1" |
| Switching frequency | 2 Hz with resistive load; 0.5 Hz with inductive load; 2 Hz on lamp load |
| Substitute values | 0/1 connectable |
| Operating ambient temperature | -25 °C to 70 °C |
| Conformal coating | Included |
Applications
- Digital output control: The relay outputs control digital loads with a rated output current of 5 A for signal "1".
- Digital input control: The module supports controlling a digital input.
Key Features
- Relay digital outputs: The module has 2 relay digital outputs with a 5 A rated output current for signal "1".
- Load voltage: Rated load voltage L+ is 24 V DC from the power module, with reverse polarity protection.
- Switching frequency: Maximum switching frequency is 2 Hz with a resistive load, 0.5 Hz with an inductive load, and 2 Hz on a lamp load.
- Substitute values and indication: Substitute values are connectable as 0/1. A green status indicator is provided for the digital output.
- Electrical separation: The digital outputs have potential separation between the channels, the backplane bus, and load voltage L+.
- Form factor and environment: The module is 15 mm wide, 81 mm high, and 52 mm deep, with an ambient temperature during operation from -25 °C to 70 °C.
Frequently Asked Questions
1. How many digital outputs does Siemens 6AG1132-4HB01-2AB0 have?
It has 2 relay digital outputs.
2. What load voltage does the module use?
The rated load voltage L+ is 24 V DC from the power module, with reverse polarity protection.
3. What output current is available?
The rated output current for signal "1" is 5 A.
4. Does the module provide substitute values?
Yes. Substitute values are connectable as 0/1.
5. What are the module dimensions?
The module is 15 mm wide, 81 mm high, and 52 mm deep.
