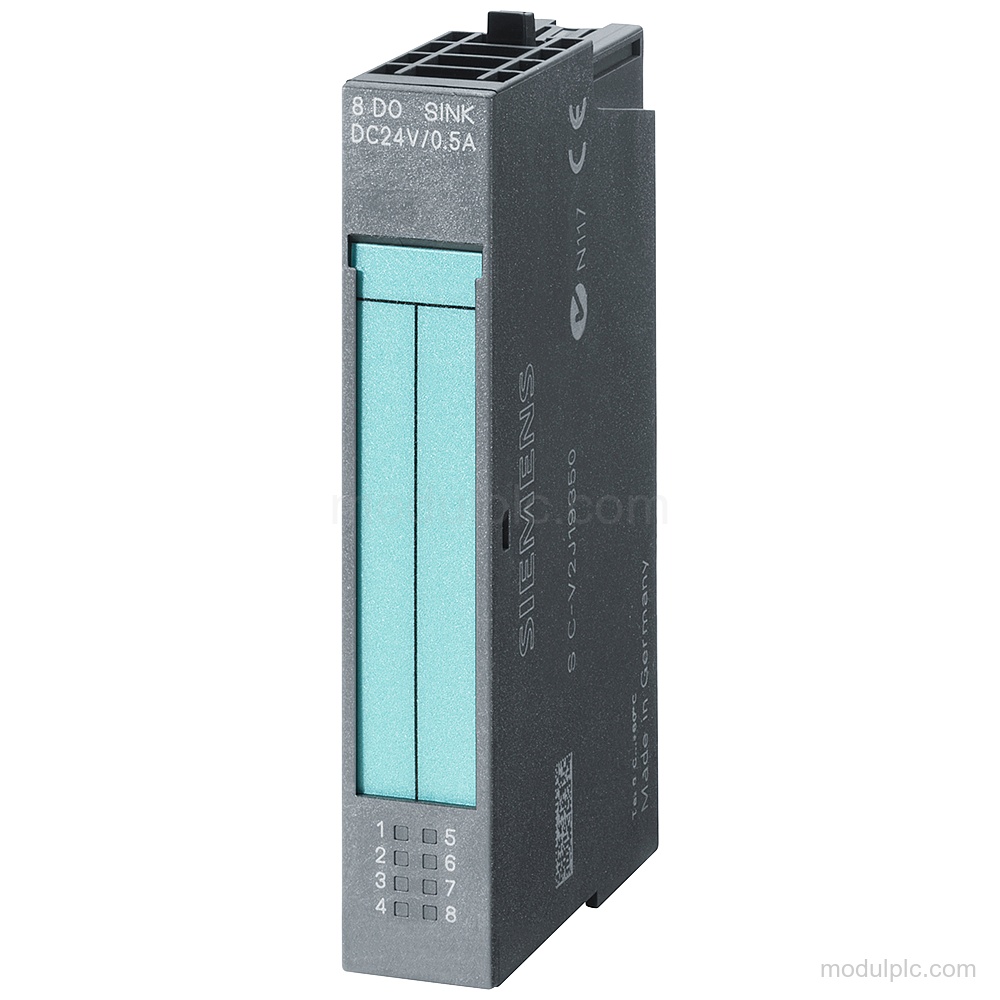

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Digital output type | Transistor |
| Number of digital outputs | 8 |
| Rated load voltage | 24 V DC; From power module |
| Rated output current for signal "1" | 0.5 A |
| Permissible output current for signal "1" | 5 mA to 600 mA |
| Output delay, "0" to "1" | 300 μs max.; with resistive load |
| Output delay, "1" to "0" | 600 μs max.; with resistive load |
| Short-circuit protection | Yes |
| Ambient temperature during operation | -25 °C to 70 °C |
Applications
- Digital output control: The module controls digital outputs and can control a digital input.
- Redundant load control: Two outputs can be switched in parallel for redundant control of a load, per module.
Key Features
- 8-channel transistor outputs: The module has 8 transistor digital outputs with short-circuit protection and green digital-output status LEDs.
- 24 V load voltage: Rated load voltage is 24 V DC, supplied from the power module.
- Output current: Rated output current for signal "1" is 0.5 A, with a permissible range of 5 mA to 600 mA.
- Output timing: Maximum output delay is 300 μs from "0" to "1" and 600 μs from "1" to "0" with a resistive load.
- Electrical separation: Digital outputs are not electrically separated between channels, but are separated from the backplane bus.
- Dimensions and weight: Dimensions are 15 mm wide, 81 mm high, and 52 mm deep; weight is approximately 40 g.
Frequently Asked Questions
1. How many digital outputs does 6AG1132-4BF50-7AA0 have?
It has 8 transistor digital outputs.
2. What load voltage does this module use?
The rated load voltage is 24 V DC, supplied from the power module.
3. What output current is supported for signal "1"?
The rated output current is 0.5 A, with a permissible range of 5 mA to 600 mA.
4. Does the module provide output diagnostics?
It has no diagnostics function, but it has a green digital-output status indicator LED.
