Product Overview
Technical Summary
| Parameter | Value |
|---|---|

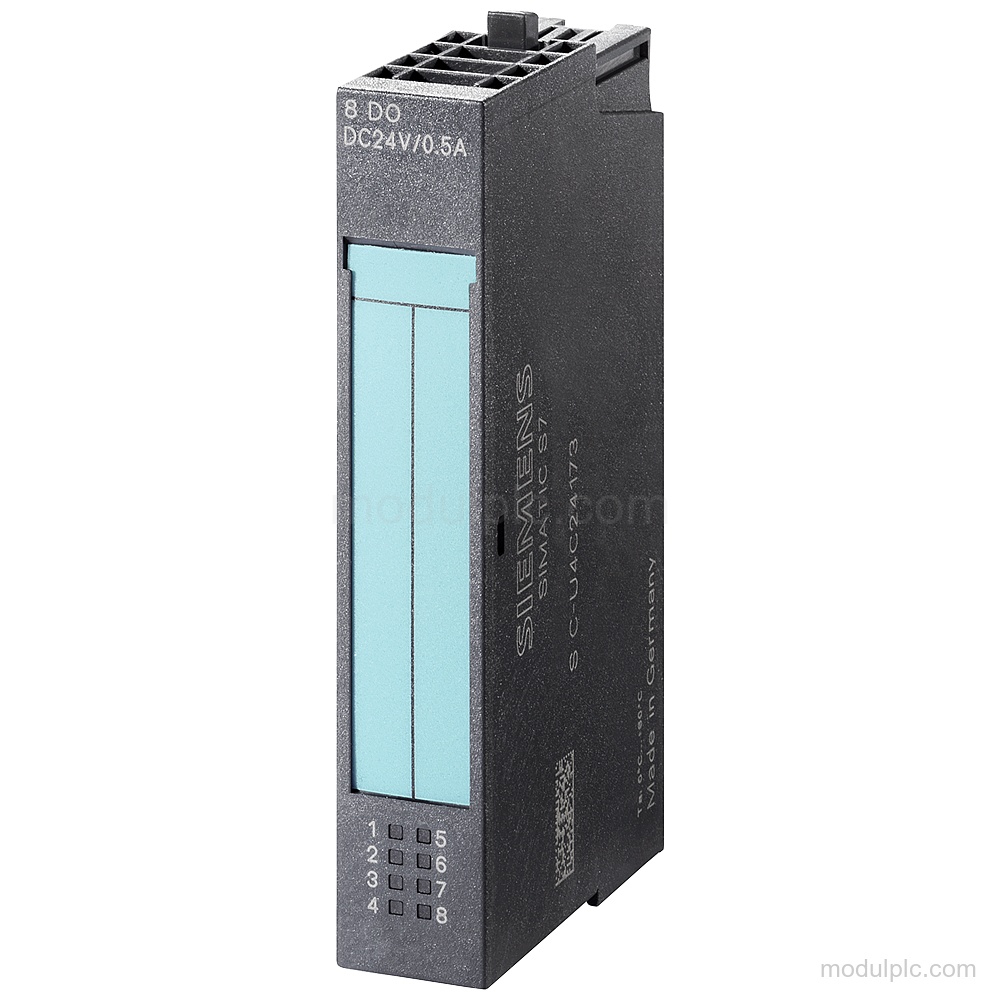

| Module type | SIPLUS ET 200S electronic module |
| Digital outputs | 8 transistor outputs |
| Load voltage | 24 V DC rated value |
| Rated output current | 0.5 A for signal "1" |
| Output current range | 7 mA to 600 mA for signal "1" |
| Maximum current per module | 4 A |
| Switching frequency | 100 Hz resistive; 2 Hz inductive; 10 Hz lamp load |
| Load resistance range | 48 Ω to 3 400 Ω |
| Output status indication | Green LED; yes |
| Channel isolation | No between channels; yes between channels and backplane bus |
| Operating ambient temperature | -40 °C to 70 °C |
Applications
- Digital input control: The digital outputs can control a digital input.
- Redundant load control: The module supports redundant control of a load.
Key Features
- Digital outputs: The module has 8 transistor digital outputs with short-circuit protection and a green digital-output status LED.
- Output electrical data: Rated output current for signal "1" is 0.5 A, with a permissible range from 7 mA to 600 mA. The rated load voltage is 24 V DC.
- Switching frequency: Maximum switching frequency is 100 Hz with resistive load, 2 Hz with inductive load, and 10 Hz on lamp load.
- Output current and load: Maximum current per module is 4 A. The load resistance range is 48 Ω to 3 400 Ω, and maximum lamp-load switching capacity is 5 W.
- Protection and isolation: The module has reverse voltage protection, reverse polarity protection, and short-circuit protection. Digital outputs are isolated from the backplane bus but not between channels.
- Dimensions and temperature: Width is 15 mm, height is 81 mm, and depth is 52 mm. Ambient temperature during operation is -40 °C to 70 °C.
Frequently Asked Questions
1. How many digital outputs does 6AG1132-4BF00-7AA0 have?
It has 8 transistor digital outputs.
2. What load voltage and output current does the module use?
The rated load voltage is 24 V DC. Rated output current for signal "1" is 0.5 A, with a permissible range from 7 mA to 600 mA.
3. What switching frequencies are supported?
The maximum switching frequency is 100 Hz with resistive load, 2 Hz with inductive load, and 10 Hz on lamp load.
4. Are the digital outputs isolated?
The digital outputs are not isolated between channels. They are isolated between the channels and the backplane bus.
5. What should be verified before requesting a quote?
Verify the 15 mm width, 24 V DC load voltage, 8 transistor outputs, 4 A maximum current per module, and required load type.
