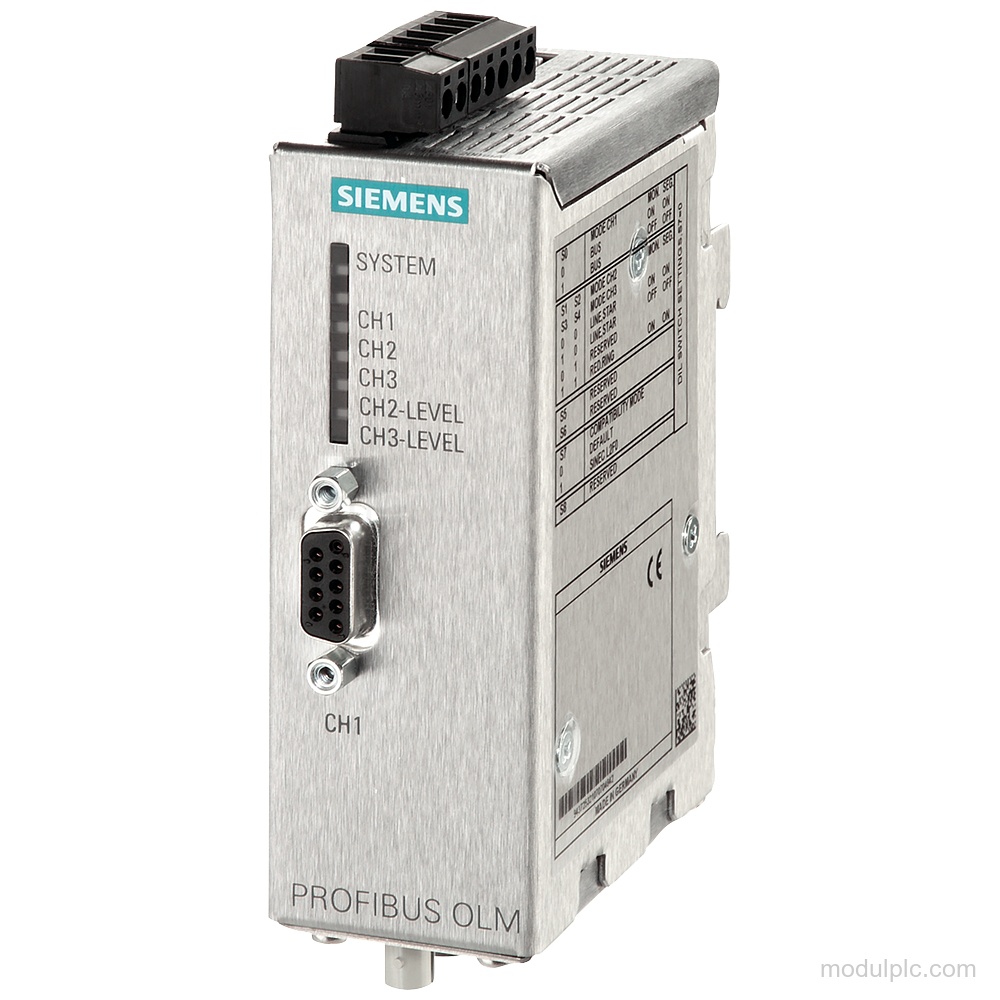

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | OLM/G11 V4.0 |
| PROFIBUS transfer rate | 9.6 kbit/s … 12 Mbit/s |
| PROFIBUS PA transfer rate | 45.45 kbit/s |
| Electrical network connection | 1 × 9-pin Sub-D socket |
| Optical interface | 1 × BFOC port, 860 nm, multimode |
| Rated supply voltage | 24 V DC |
| Supply voltage range | 18.8 … 28.8 V |
| Maximum consumed current | 0.2 A at 24 V DC |
| Mounting | 35 mm DIN-rail mounting; wall mounting |
| Protection class | IP40 |
Key Features
- PROFIBUS transfer rate: Transfer rate with PROFIBUS: 9.6 kbit/s … 12 Mbit/s; with PROFIBUS PA: 45.45 kbit/s.
- Electrical connections: The module has 1 electrical connection for network components or terminal equipment: a 9-pin Sub-D socket.
- Optical interface: It has 1 optical interface for fiber optic cable, designed as a BFOC port; wavelength: 860 nm, multimode.
- Fiber optic cable length: Maximum wire length is 3 km for glass FOC with 50/125 μm at 3 dB/km and for glass FOC with 62.5/125 μm at 3.5 dB/km.
- Supply and consumption: Supply voltage is 24 V DC rated, with a supply range of 18.8 … 28.8 V and maximum consumed current of 0.2 A at 24 V DC.
- Mounting and protection: The compact module supports 35 mm DIN-rail mounting and wall mounting. Protection class: IP40; equipped printed circuit board: conformal coating, class A.
Frequently Asked Questions
1. Which transfer rates does the Siemens 6AG1503-2CB00-2AA0 support?
It supports 9.6 kbit/s … 12 Mbit/s with PROFIBUS and 45.45 kbit/s with PROFIBUS PA.
2. Which network connector does the OLM/G11 V4.0 have?
It has 1 electrical connection for network components or terminal equipment: a 9-pin Sub-D socket.
3. Which optical interface is provided?
The module has 1 optical interface for fiber optic cable, designed as a BFOC port, with 860 nm multimode wavelength.
4. What supply voltage does this module use?
The rated supply voltage is 24 V DC, with a supply range of 18.8 … 28.8 V.
5. How can the module be mounted?
It supports 35 mm DIN-rail mounting and wall mounting.
