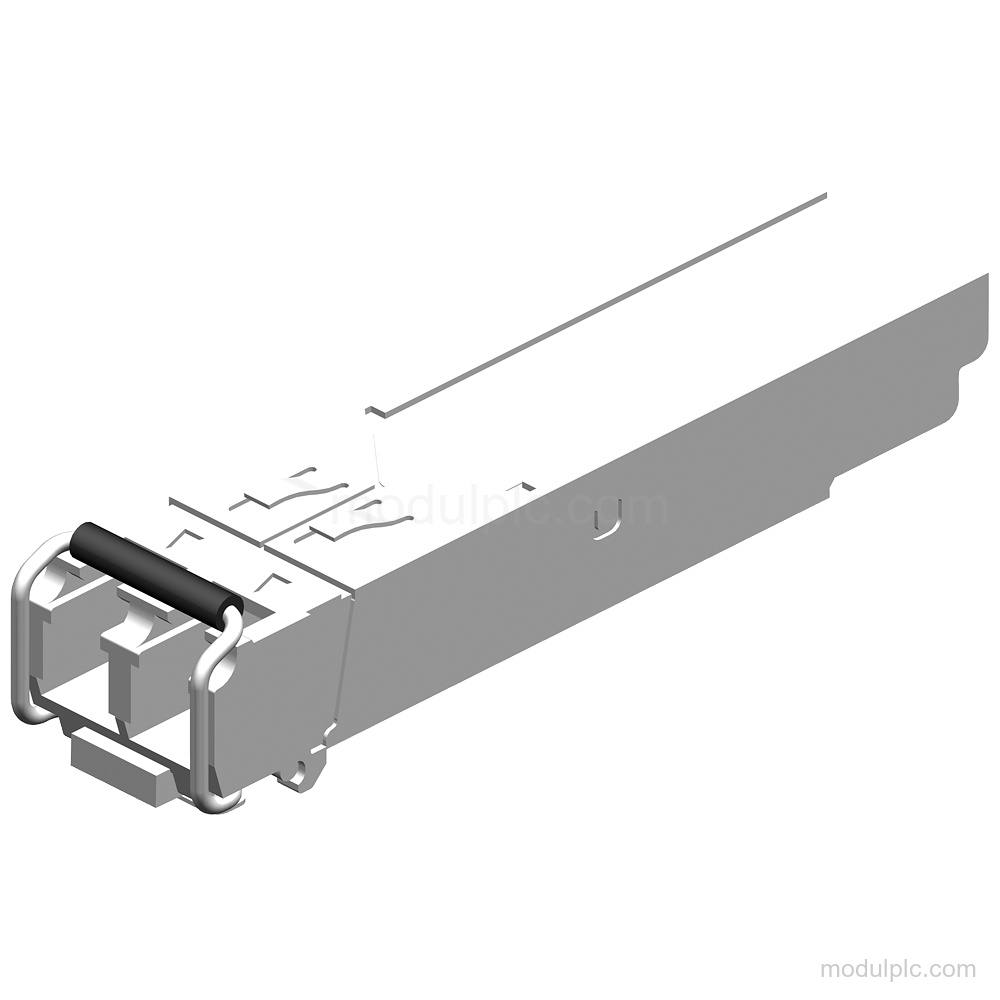

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | Synchronization module |
| System context | SIPLUS S7-1500 |
| Based on | 6ES7960-1CB00-0AA5 |
| Optical connection | LC |
| Optical wavelength | 850 nm |
| Optical range | 1 m to 200 m, depending on the optical fiber used |
| Typical power loss | 0.77 W |
| Horizontal installation temperature | 0 °C to 60 °C |
| Vertical installation temperature | 0 °C to 40 °C |
Applications
- System synchronization: Provides synchronization as a synchronization submodule.
Key Features
- Synchronization module: Product type designation: Synchronization module.
- Optical interface: Optical interface: Yes; optical connection design: LC; wavelength: 850 nm.
- Optical range: Range depending on the optical fiber used: 1 m to 200 m.
- Power loss: Typical power loss: 0.77 W.
- Operating temperature: 0 °C to 60 °C for horizontal installation and 0 °C to 40 °C for vertical installation.
- Conformal coating: Conformal coating according to EN 61086: Class 2 for high reliability; Type 1 protection against fouling.
Frequently Asked Questions
1. What is the function of the Siemens 6AG1960-1CB00-4AA5?
It is a SIPLUS S7-1500 synchronization submodule.
2. What optical interface does this synchronization module have?
It has an optical LC interface with an 850 nm wavelength.
3. What optical range does the module support?
The range is 1 m to 200 m, depending on the optical fiber used.
4. What operating temperature applies to installation?
The range is 0 °C to 60 °C for horizontal installation and 0 °C to 40 °C for vertical installation.
5. What should be checked for unused interfaces?
The supplied plug covers must remain in place over the unused interfaces during operation.
