Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | Server module |
| Based on | 6ES7193-6PA00-0AA0 |
| Current consumption, max. | 30 mA |
| Mounting | Mounting rail 7.5 mm and 15 mm |
| Ambient temperature during operation | -40 °C to 70 °C |
| Vertical installation, maximum ambient temperature | 50 °C |
| Installation altitude above sea level, max. | 5 000 m |
| Conformal coating | Class 2 for high reliability according to EN 61086 |
Applications
- ET 200SP server and termination: Provides the server/termination module function for the SIPLUS ET 200SP system.
Key Features
- Server/termination module: SIPLUS ET 200SP server/termination module based on 6ES7193-6PA00-0AA0.
- Conformal coating: Conformal coating for printed circuit board assemblies according to EN 61086, Class 2 for high reliability.
- Maximum current consumption: Current consumption, max.: 30 mA.
- Rail mounting: Mounting: mounting rail 7.5 mm and 15 mm.
- Operating temperature: Ambient temperature during operation: -40 °C to 70 °C.

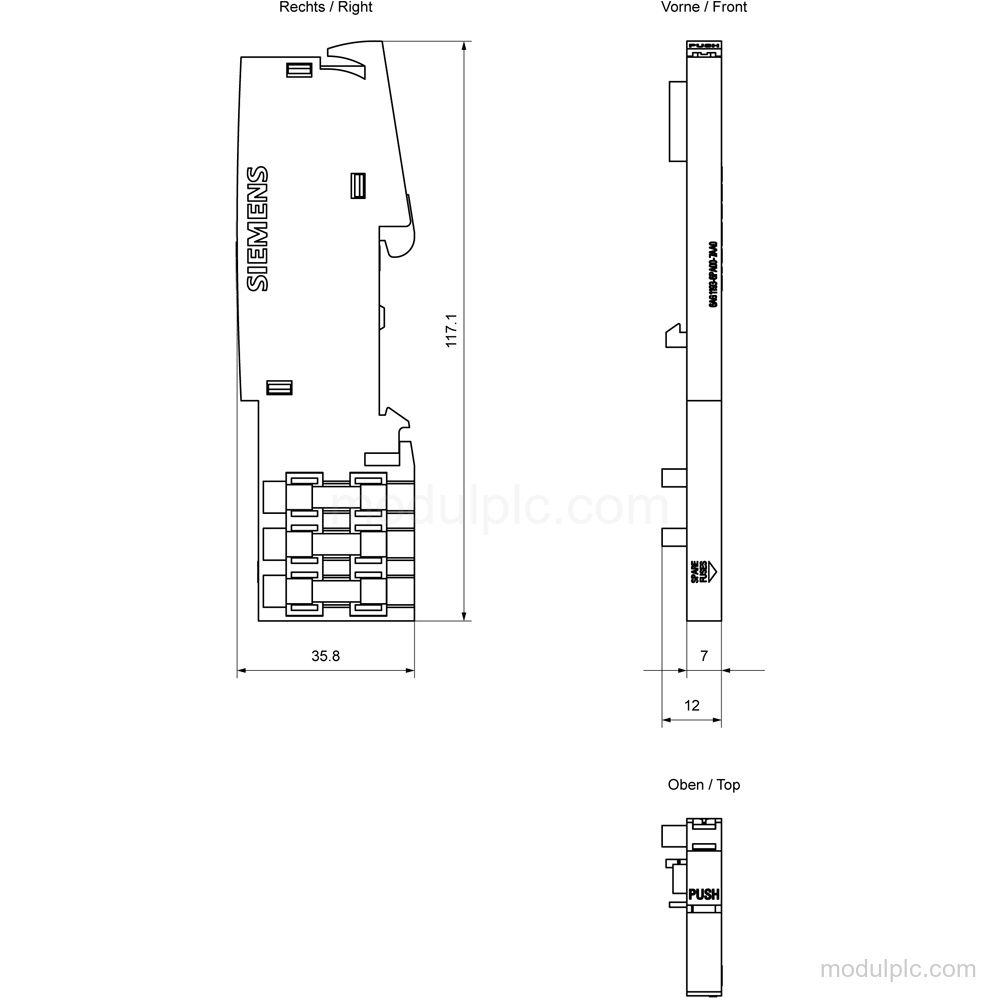

- Compact dimensions: Dimensions: 7 mm width, 117 mm height, and 36 mm depth; weight, approx. 19 g.
Frequently Asked Questions
1. What is the function of the 6AG1193-6PA00-7AA0?
It is a SIPLUS ET 200SP server/termination module based on 6ES7193-6PA00-0AA0.
2. What is the maximum current consumption?
The maximum current consumption is 30 mA.
3. Which mounting rails are supported?
Mounting is for 7.5 mm and 15 mm mounting rails.
4. What operating temperature range is specified?
The ambient temperature during operation is -40 °C to 70 °C. For vertical installation, the maximum is 50 °C.
5. What should be verified before requesting a quote?
Verify the exact model, mounting rail size, installation orientation, and required environmental conditions.
