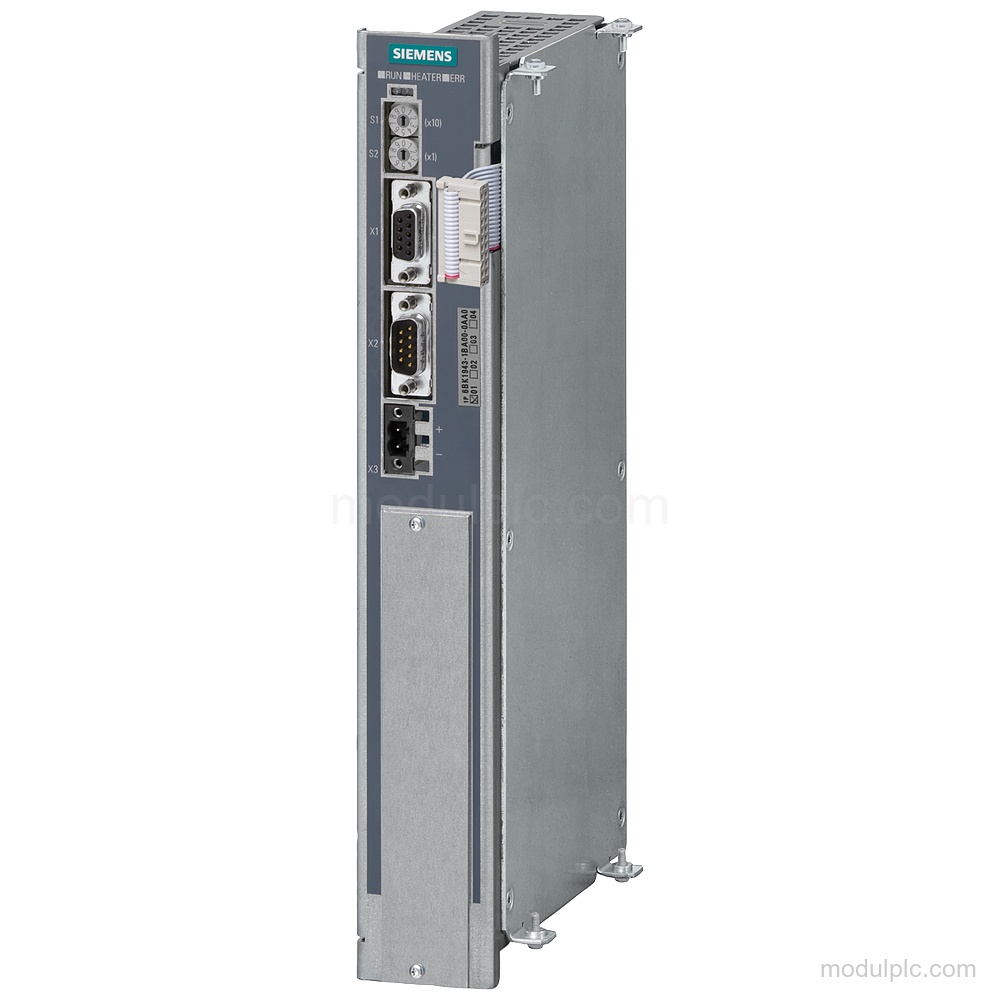

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | CIM4310 central interface module |
| PROFIBUS DP transmission rate, max. | 12 Mbit/s |
| PROFIBUS DP connection | 9-pin sub D socket |
| Rated supply voltage | 24 V DC |
| Power-output slots | 1 slot for POM4320 |
| Active power input | 3 W |
| Mounting | Screw mounting to POM, vertical |
| Protection | IP20 |
Applications
- PROFIBUS DP communication: Provides the central interface for PROFIBUS DP communication in the SIPLUS HCS4300 CIM4310 configuration.
Key Features
- PROFIBUS DP communication: Supports PROFIBUS DP with a maximum transmission rate of 12 Mbit/s; PROFINET IO and EtherNet/IP are not supported.
- 24 V DC supply: Rated supply voltage is 24 V DC with a relative symmetrical tolerance of 20 %.

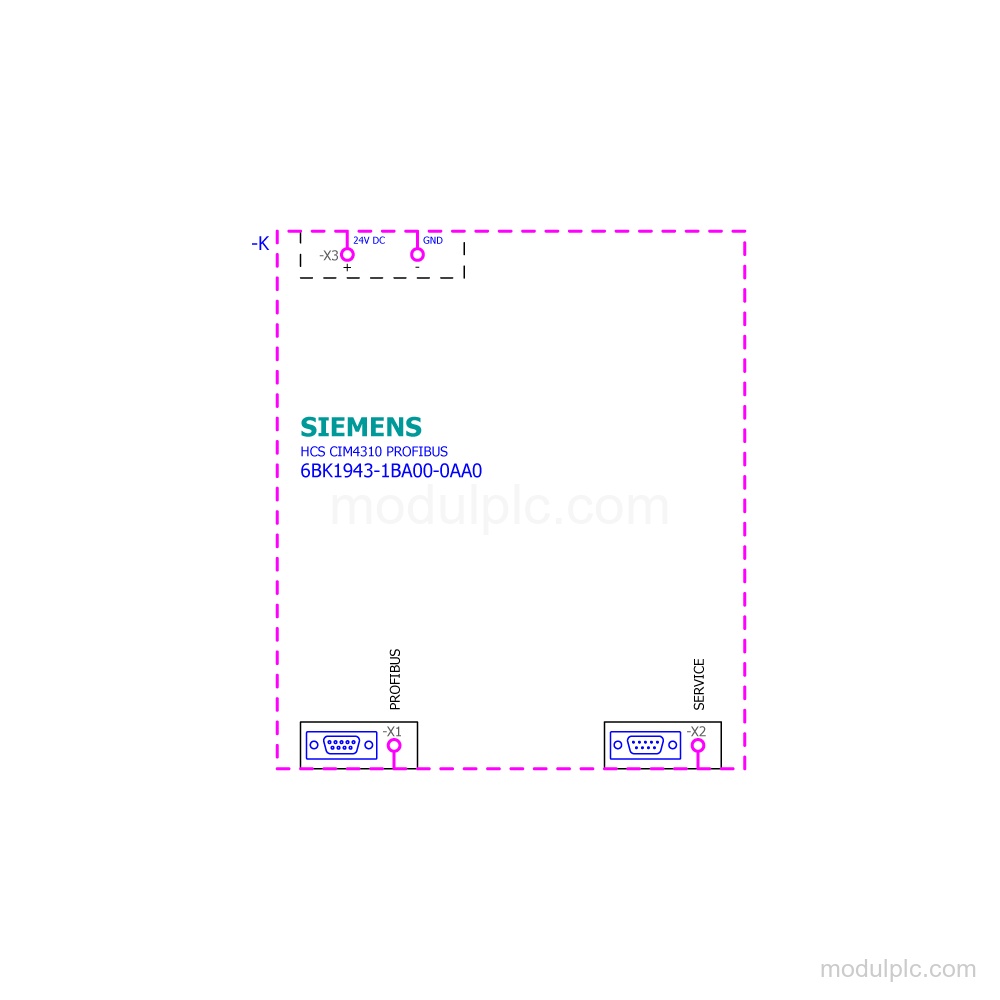

- Communication connection: PROFIBUS DP connection uses a 9-pin sub D socket.
- Power-output slot: One slot is available, and the connectable power-output type is POM4320.
- Supply connection: The supply connection is a plug, 2x 2-pole with spring-type terminal, push-in.
- Installation and status: The module uses screw mounting to POM in a vertical position with forced ventilation and has 3 status displays: green ready, yellow heating on/off, and red error display.
Frequently Asked Questions
1. Which communication protocol does 6BK1943-1BA00-0AA0 support?
It supports PROFIBUS DP. PROFINET IO and EtherNet/IP are not supported.
2. What is the maximum PROFIBUS DP transmission rate?
The maximum transmission rate is 12 Mbit/s.
3. What supply voltage does the module require?
The rated supply voltage is 24 V DC with a relative symmetrical tolerance of 20 %.
4. What connector is used for PROFIBUS DP?
The PROFIBUS DP connection uses a 9-pin sub D socket.
5. How is the module mounted and ventilated?
It uses screw mounting to POM, is installed vertically, and has forced ventilation.
