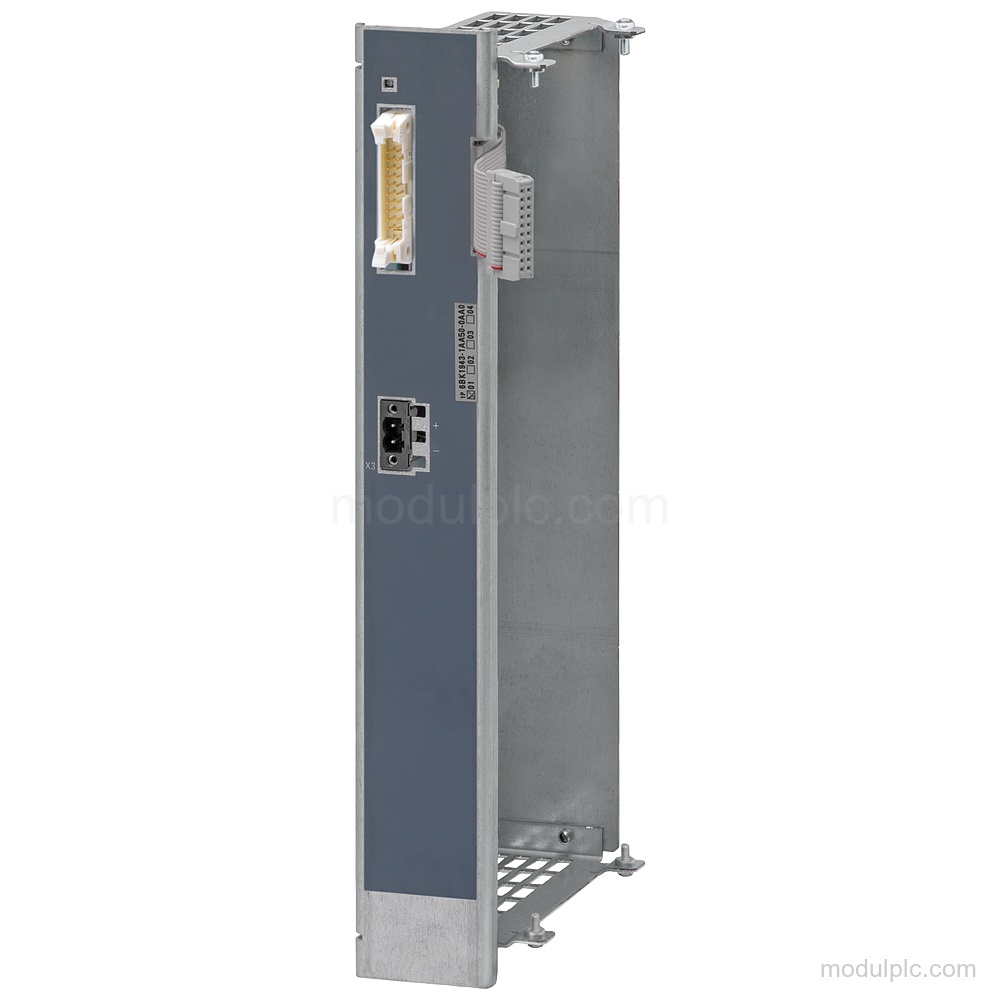

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | SIPLUS HCS4300 EM4315 spare module |
| Supply voltage | 24 V DC, relative symmetrical tolerance 20 % |
| Interface | system interface |
| Supply connection | plug, 2x 2-pole with spring-type terminal, push-in |
| Mounting type | Screw mounting to POM |
| Mounting position | vertical |
| Ventilation | Forced ventilation |
| Active power input | 1 W |
| Connectable power output type | POM4320 |
| Status display | 1; LED green = ready |
| Protection | IP20 |
Applications
- HCS4300 configuration expansion: Adding the EM4315 spare module to an HCS4300 configuration.
Key Features
- Product type: SIPLUS HCS4300 EM4315 spare module for adding to an HCS4300 configuration.
- Supply voltage: DC supply, rated value 24 V, with a relative symmetrical tolerance of 20 %.
- Mounting and ventilation: Screw mounting to POM in a vertical mounting position with forced ventilation.
- Supply connection: Plug connection, 2x 2-pole with spring-type terminal, push-in.
- Status display: 1 status display; green LED indicates ready.
- Protection: IP20 degree of protection.
Frequently Asked Questions
1. What is the Siemens 6BK1943-1AA50-0AA0?
It is a SIPLUS HCS4300 EM4315 spare module for adding to an HCS4300 configuration.
2. What supply does the EM4315 module use?
It uses a 24 V DC supply with a relative symmetrical tolerance of 20 %.
3. How is the module mounted?
It uses screw mounting to POM, with a vertical mounting position and forced ventilation.
4. What connection is provided for the supply voltage?
The supply connection is a plug, 2x 2-pole with spring-type terminal, push-in.
5. What should be verified before inquiry?
Verify the EM4315 type, 24 V DC supply, POM4320 connectable power output type, and IP20 protection.
